Date of Design

2007

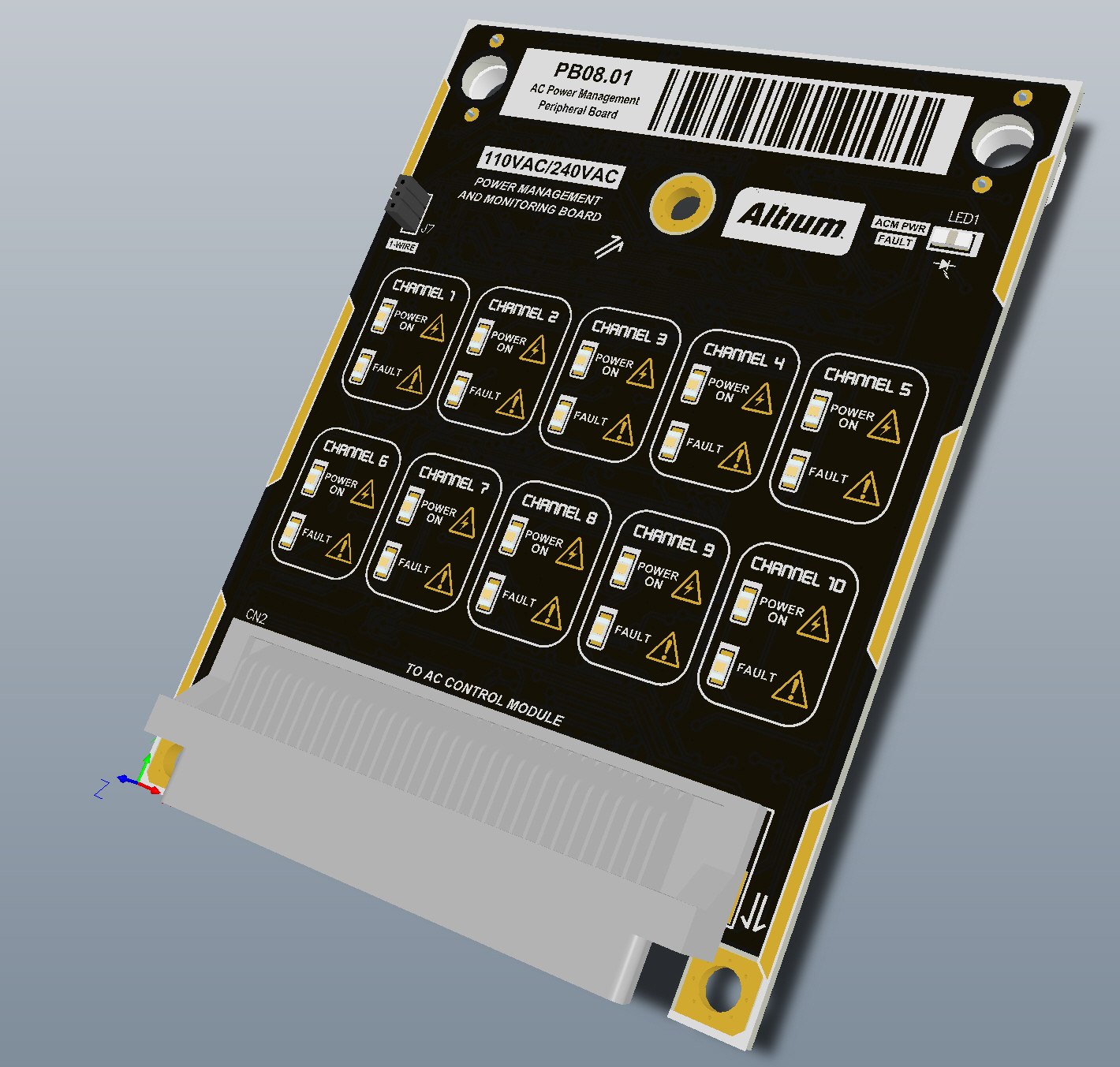

Product

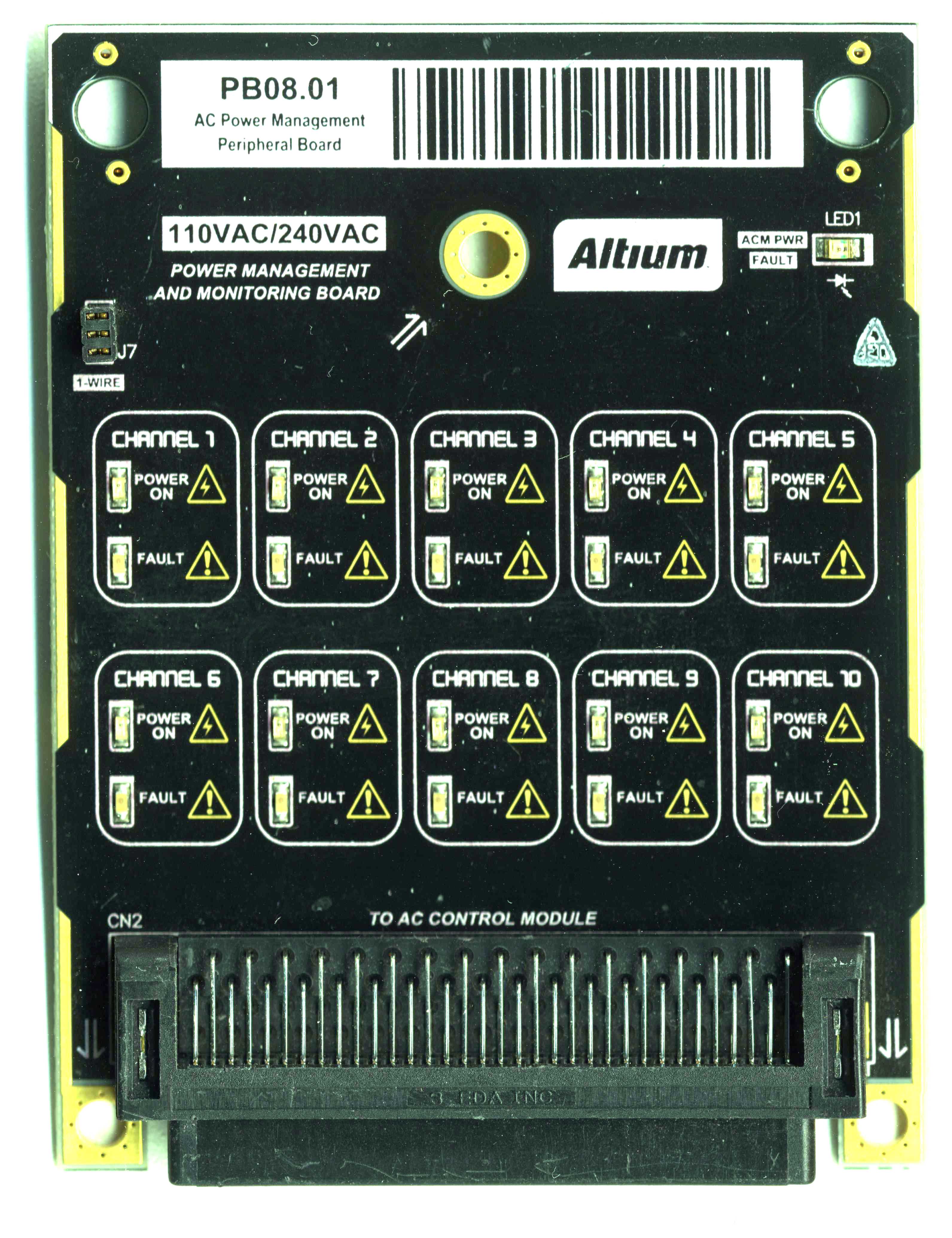

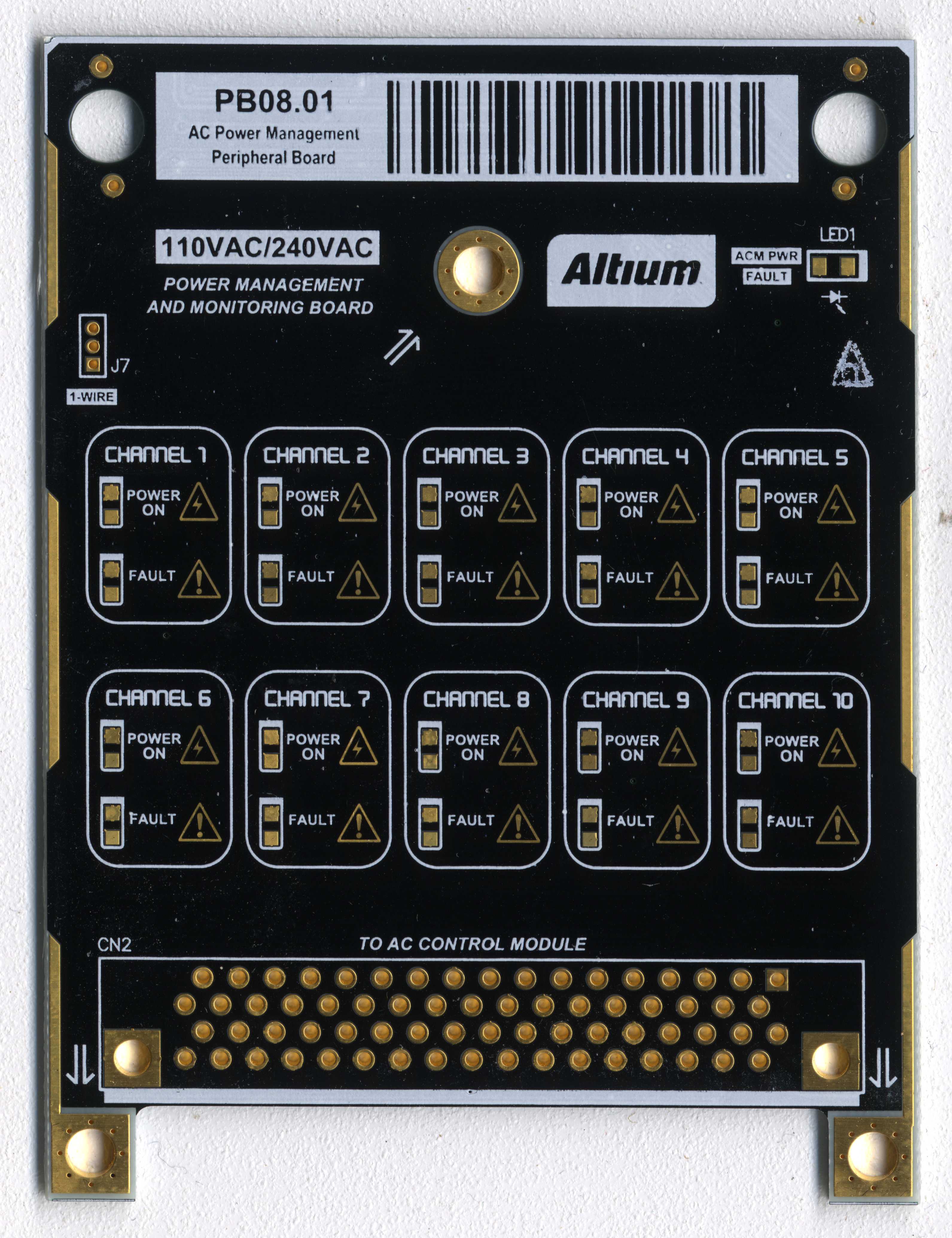

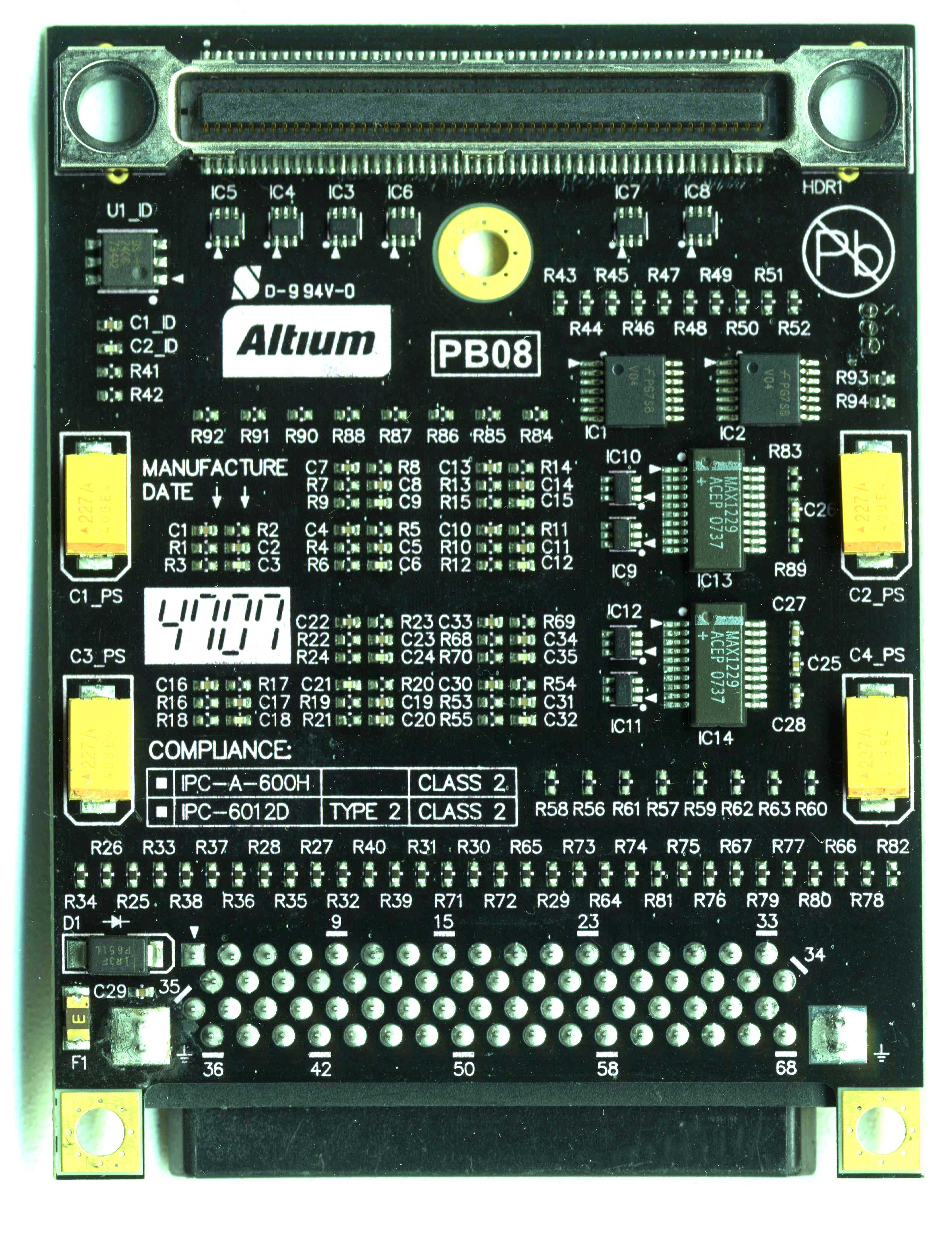

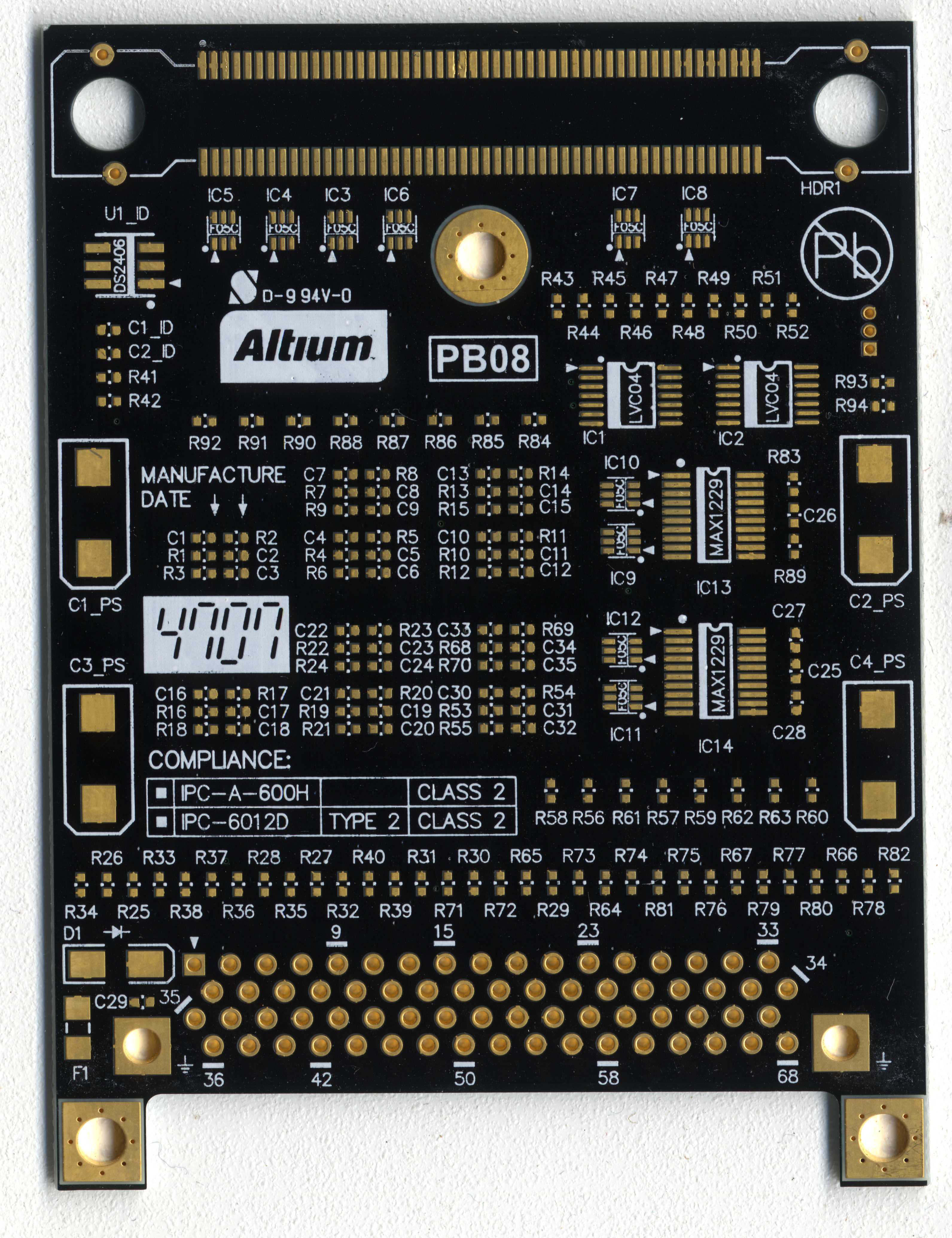

AC Power Manager

Assembly ID

PB08

Company

ALTIUM

Function

Monitor and Control HVAC 110/240vAC

Primary Device

None (Discretes)

Technology

5 track/5 space/28 via

PCB Build Specification

2 Layer, 1/2oz, MASK, ENIG, FR4

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

Speedy Circuits (TAIWAN)

CAD Application

Altium Designer 6.8

Prototype Availability

Yes
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2007

manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
