Date of Design

2006

Product

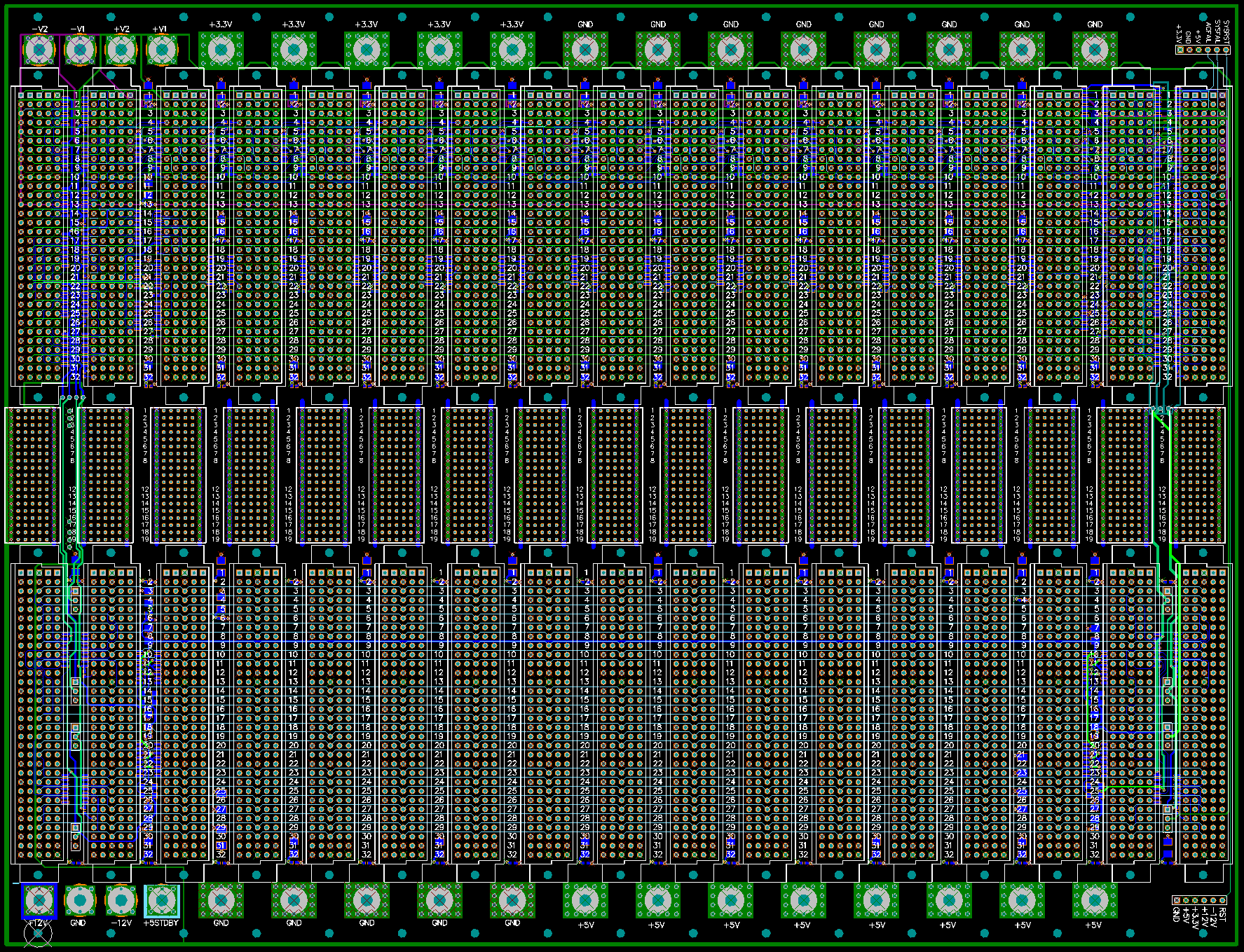

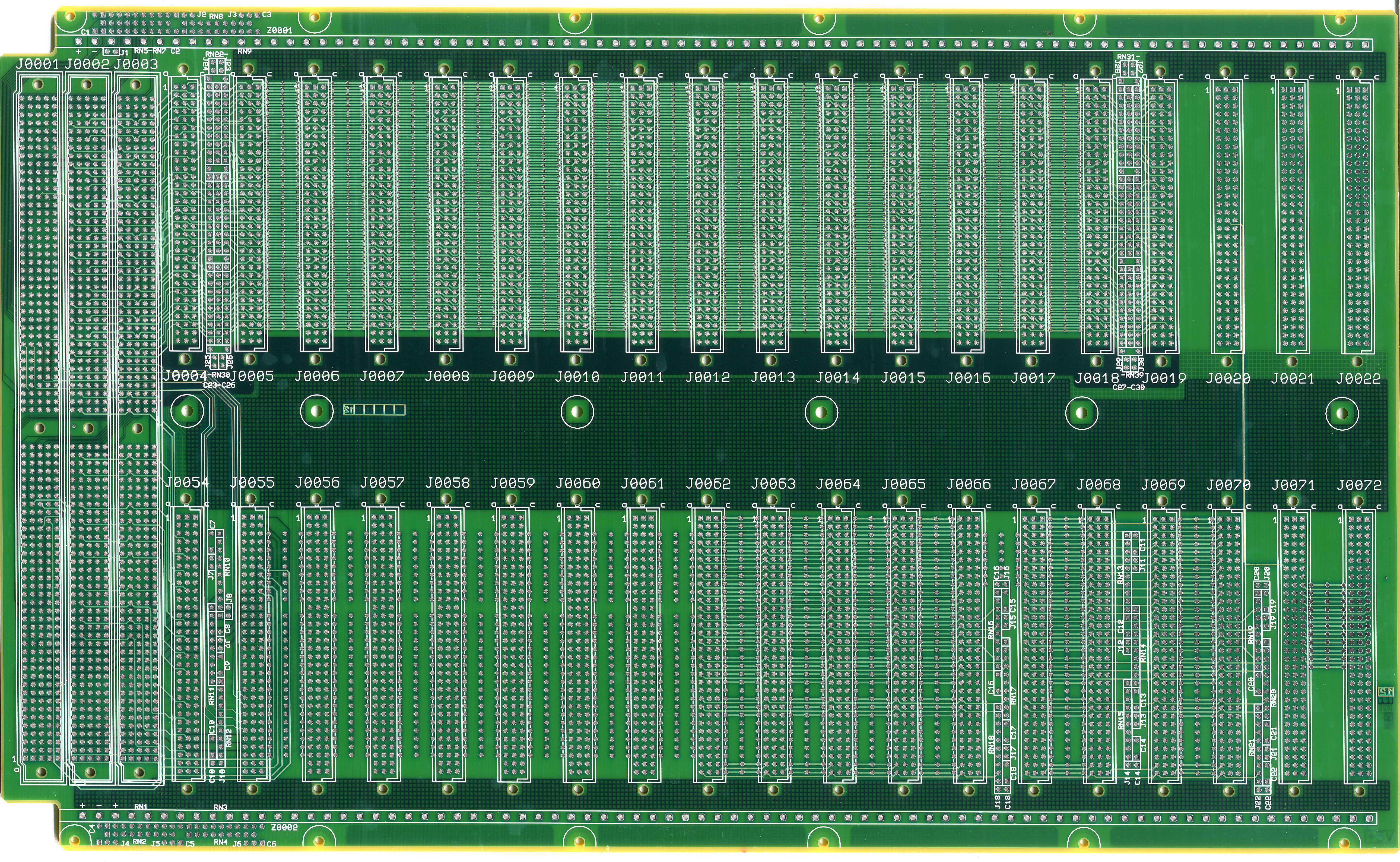

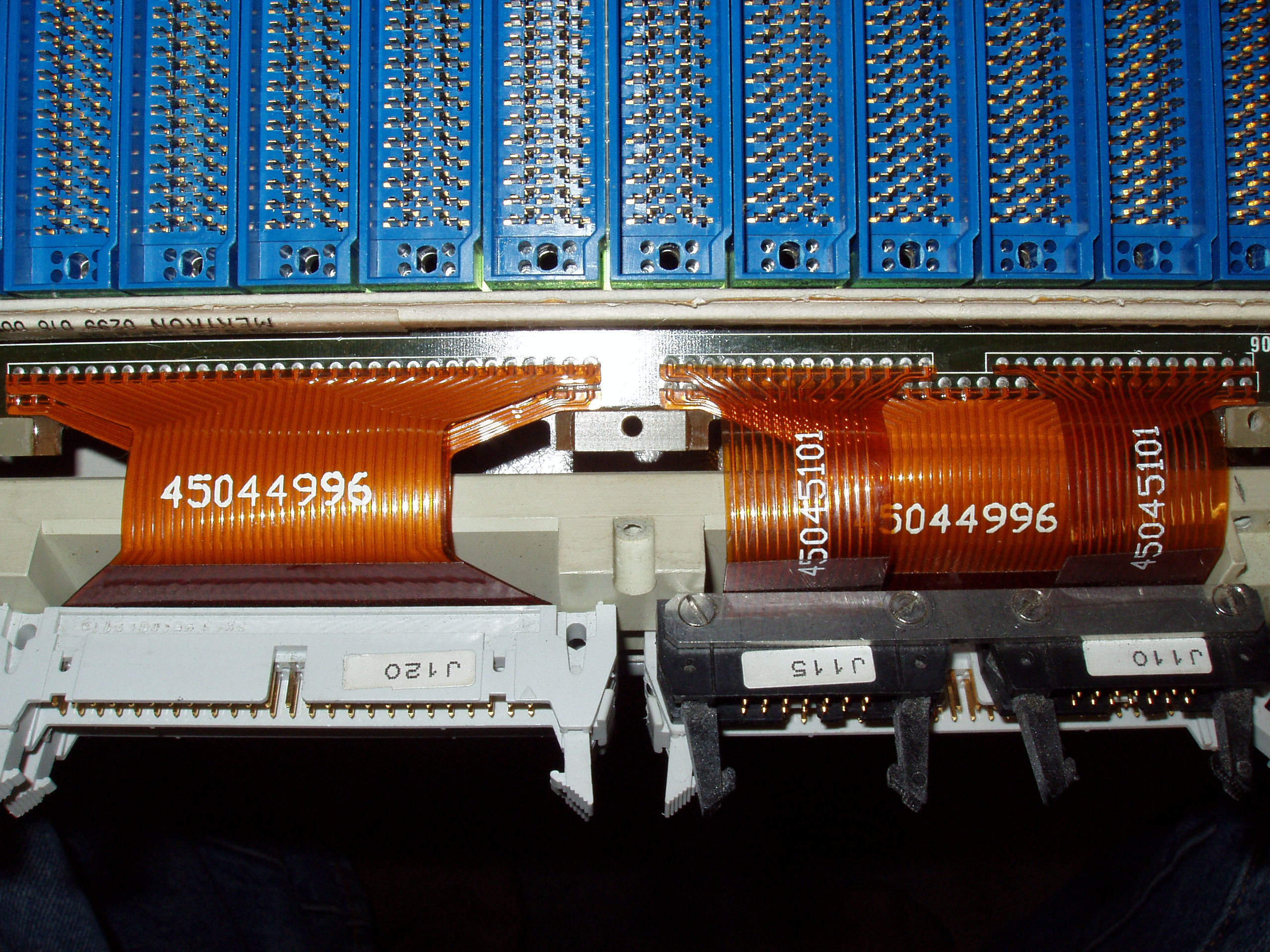

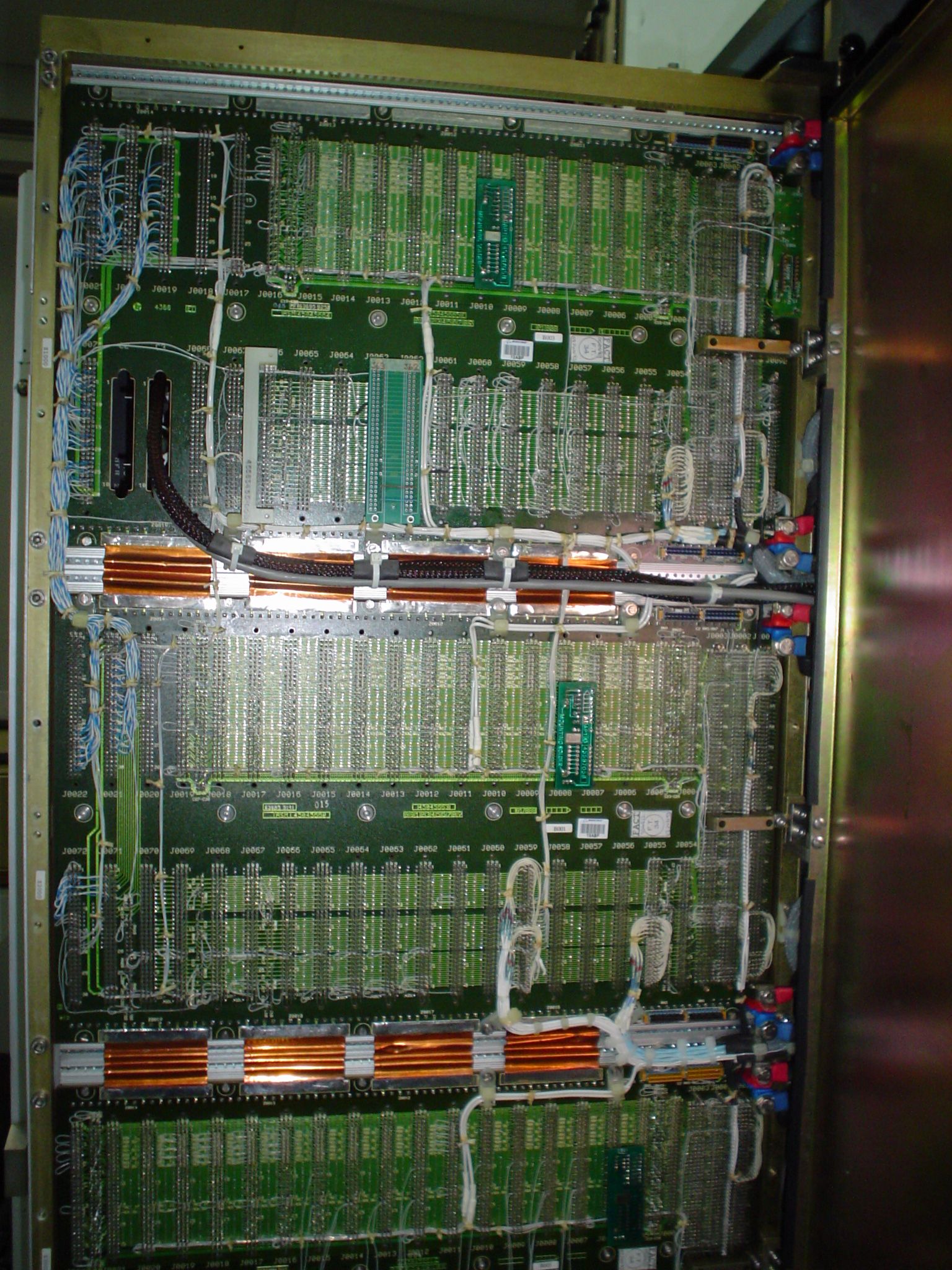

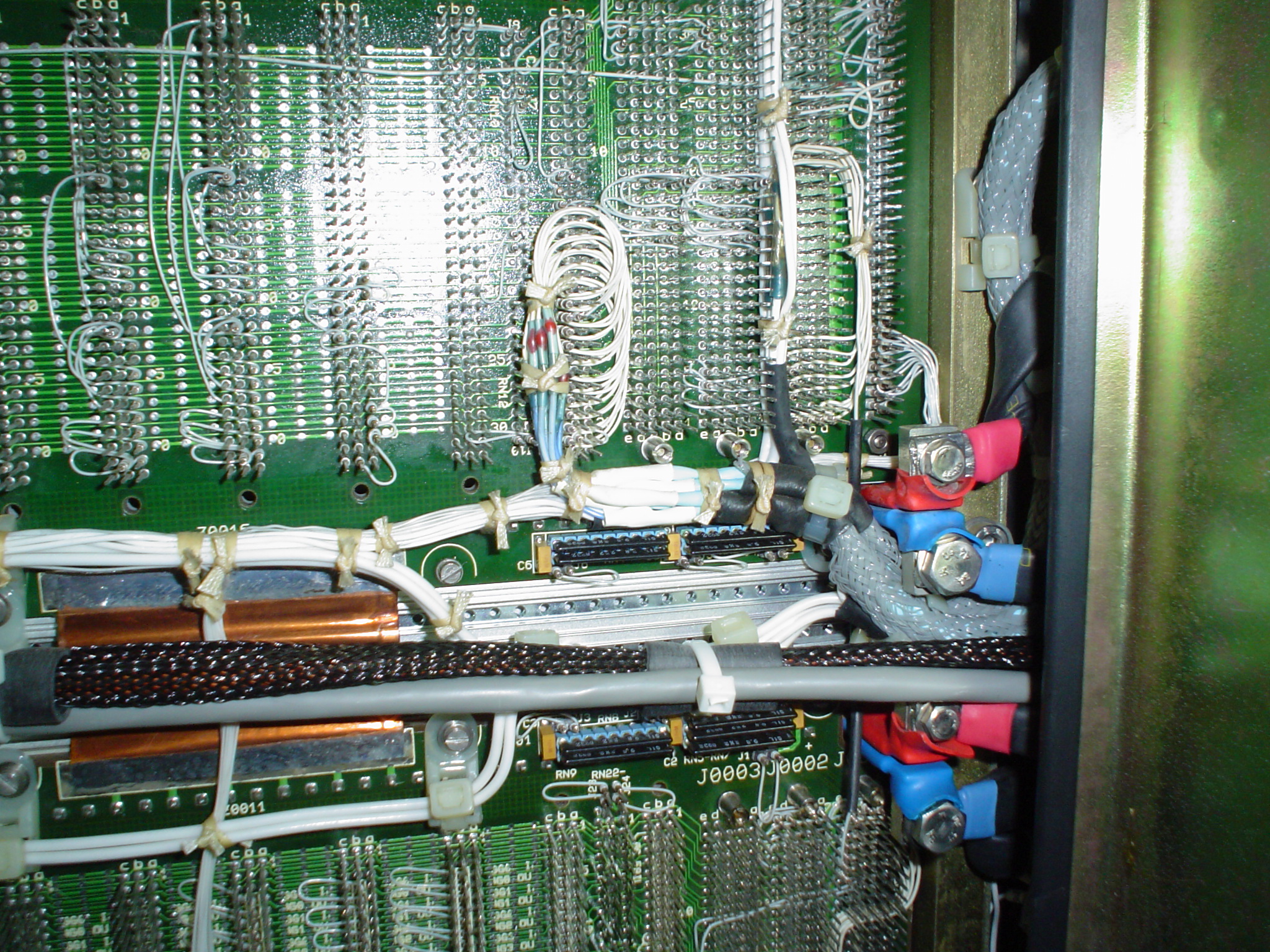

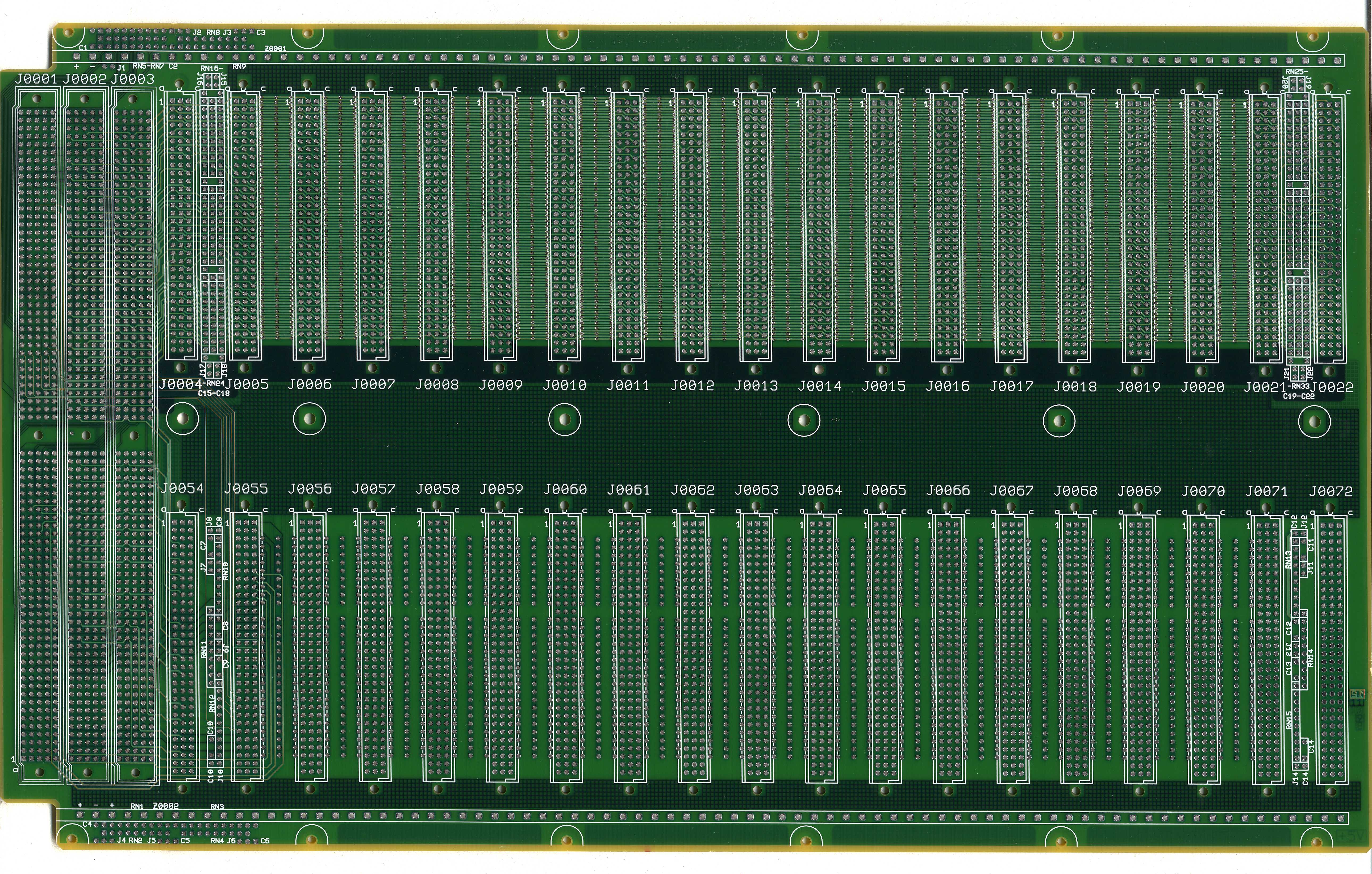

Scylla System Backplanes

Assembly ID

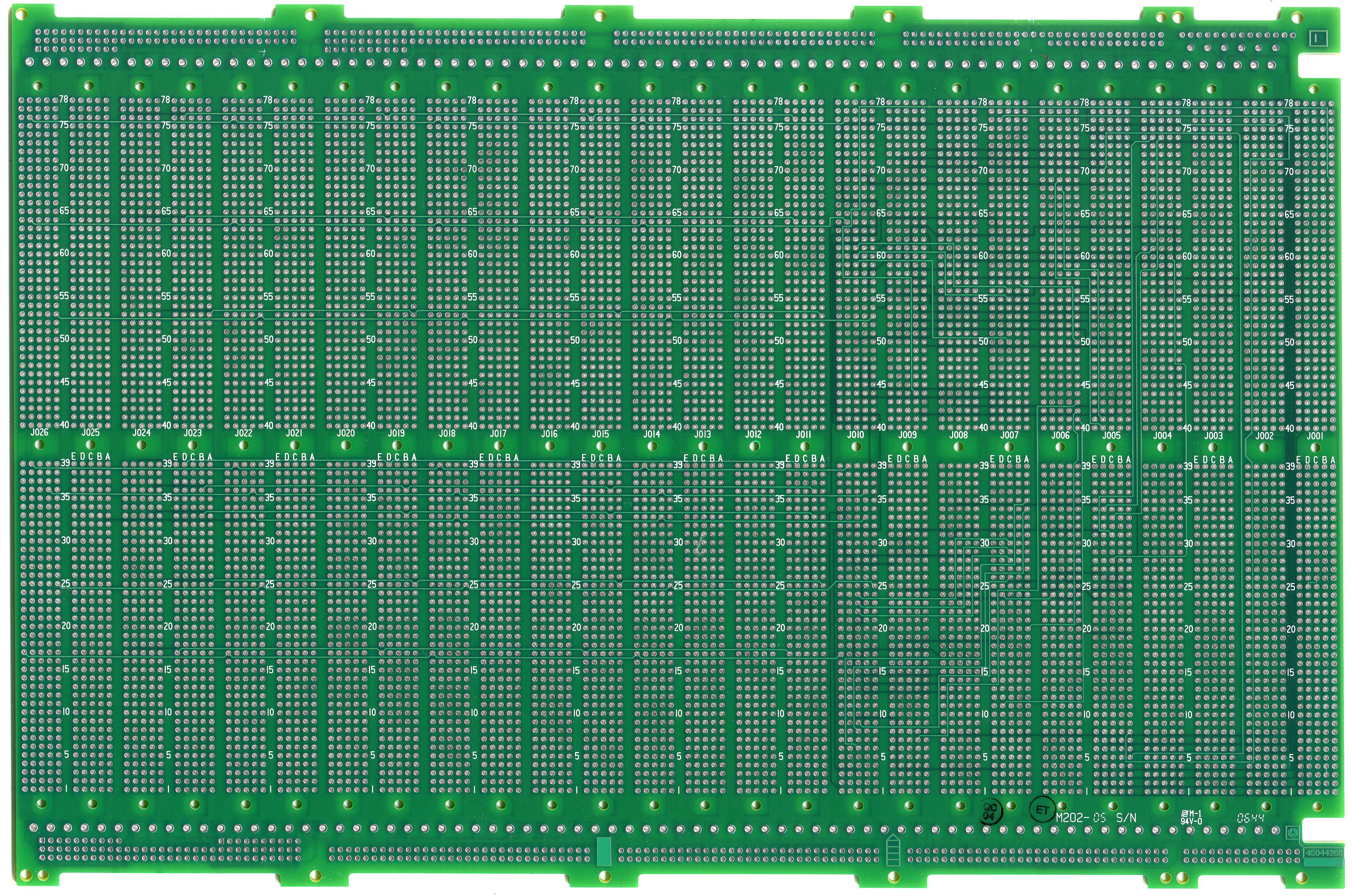

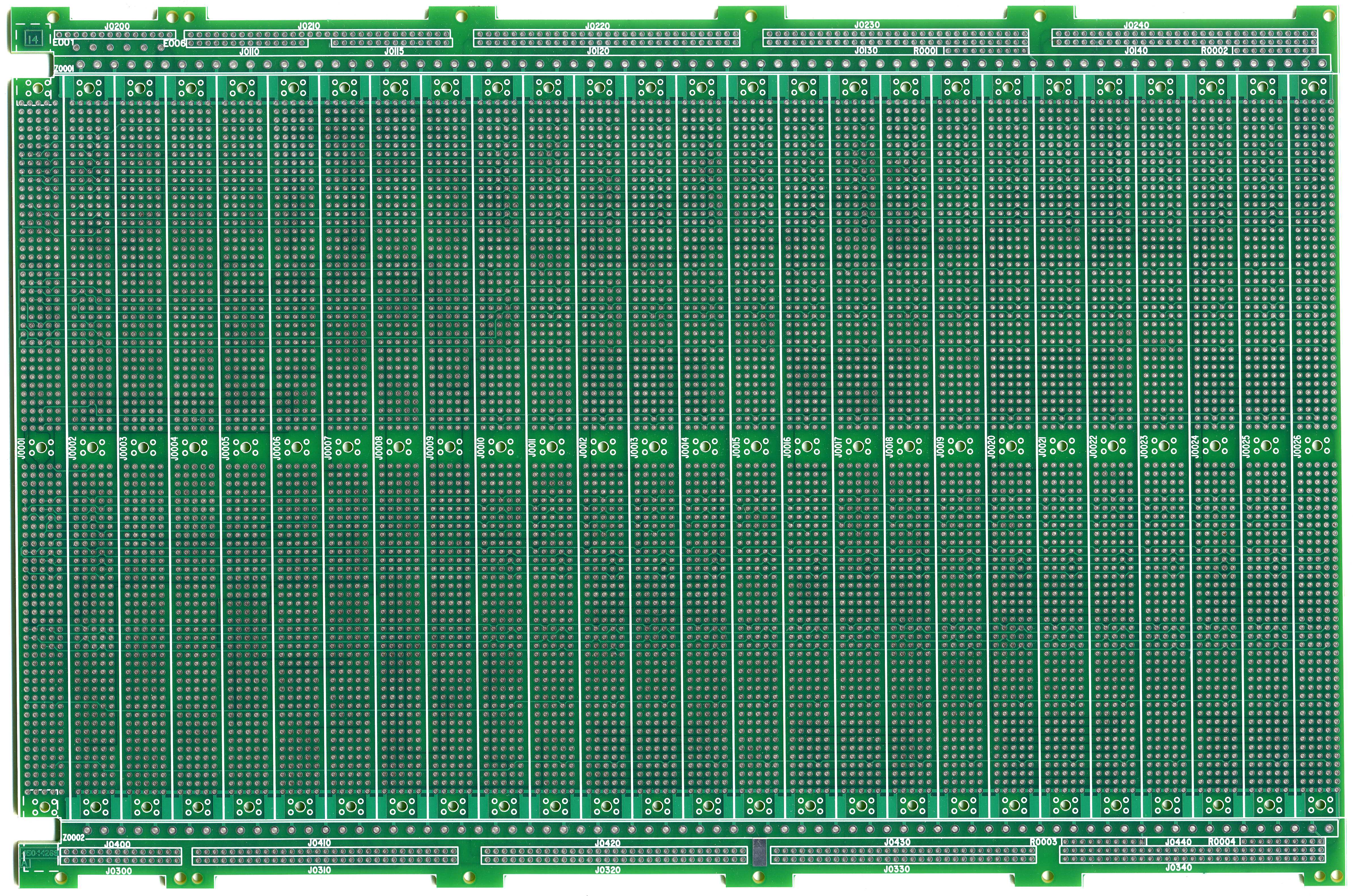

45044268 - INDUS
45045660 - SP2MB1

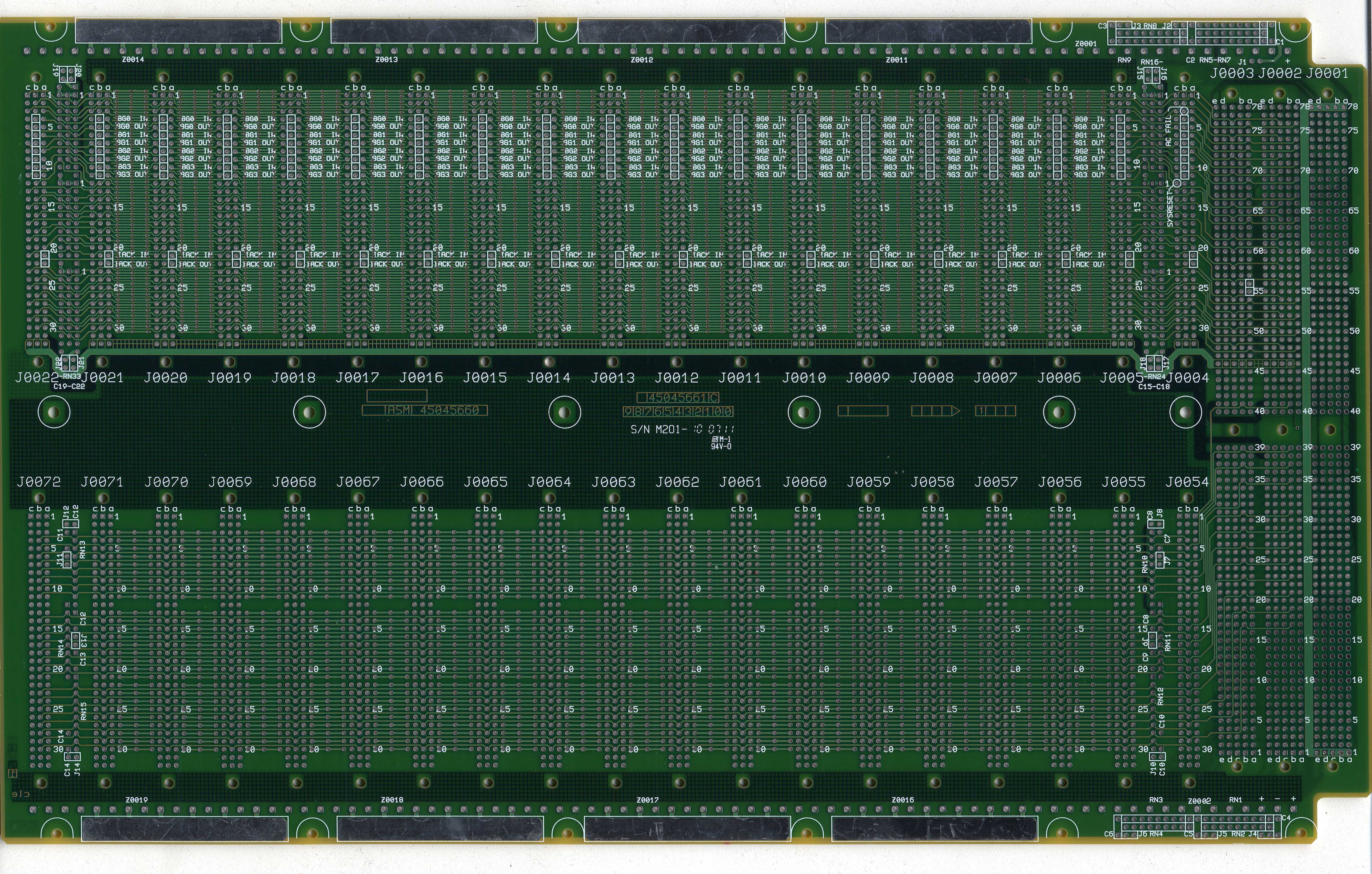

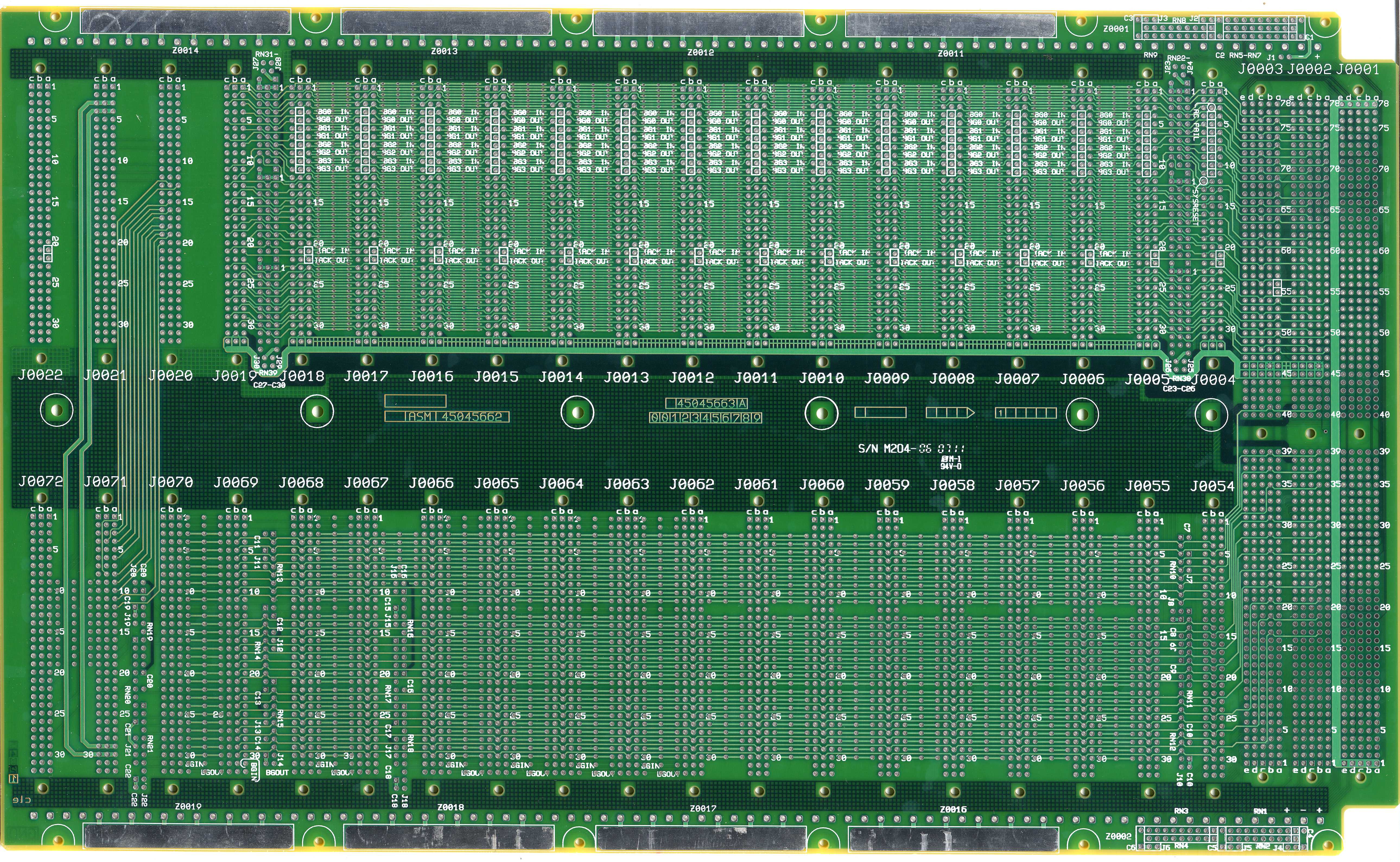

45045662 - SP2MB2

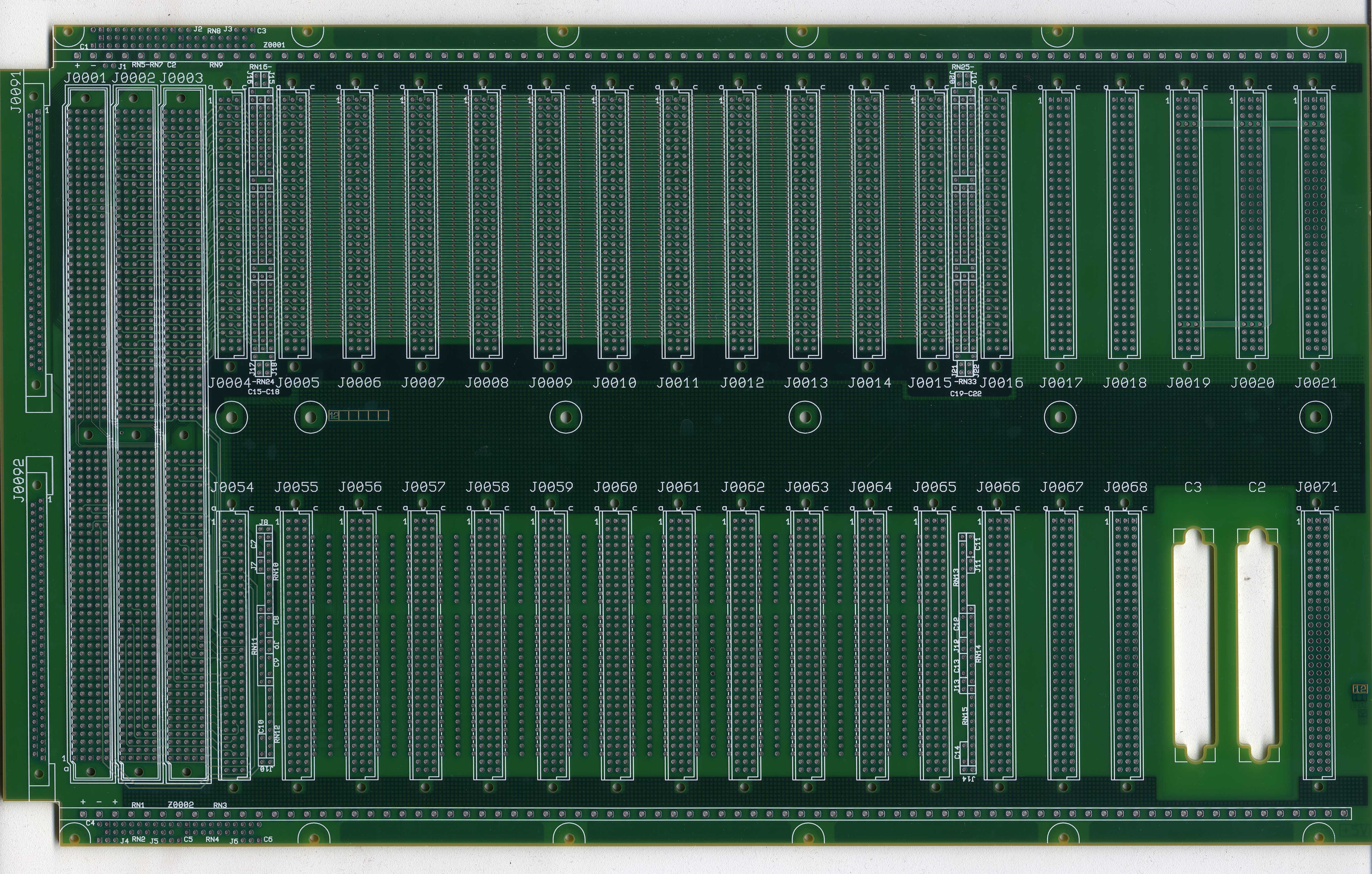

45045664 - SP2MB3

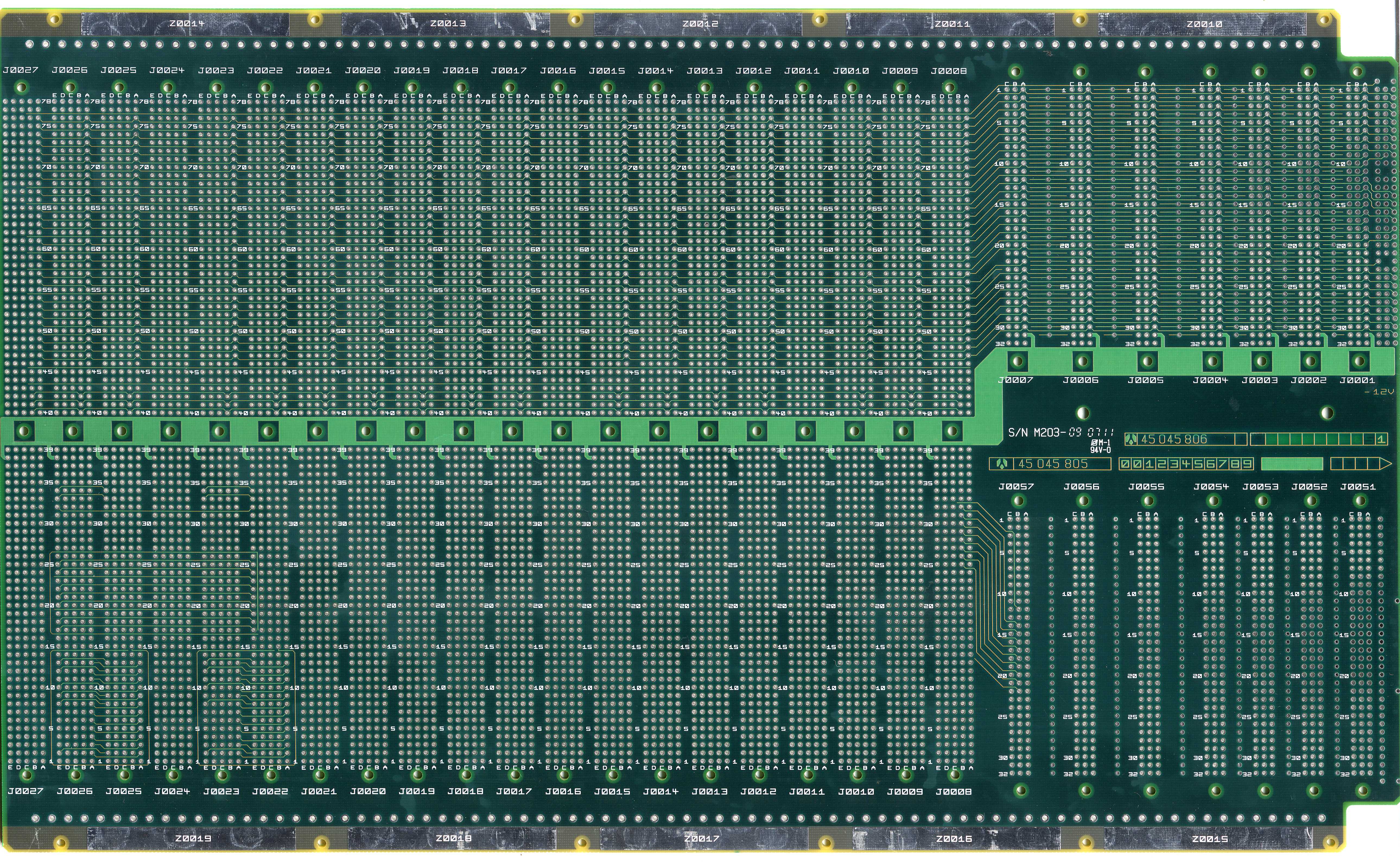

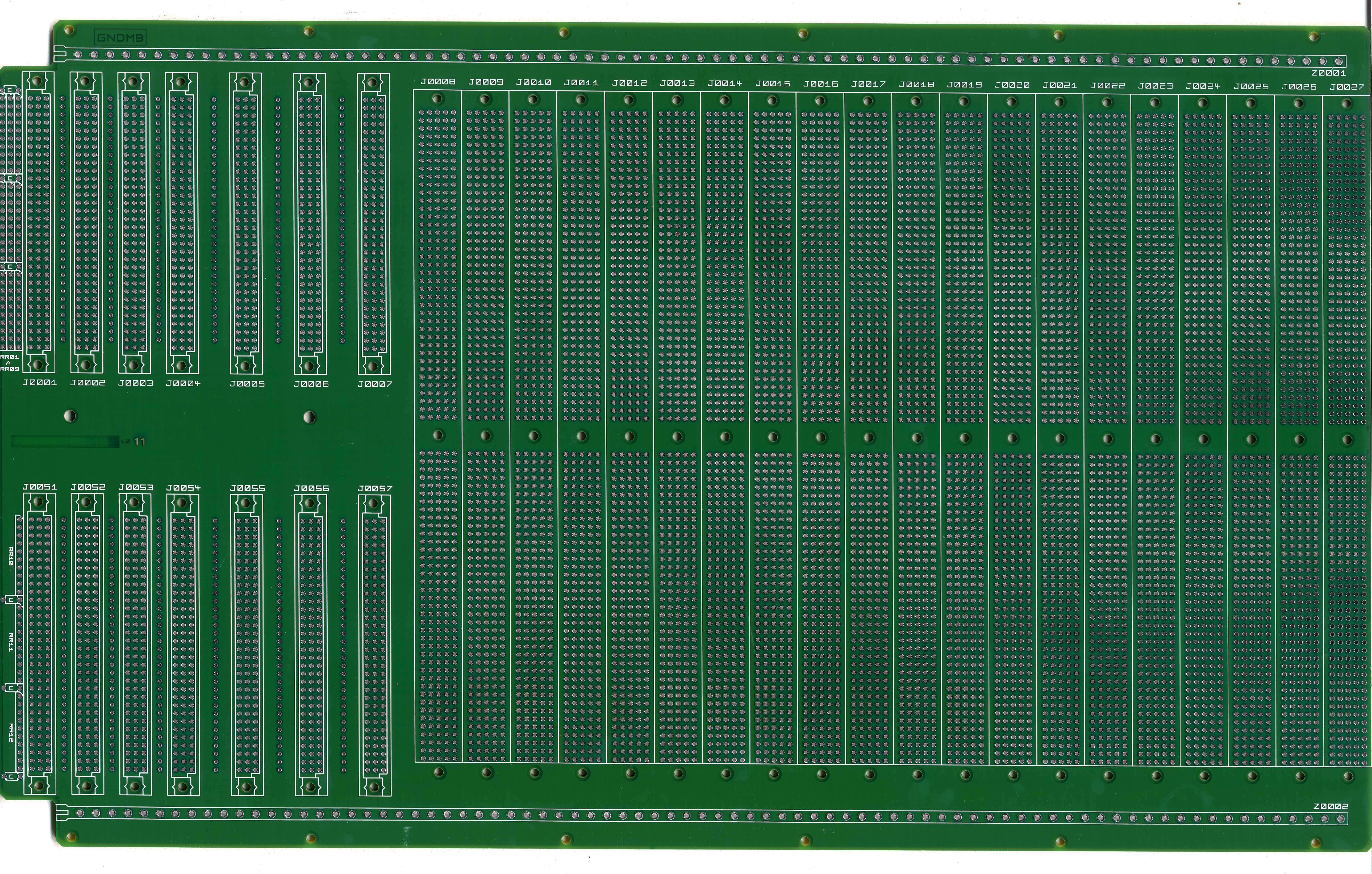

45045805 - SCMB

Company

THALES

Function

Submarine Sonar System

Primary Device

None (Mechanical IO)

Technology

HARTEC/SOCAPLEX/ROGERS-MEKTRON

PCB Build Specification

14 Layer, 1/2oz, MASK, HASL, Polyimide

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

PCBCo. (SINGAPORE)

CAD Application

Protel 99SE/PENTALOGIX

Prototypes Availability

No
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2006


manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
