Date of Design

2010

Product

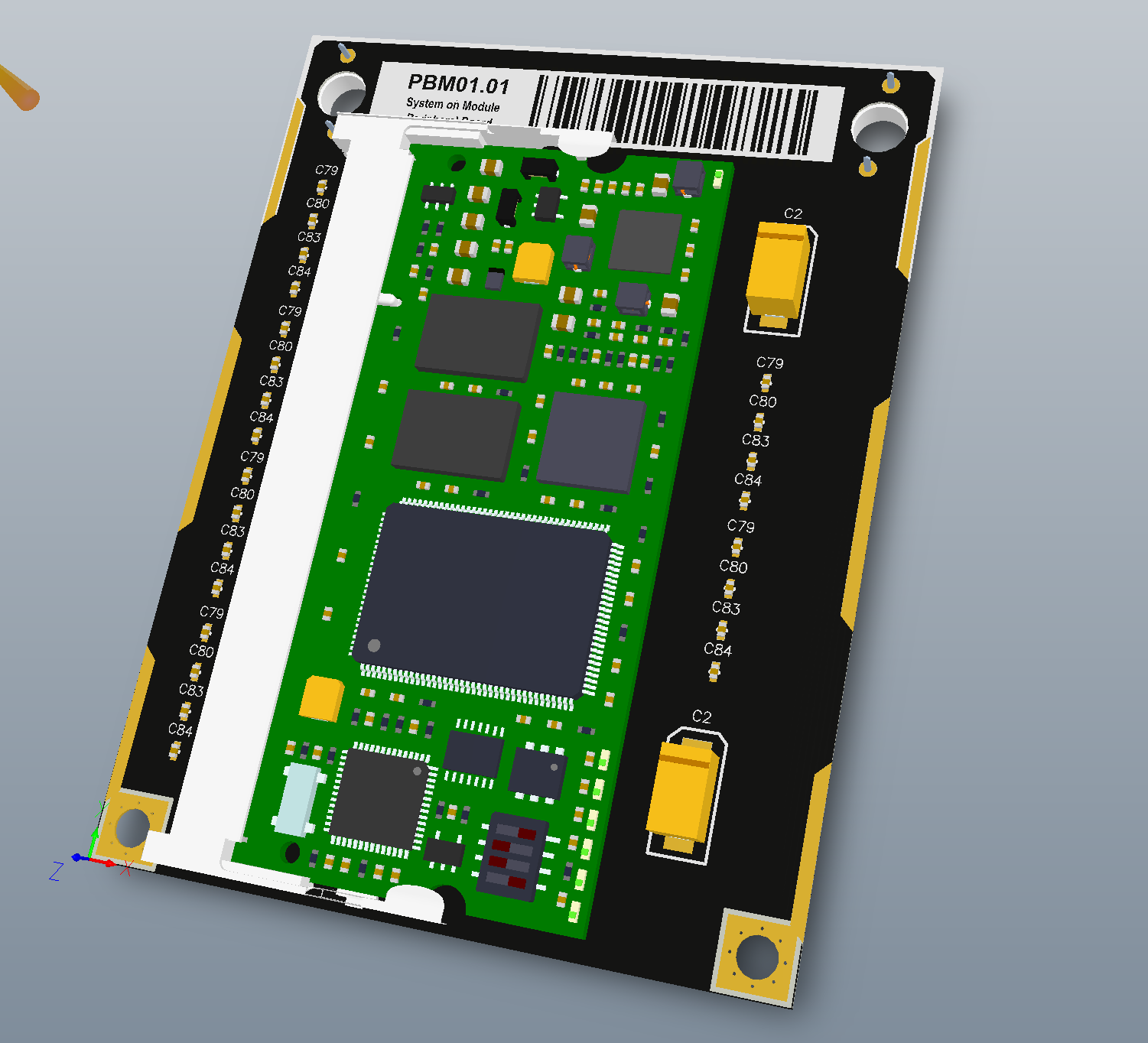

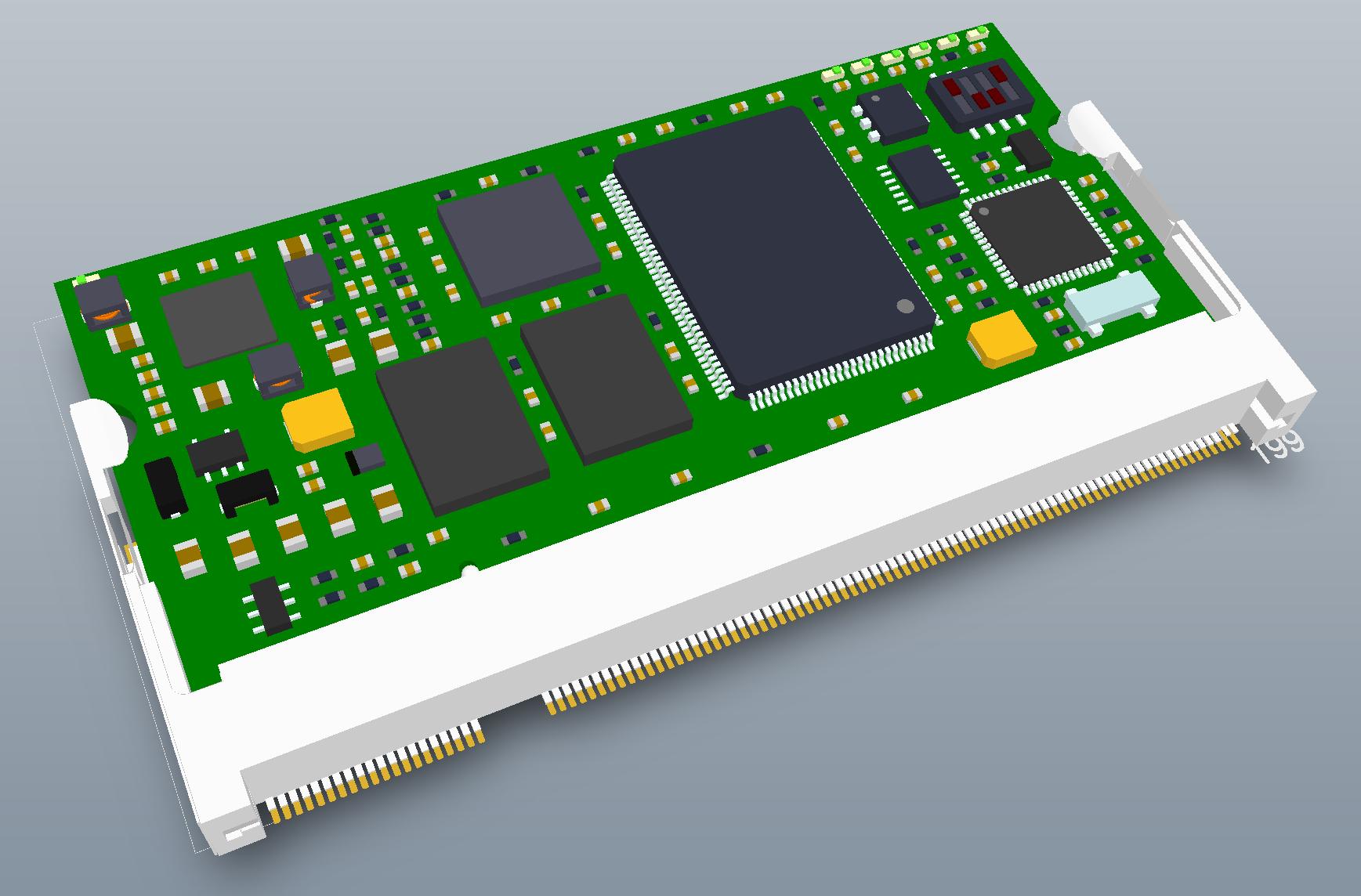

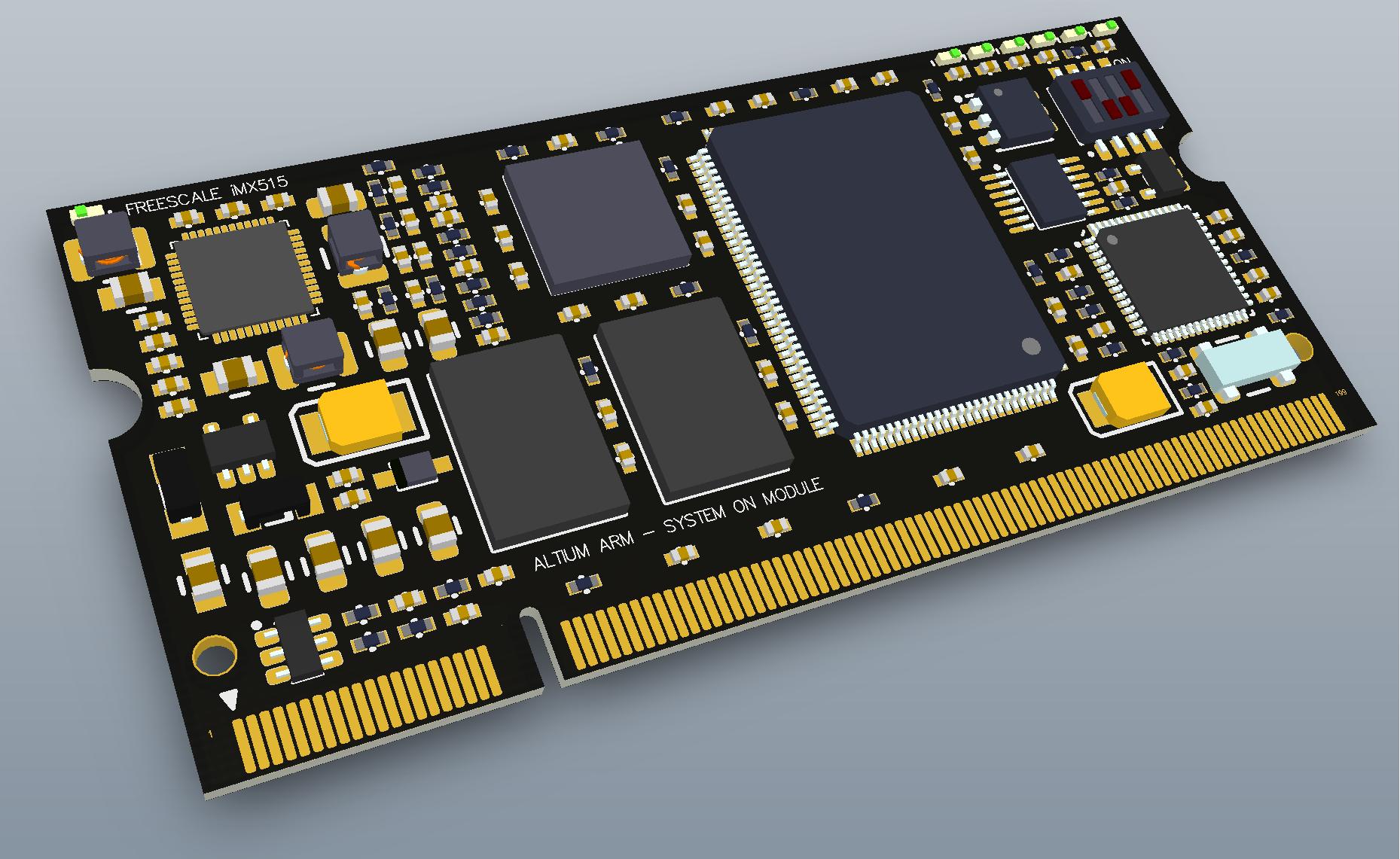

System On Module (SODIMM)

Assembly ID

SOM01

Company

ALTIUM

Function

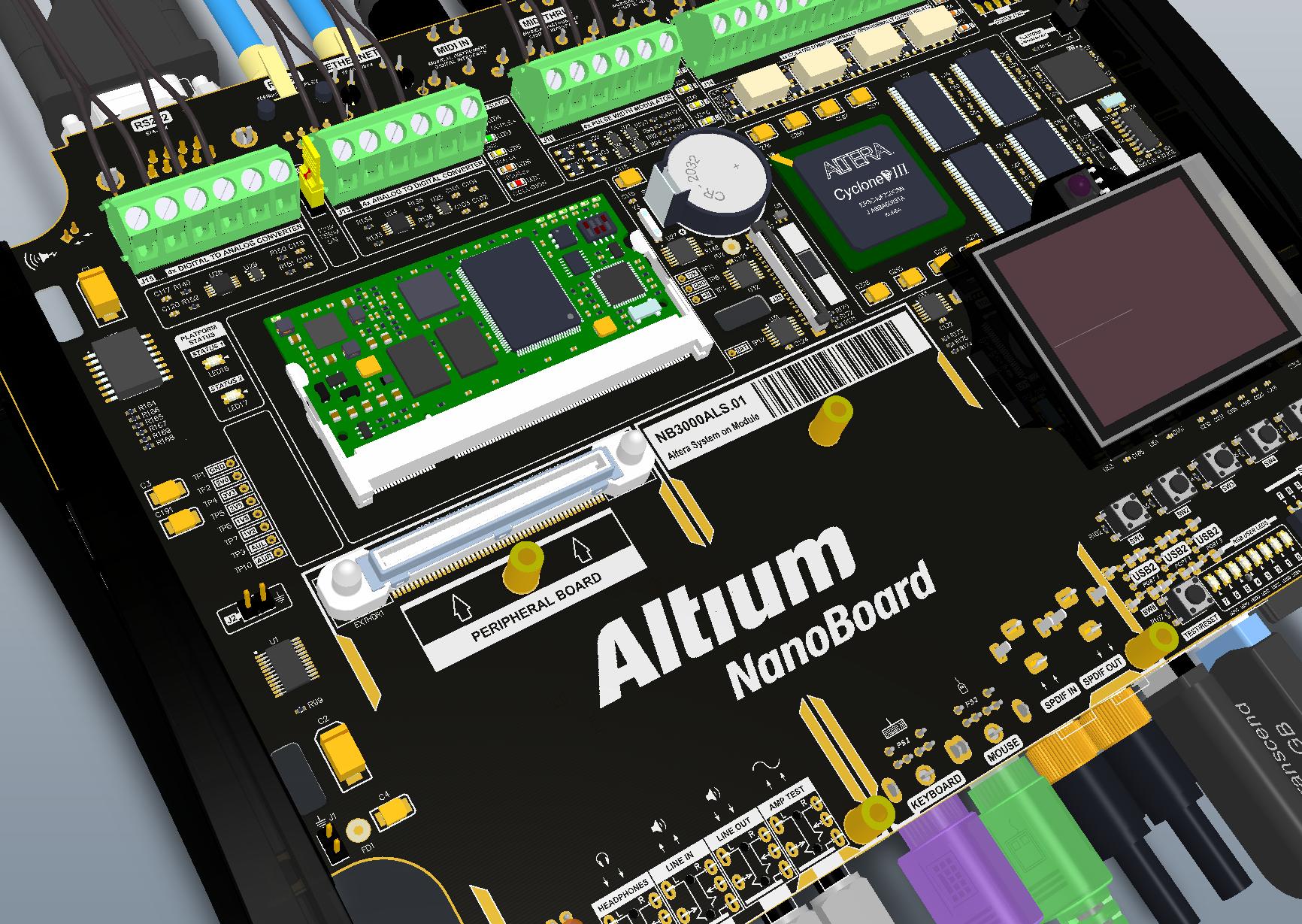

ARM8 Development/Deployment Bd.

Primary Device

Freescale MCIMX515DJM8C CPU/SoC

Technology

4 track/4 space/26 via

PCB Build Specification

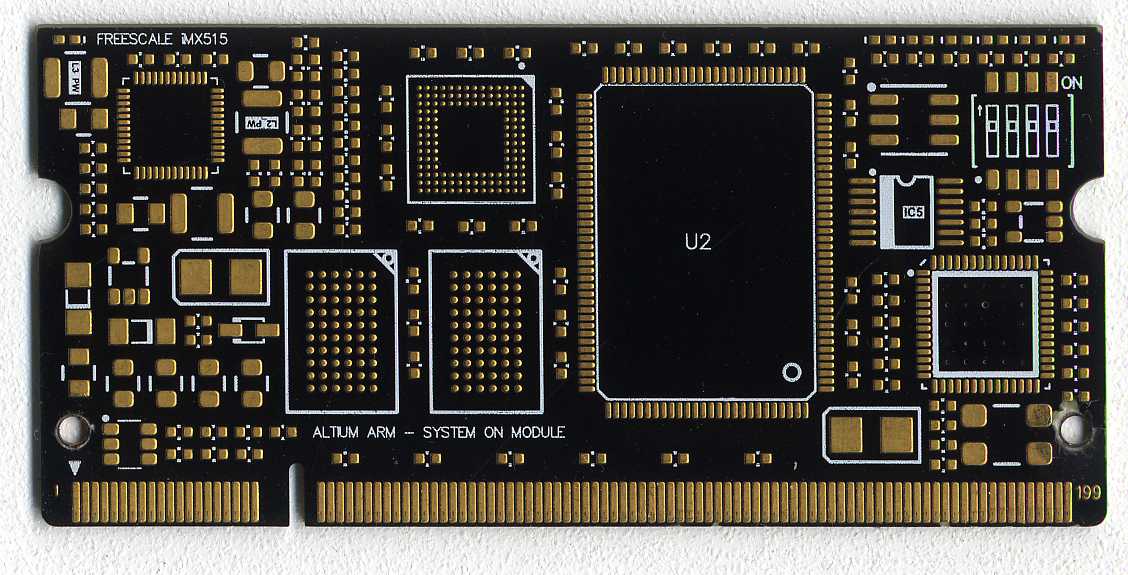

8 Layer, 1/2oz,  MASK, ENIG, TUC04

Design Compliance

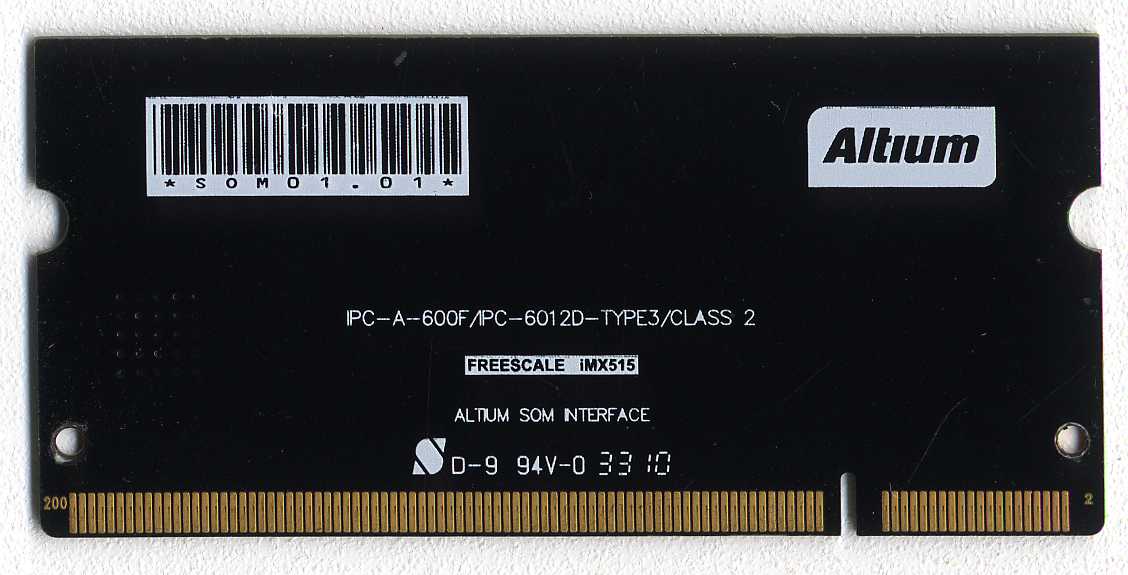

IPC-A-600/IPC-6012/IPC-610

Manufacturer

Speedy Circuits (TAIWAN)

CAD Application

Altium Designer R10

Prototype Availability

No

The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
