Date of Design

2011

Product

Carrier Board for SOM Systems

Assembly ID

TCB01

Company

ALTIUM

Function

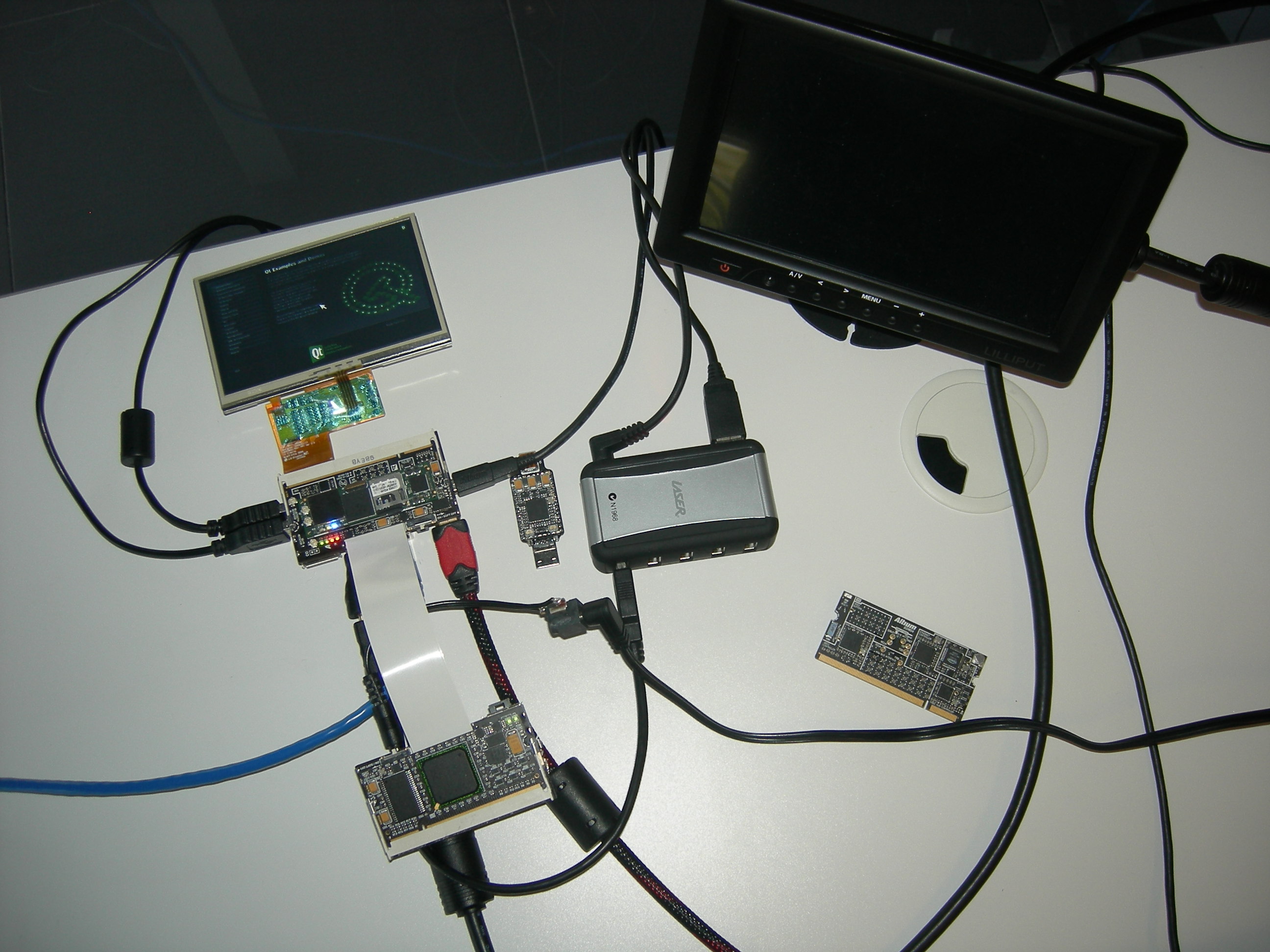

ARM CPU with FPGA SOM Carrier Bd

Primary Device

OMAP3530 ARM A8 + XC3S1600E FPGA

Technology

4 track/4 space/26 via

PCB Build Specification

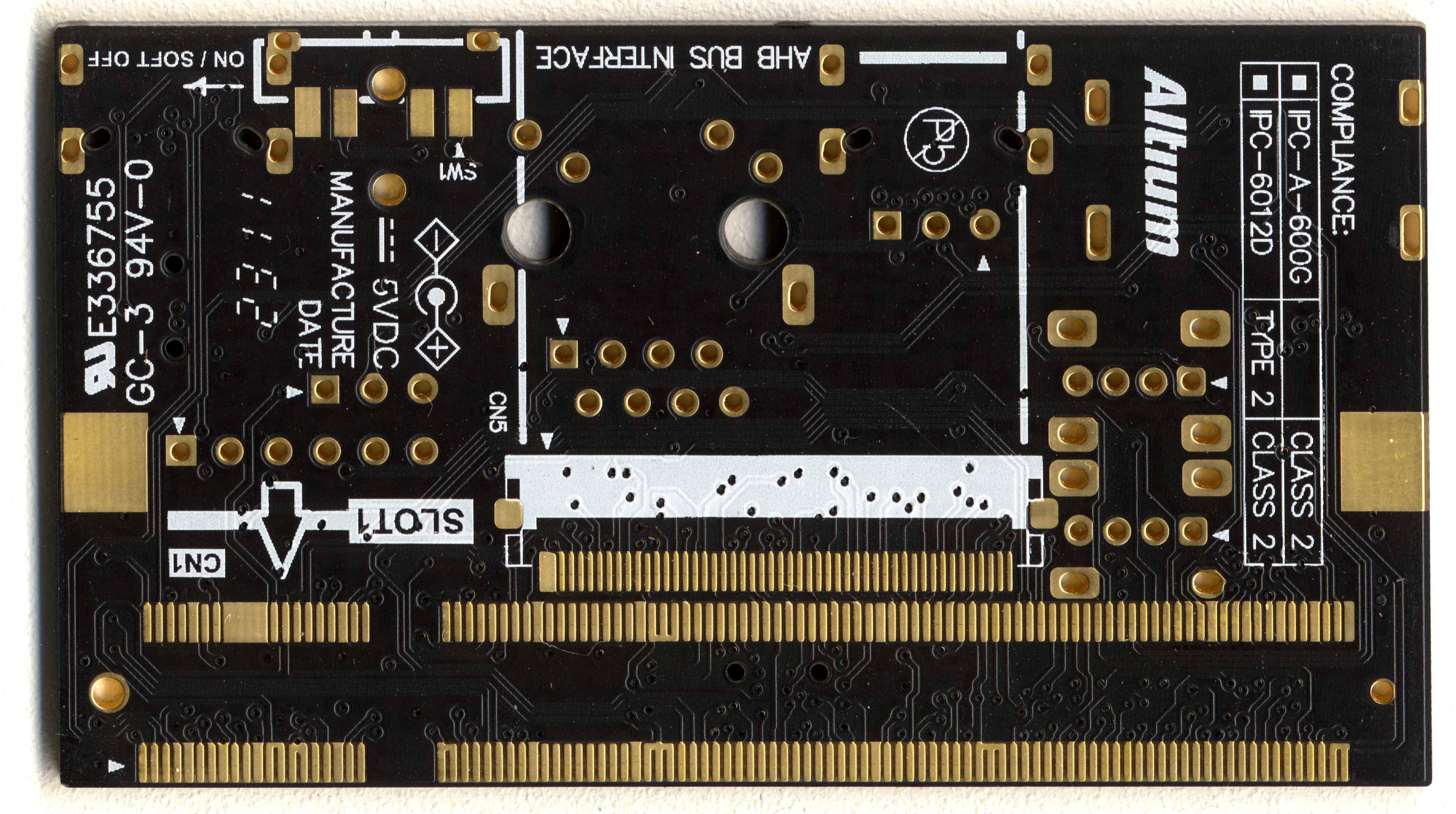

2 Layer, 1/2oz,  MASK, ENIG, TUC04

Design Compliance

IPC-A-600/IPC-6012

Manufacturer

PCB Cart (CHINA)

CAD Application

Altium Designer R10

Prototype Availability

Yes
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2011

manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.


© Copyright 2011 - Images are not to be used without written permission
