Date of Design

2008

Product

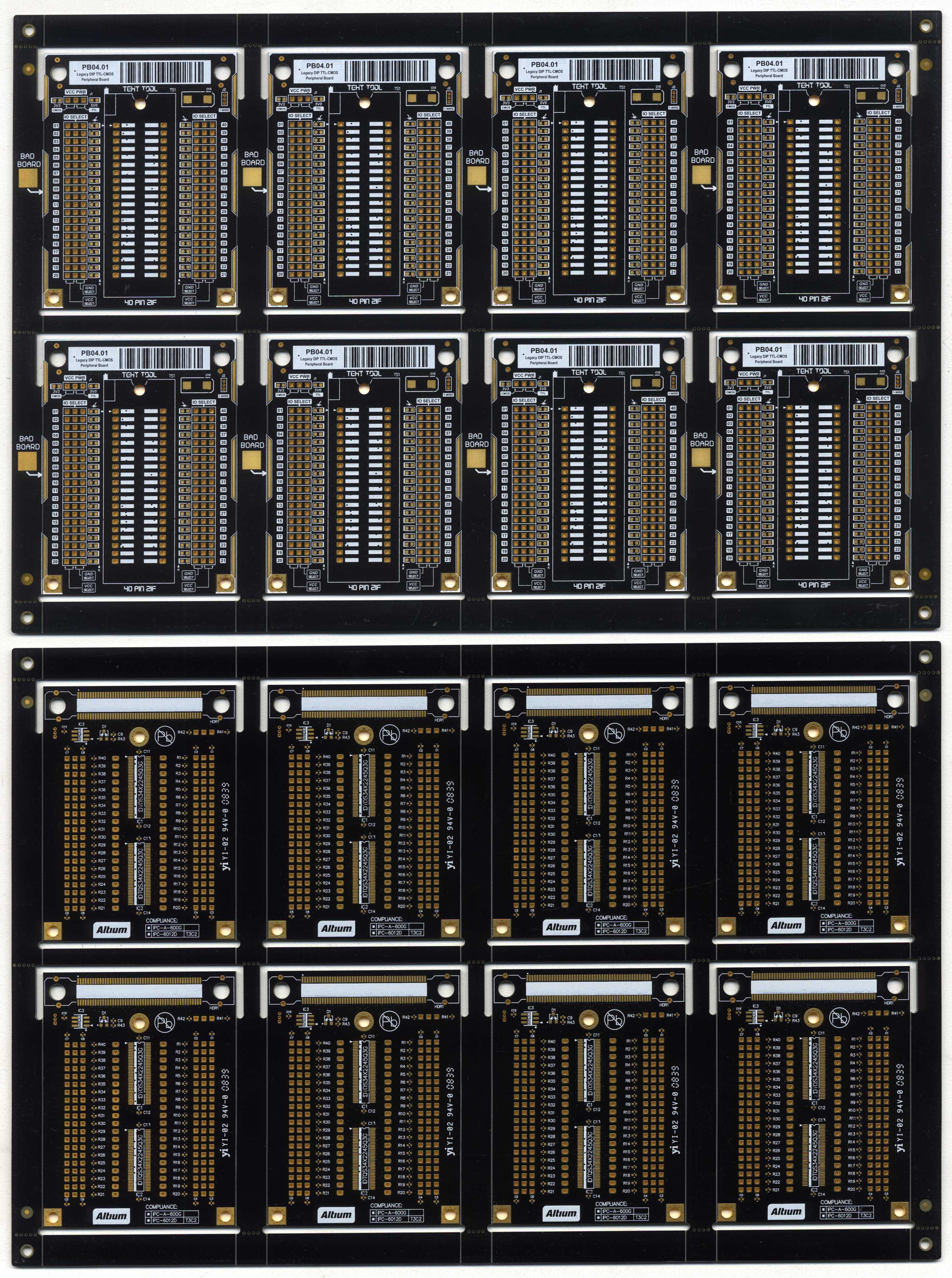

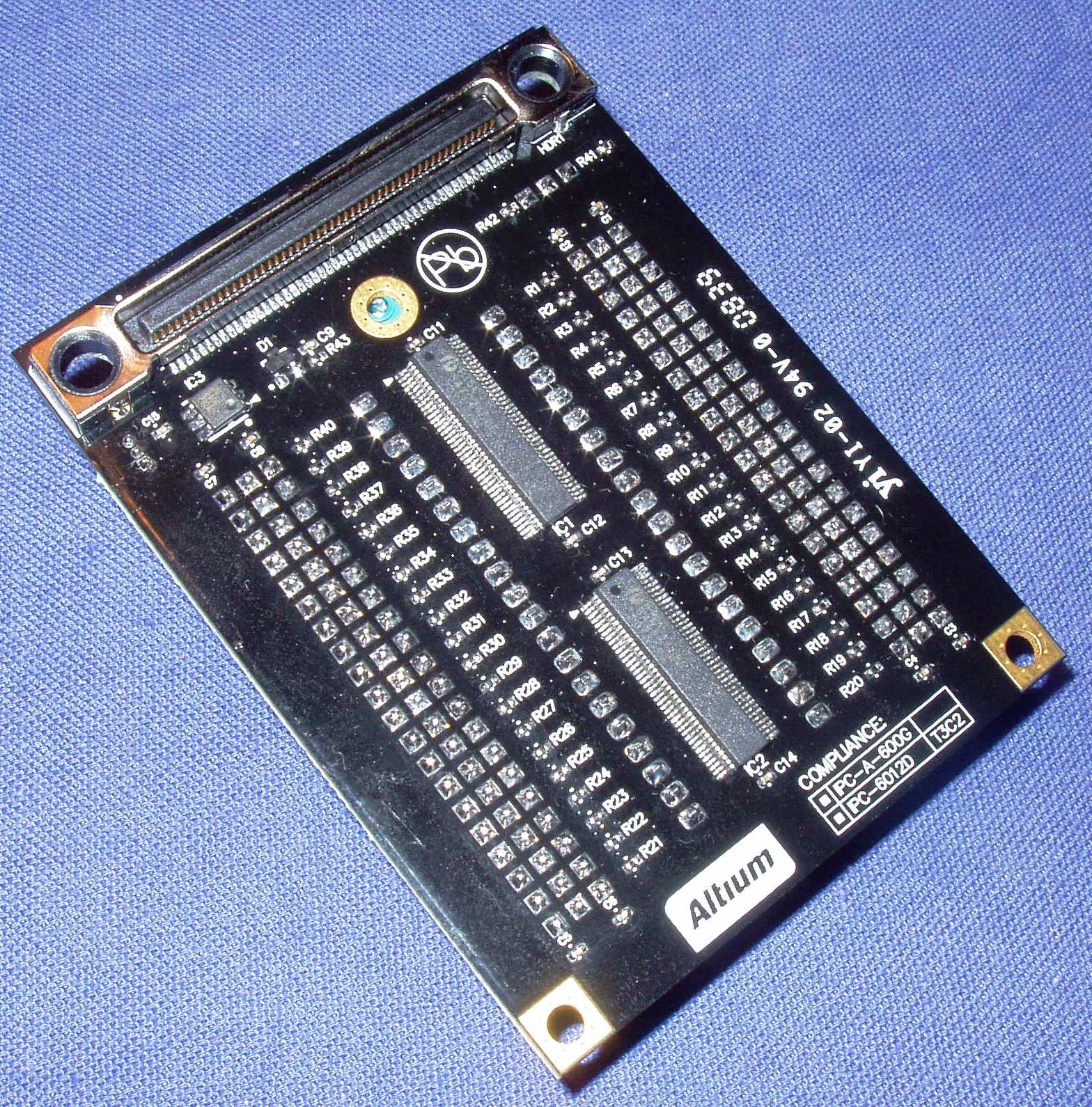

ASIC Adaptor

Assembly ID

ASIC Adaptor (PB04)

Company

ALTIUM (R&D)

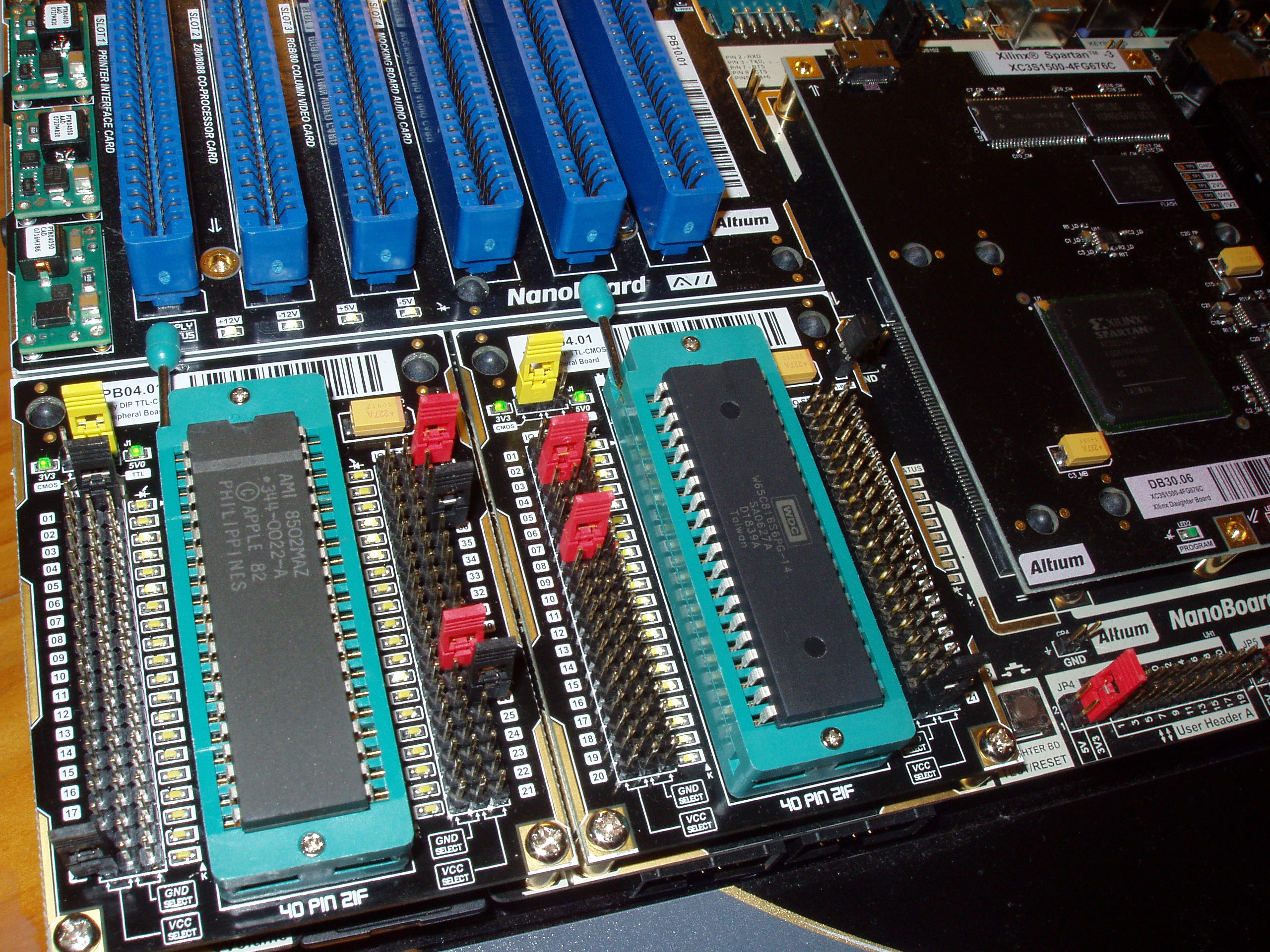

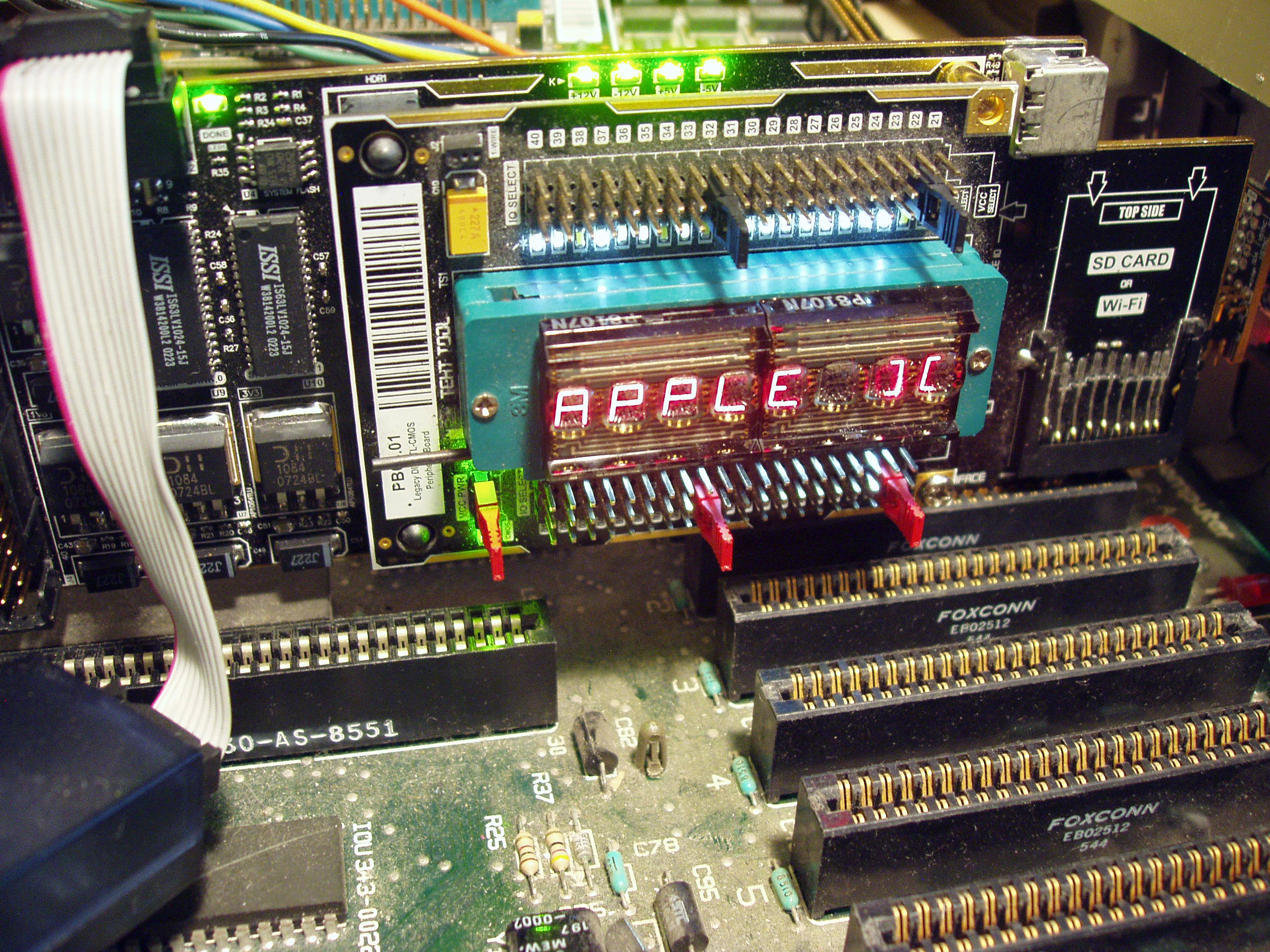

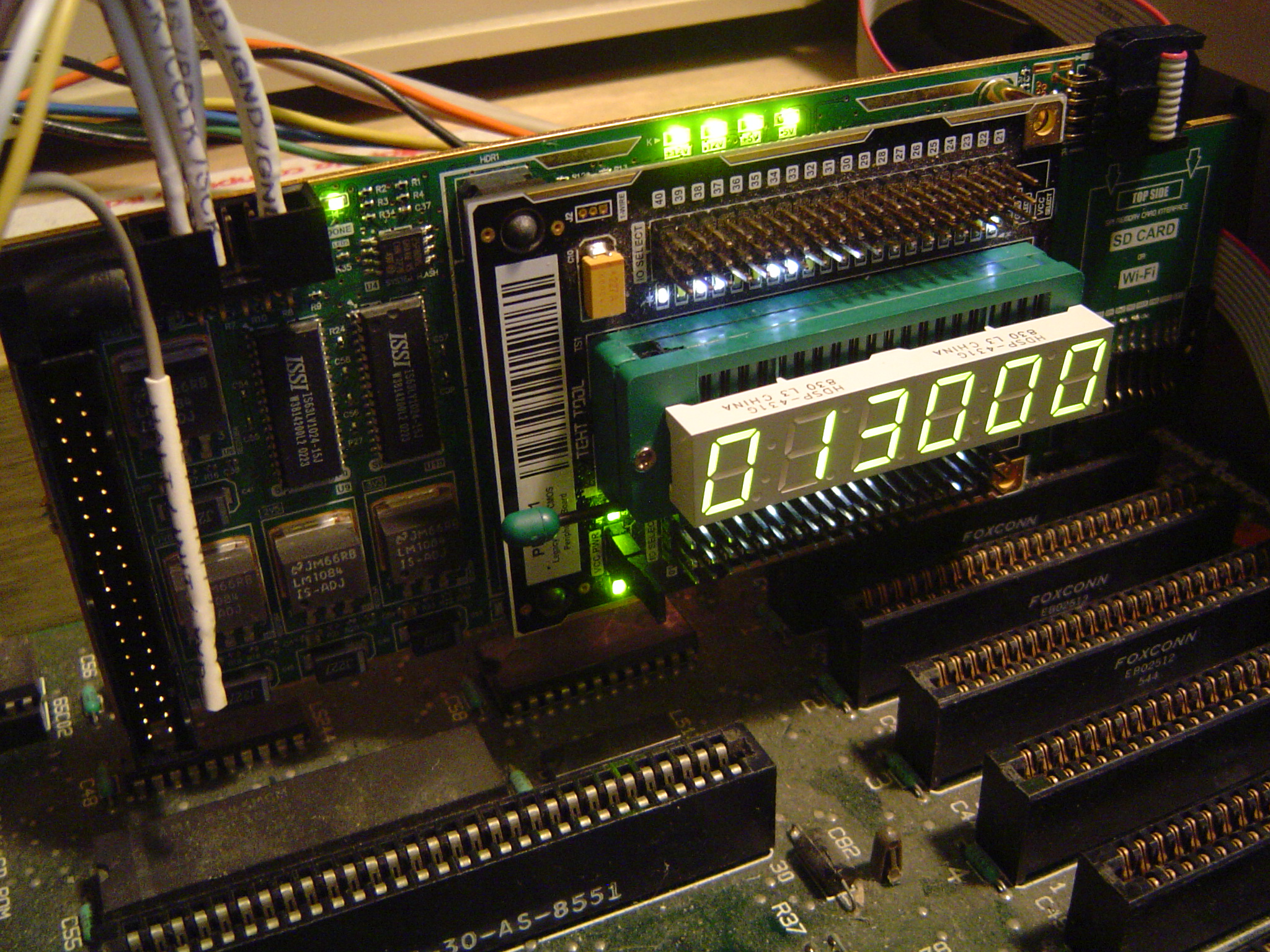

Function

Adapt ASIC for use with FPGA's

Primary Device

IDT/QS34X245Q3G

Technology

5 track/5 space/24 via

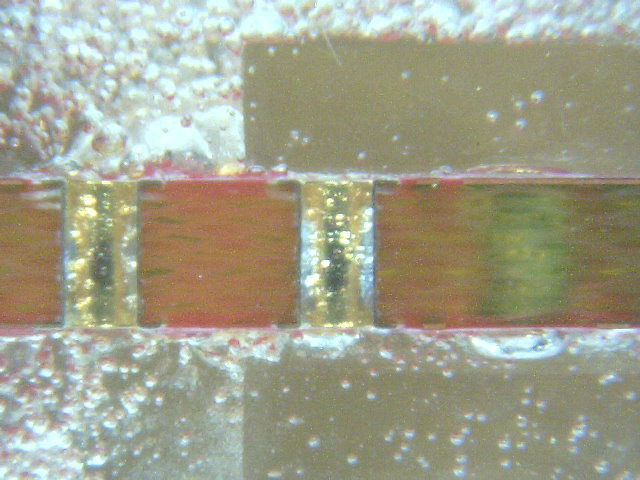

PCB Build Specification

2 Layer, 1oz,  MASK, ENIG, FR04

Design Compliance

IPC610/IPC6012

Manufacturer

Yuan Circuits (TAIWAN)

CAD Application

Altium Designer S08

Prototype Availability

Yes

Downloads

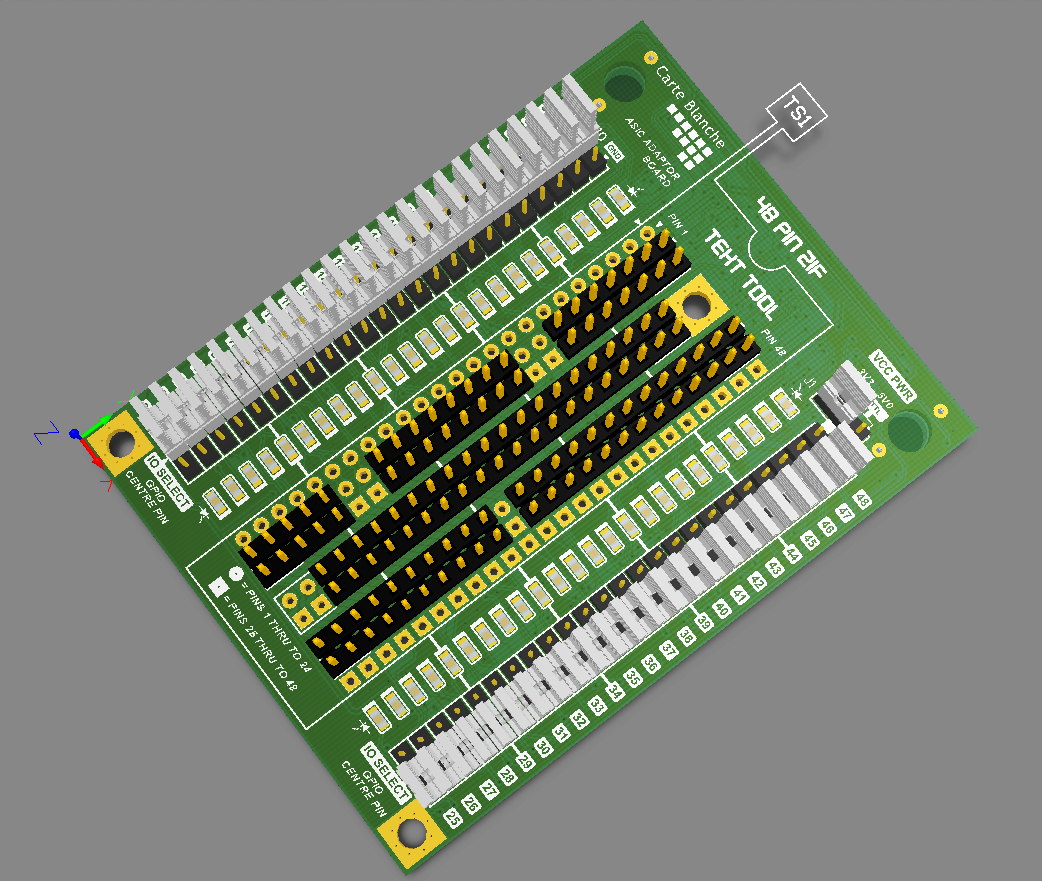

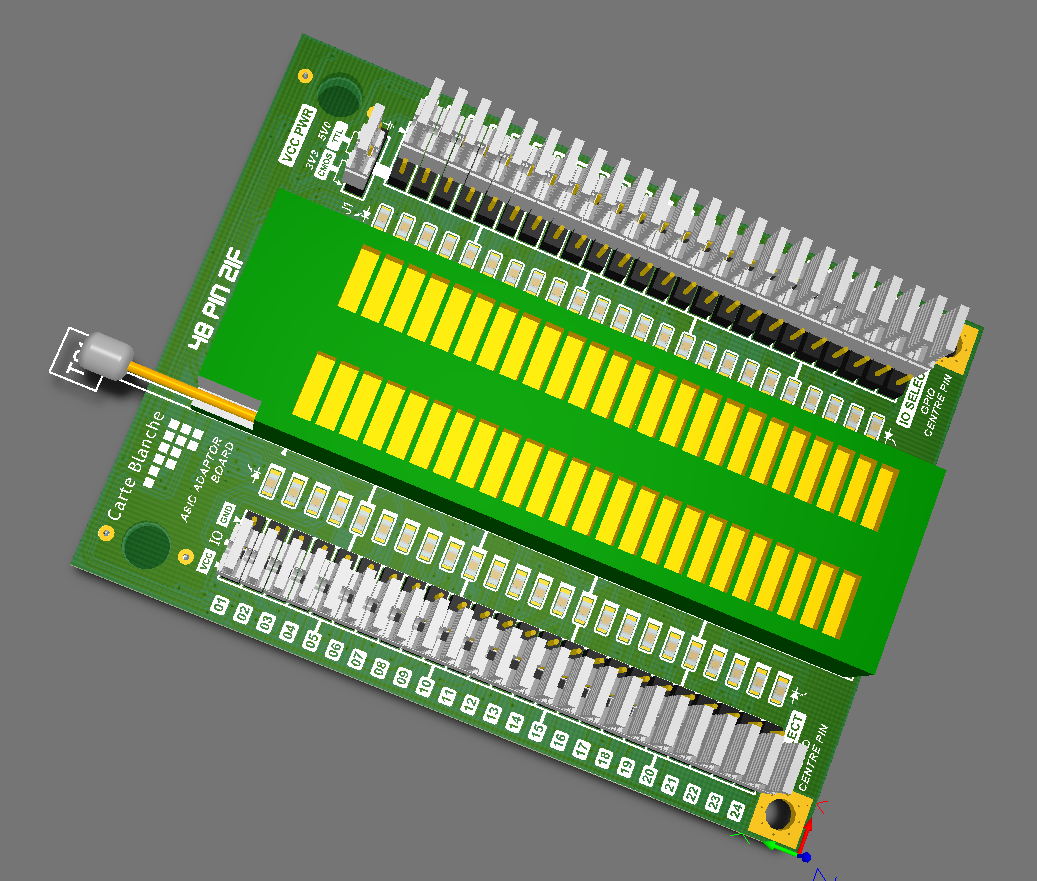

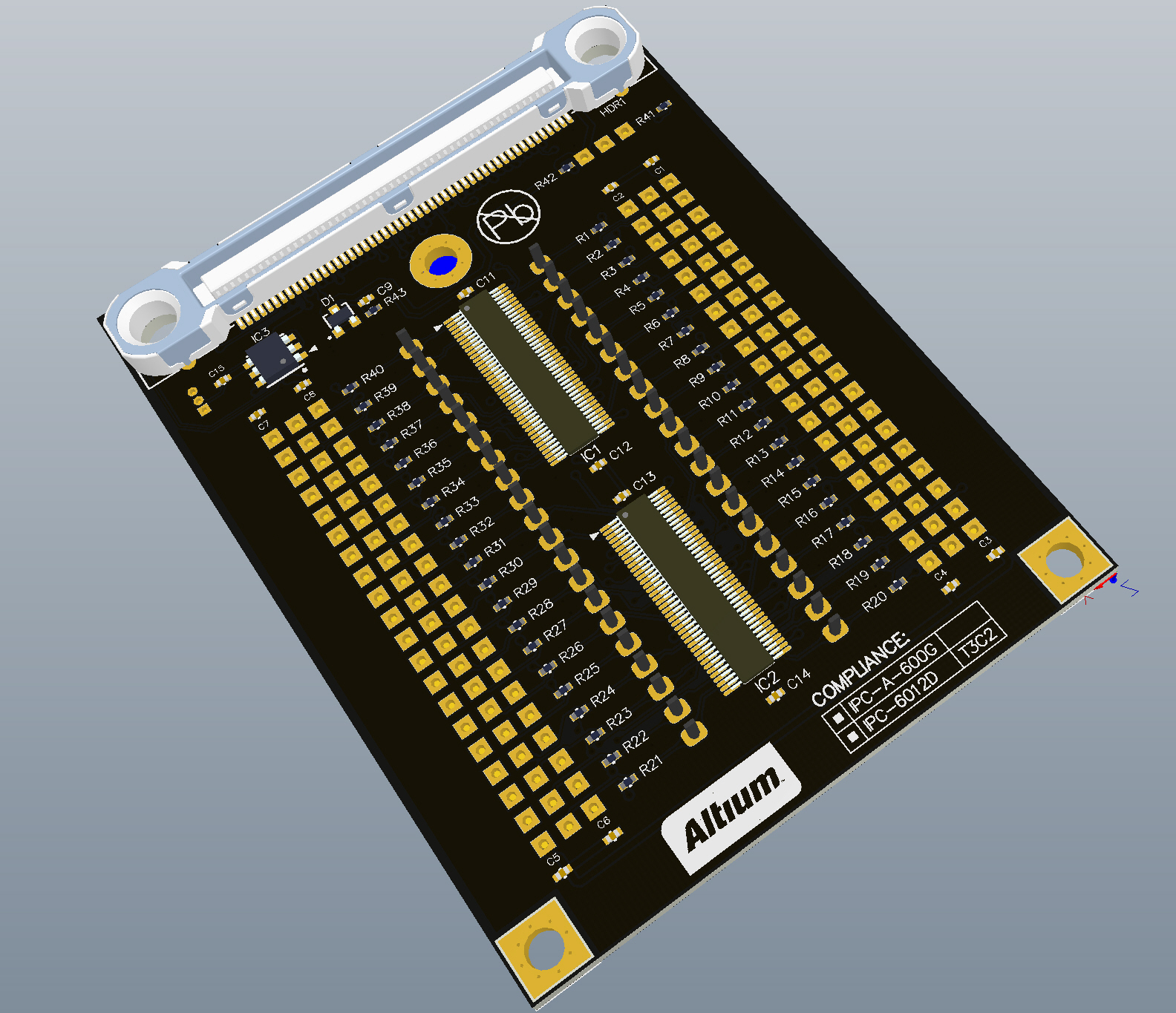

3D PDF - AAB_3d.PDF (PDF)
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2008


manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
