Date of Design

2008

Product

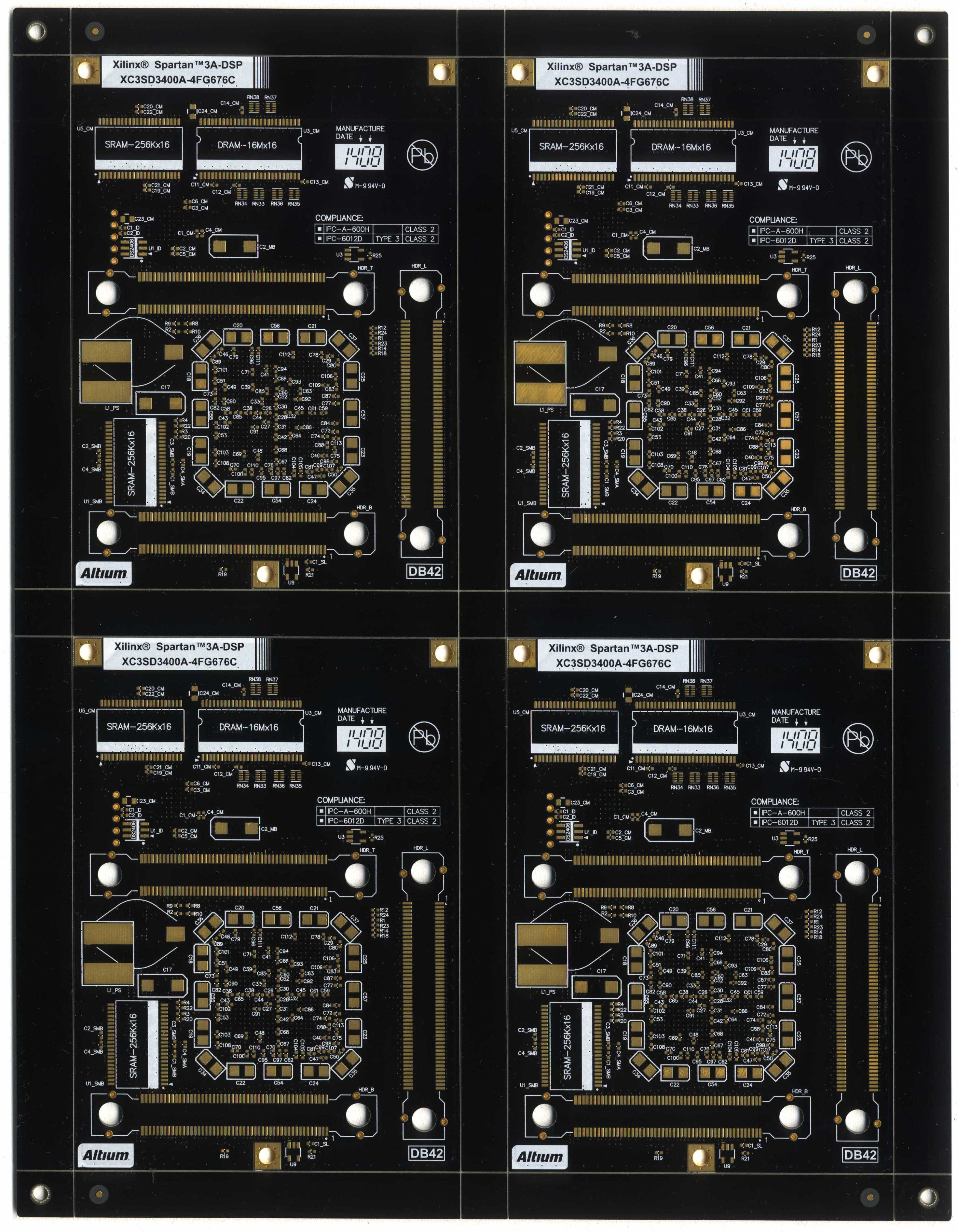

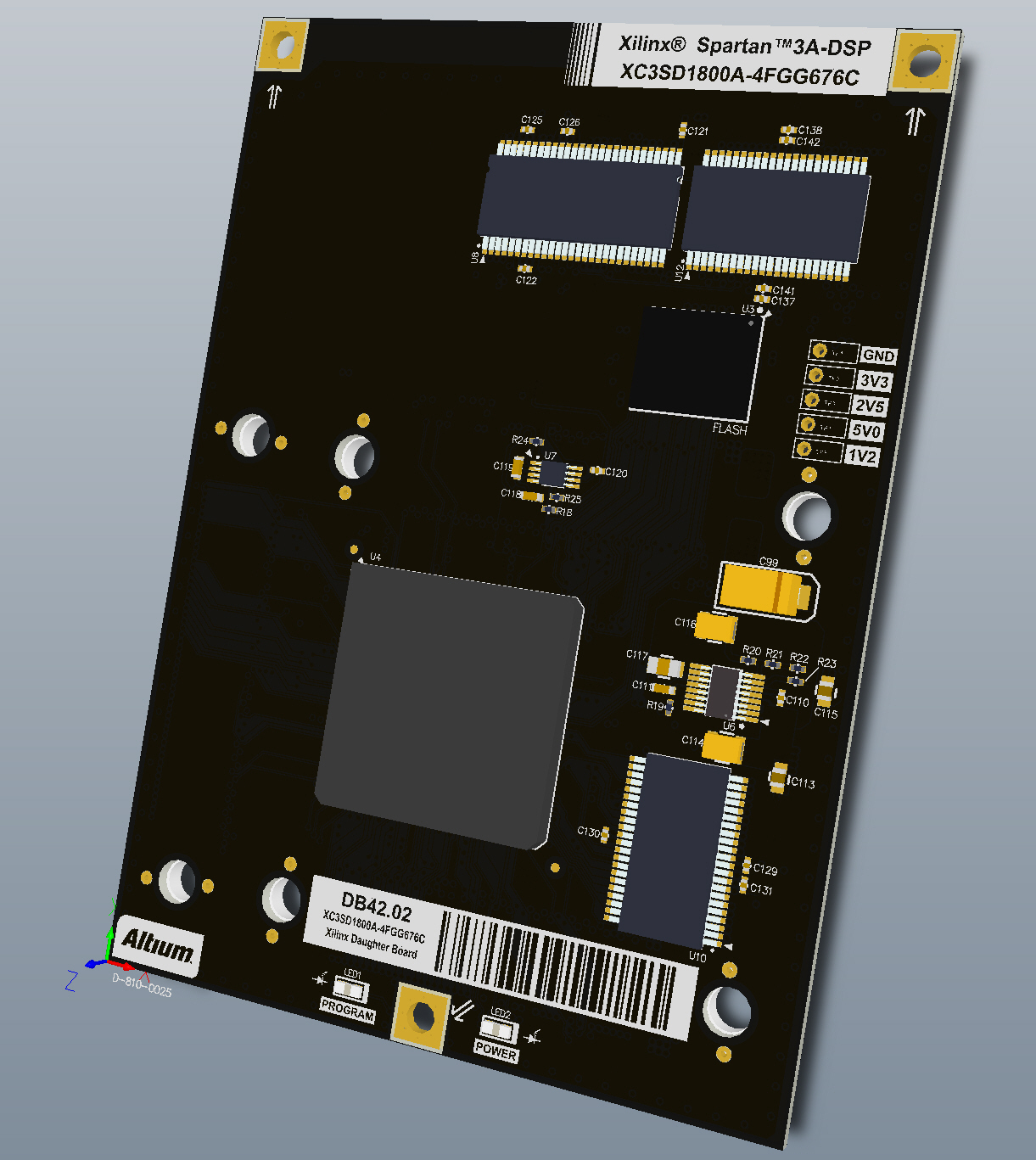

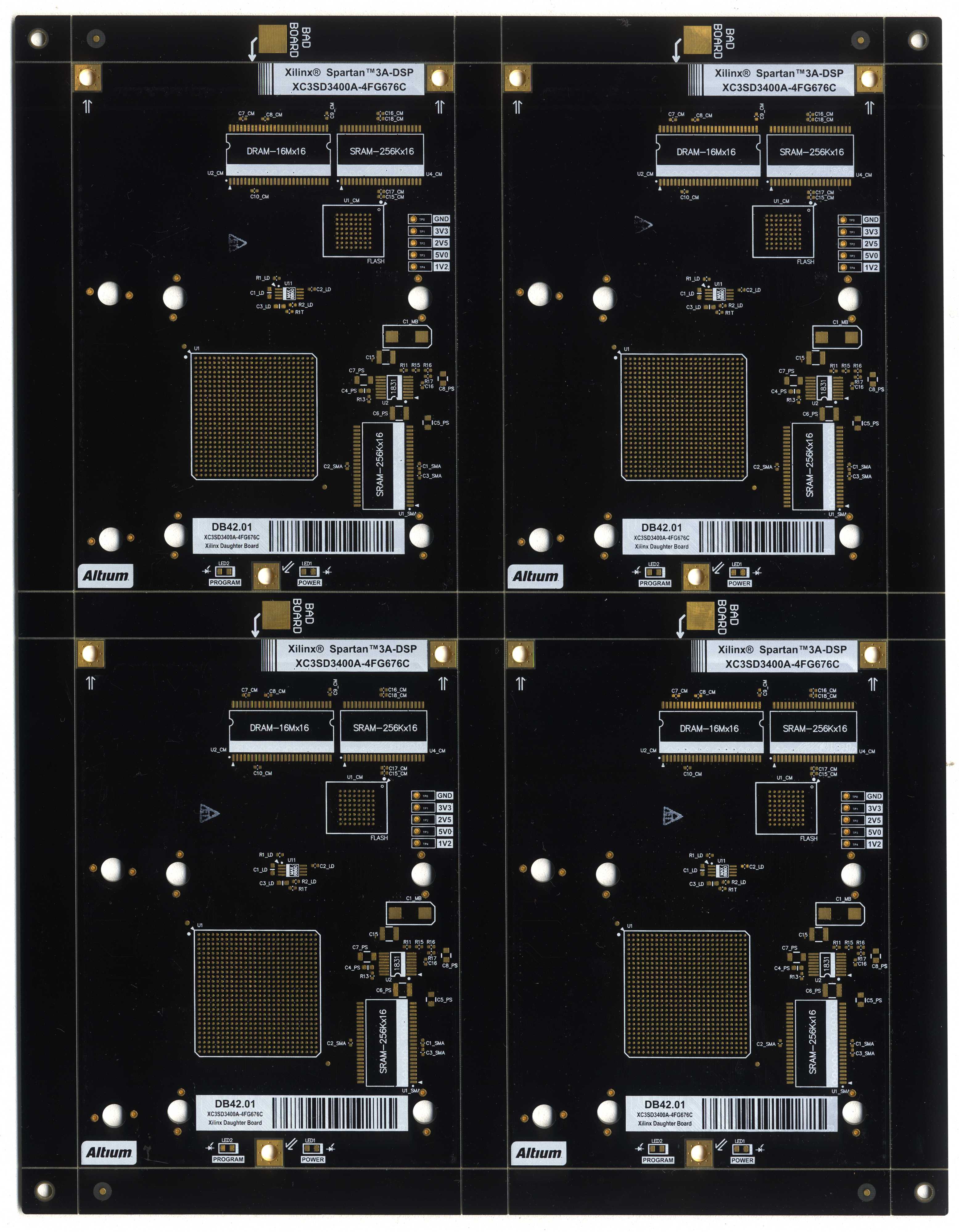

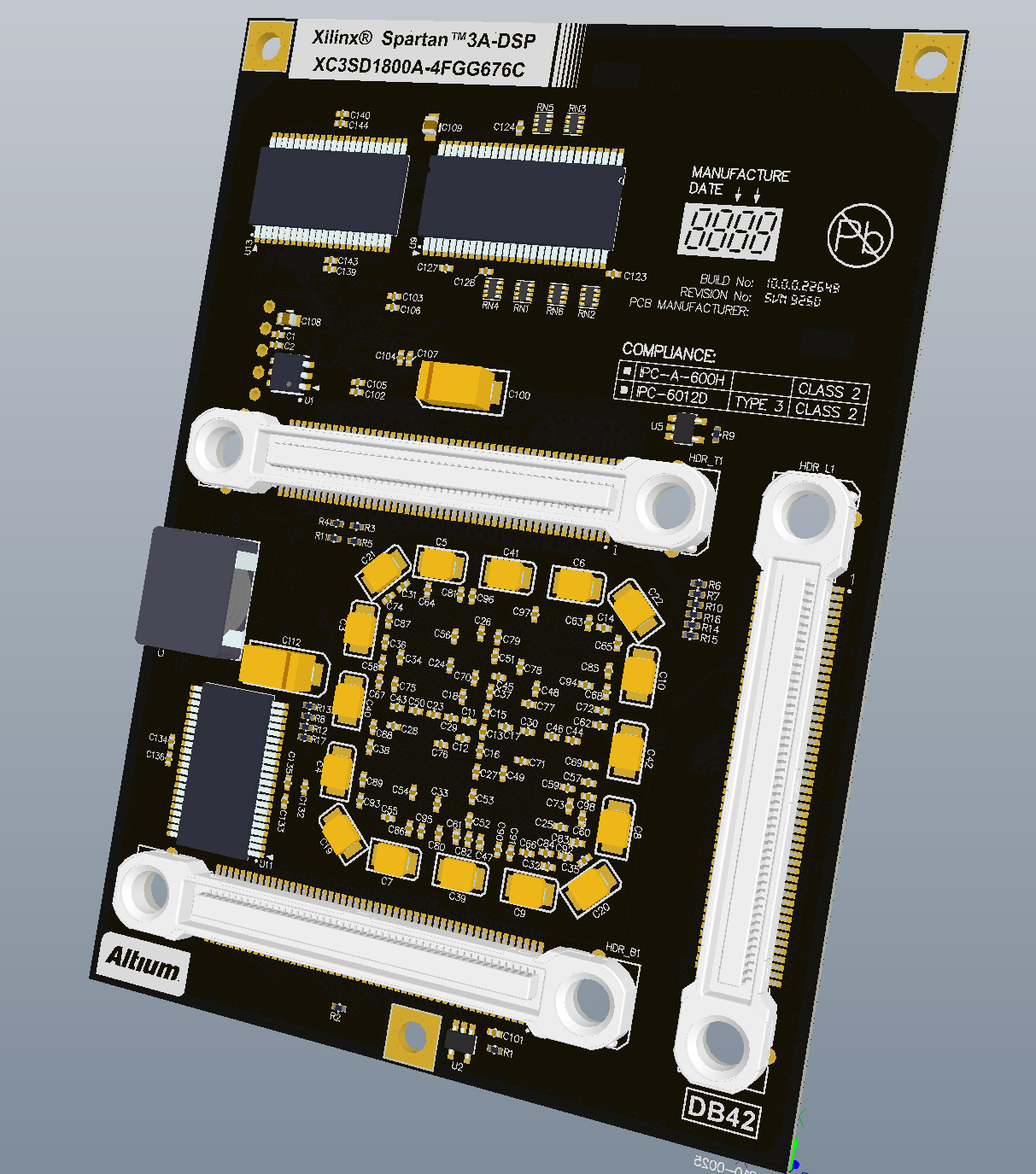

Xilinx XC3SD1800A FPGA Module

Assembly ID

DB42.02

Company

ALTIUM

Function

DSP+FPGA w/SRAM, DRAM and Flash

Primary Device

XC3SD1800A-4FGG676C

Technology

5 track/5 space/24 via

PCB Build Specification

8 Layer, 1/2oz,  MASK, ENIG, TUC04

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

Speedy Circuits (TAIWAN)

CAD Application

Altium Designer 6.9

Prototype Availability

Yes
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2008


manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
