Date of Design

2012

Product

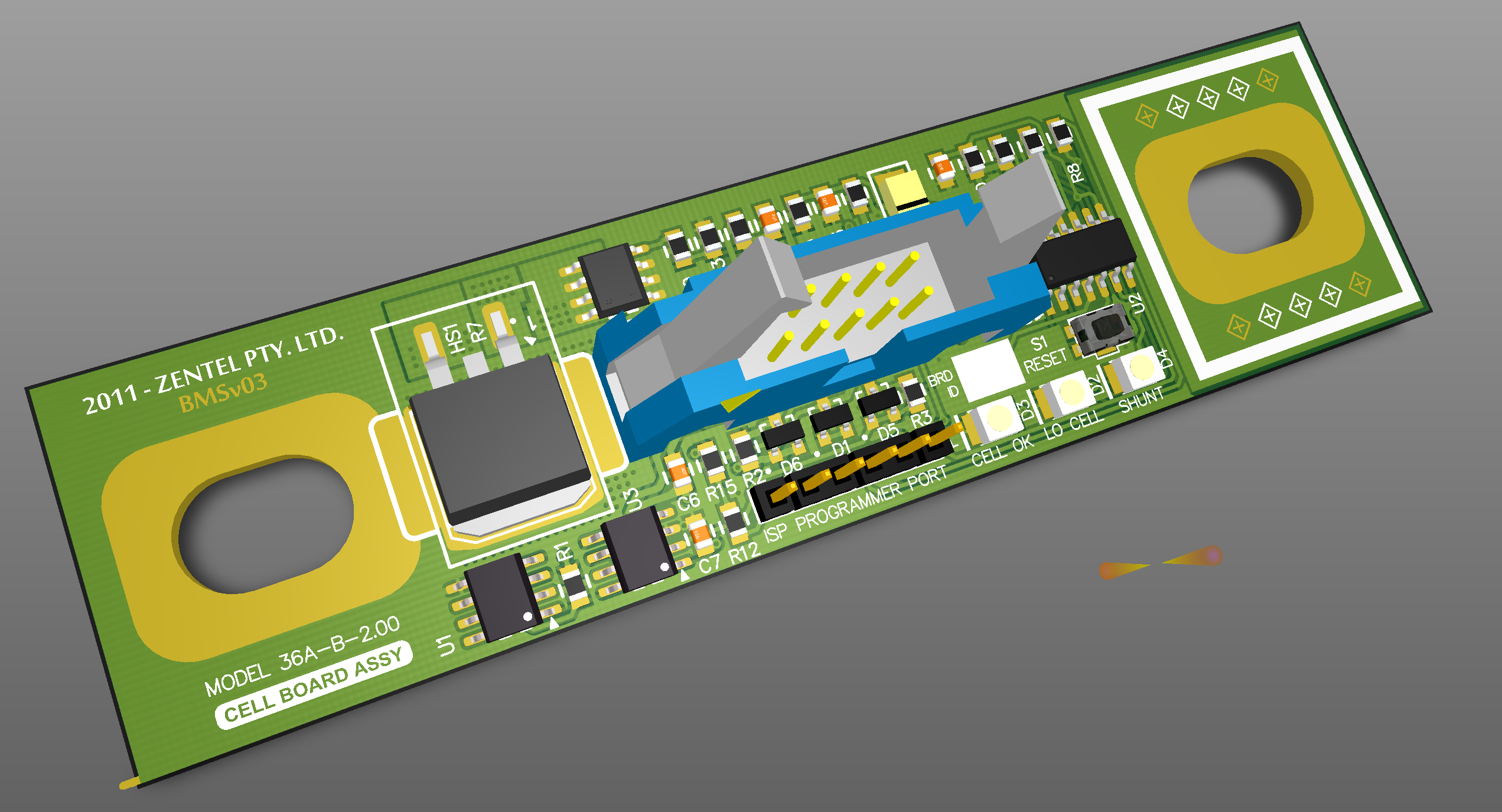

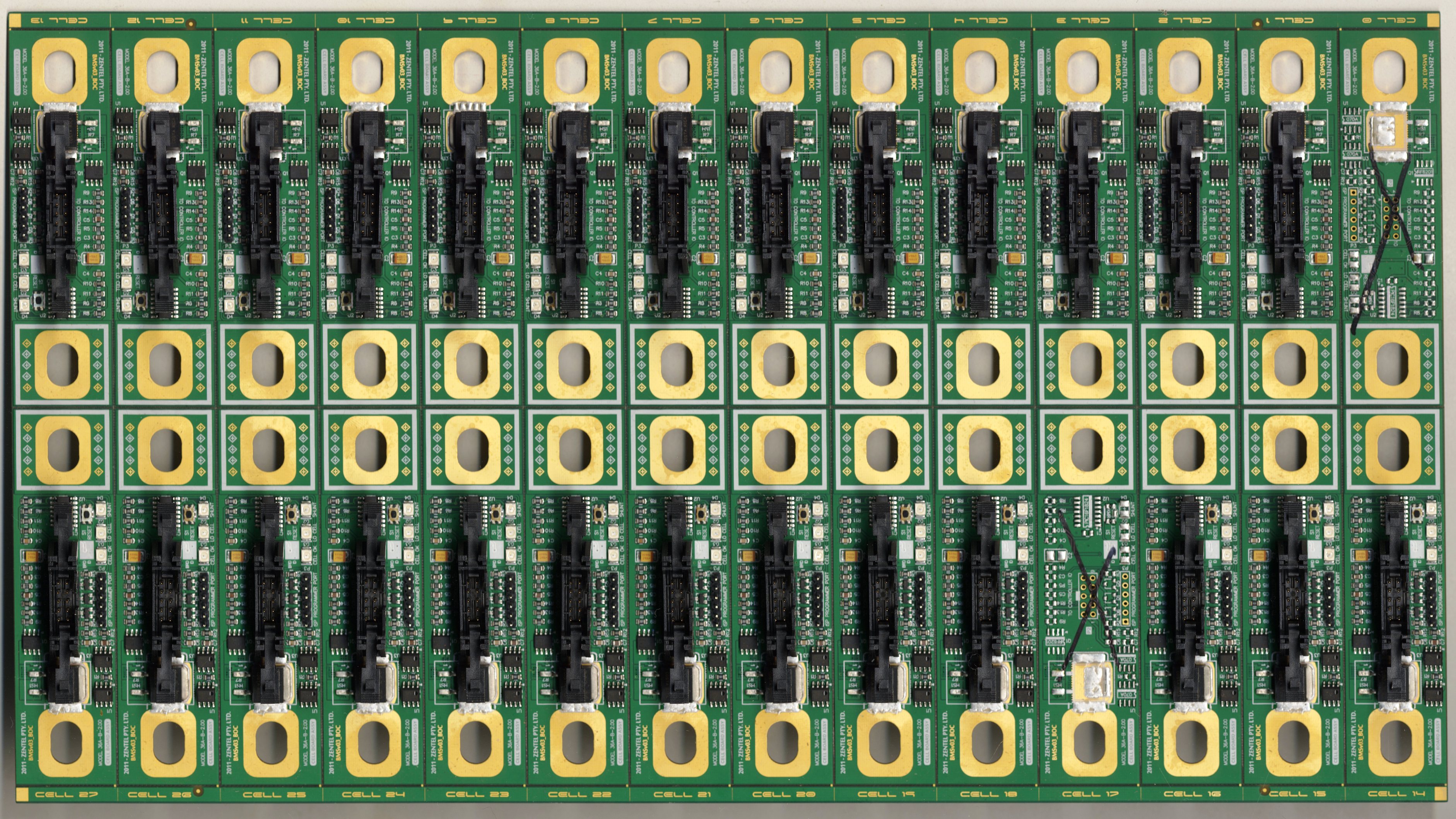

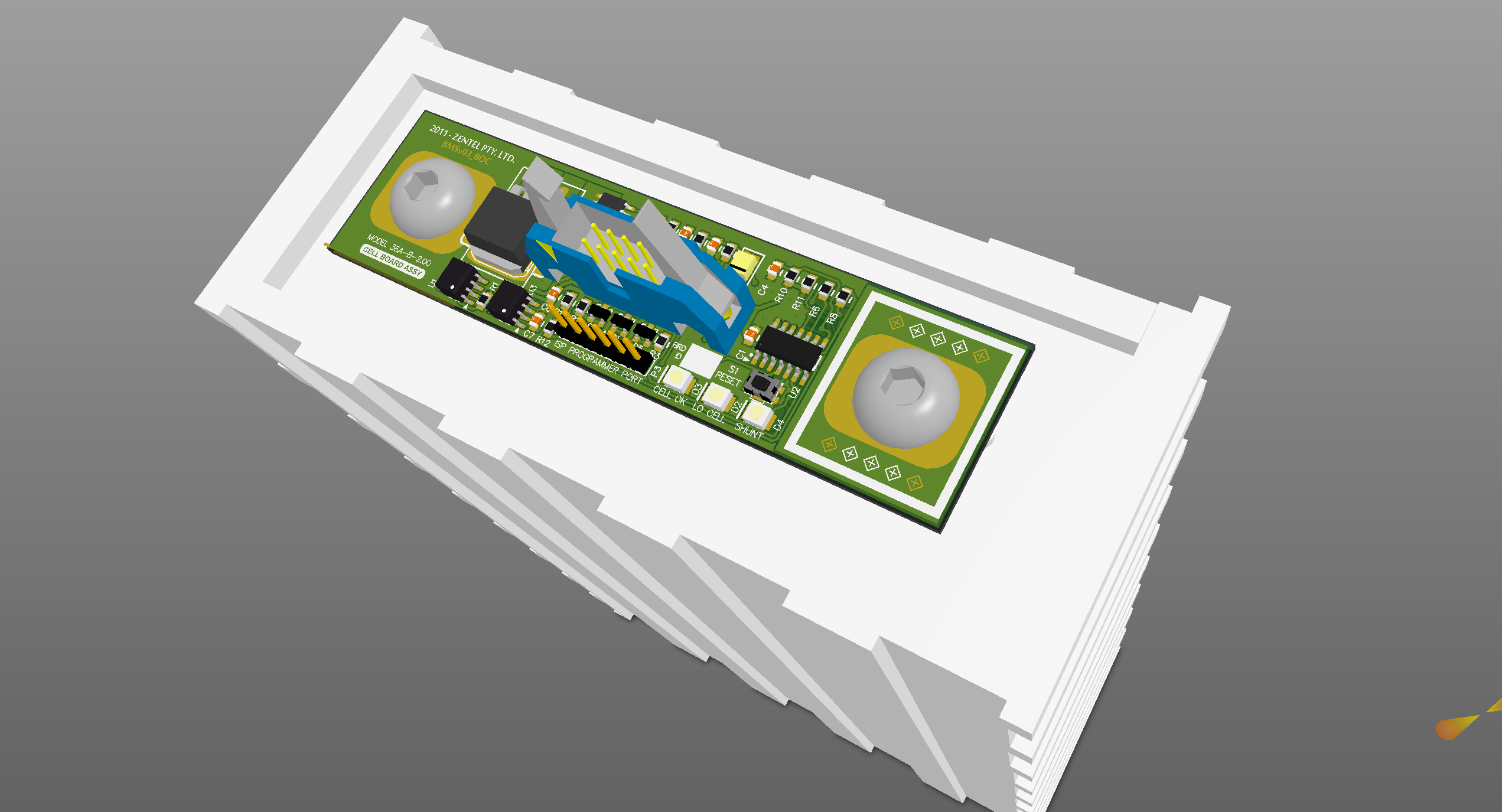

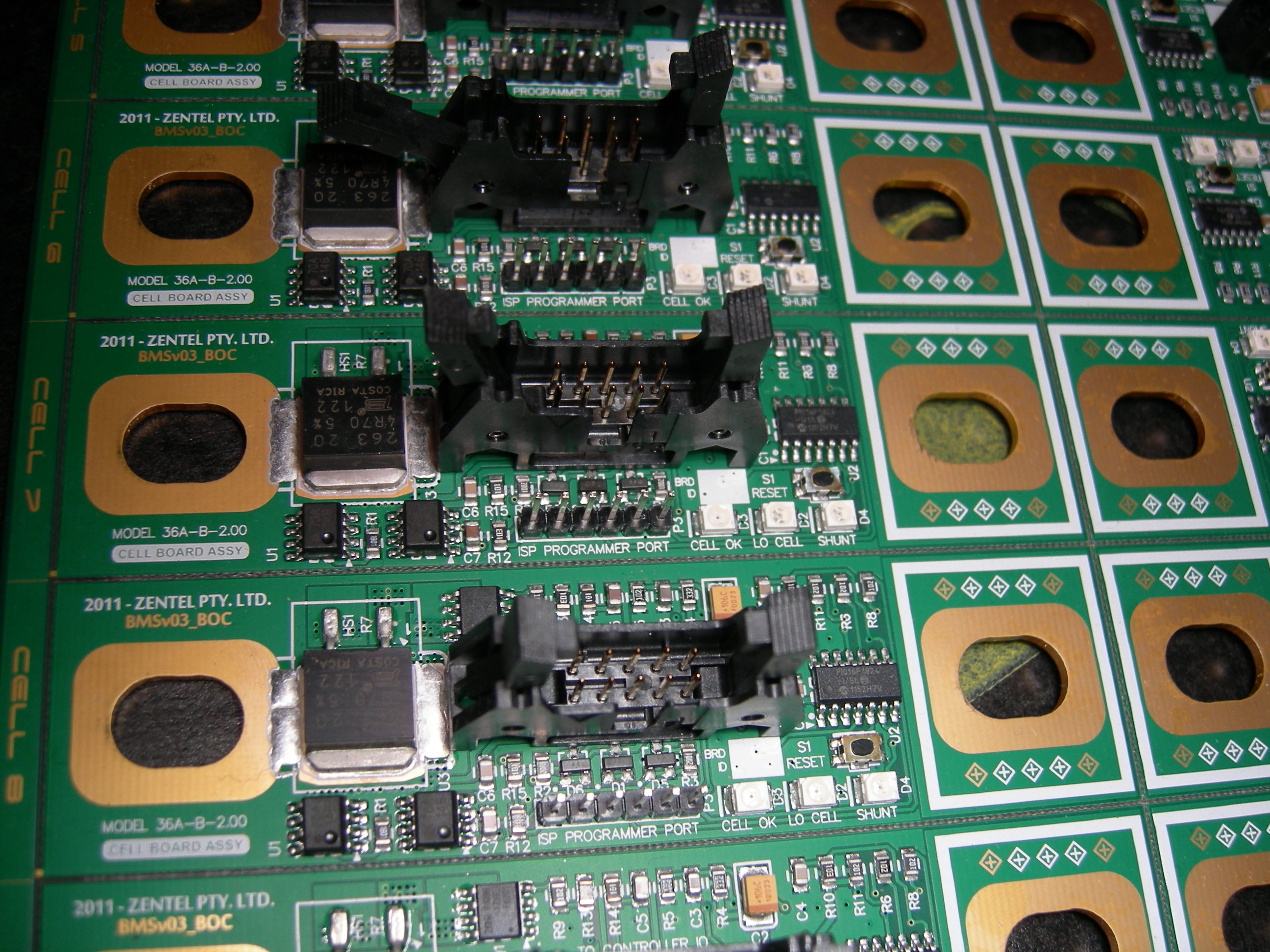

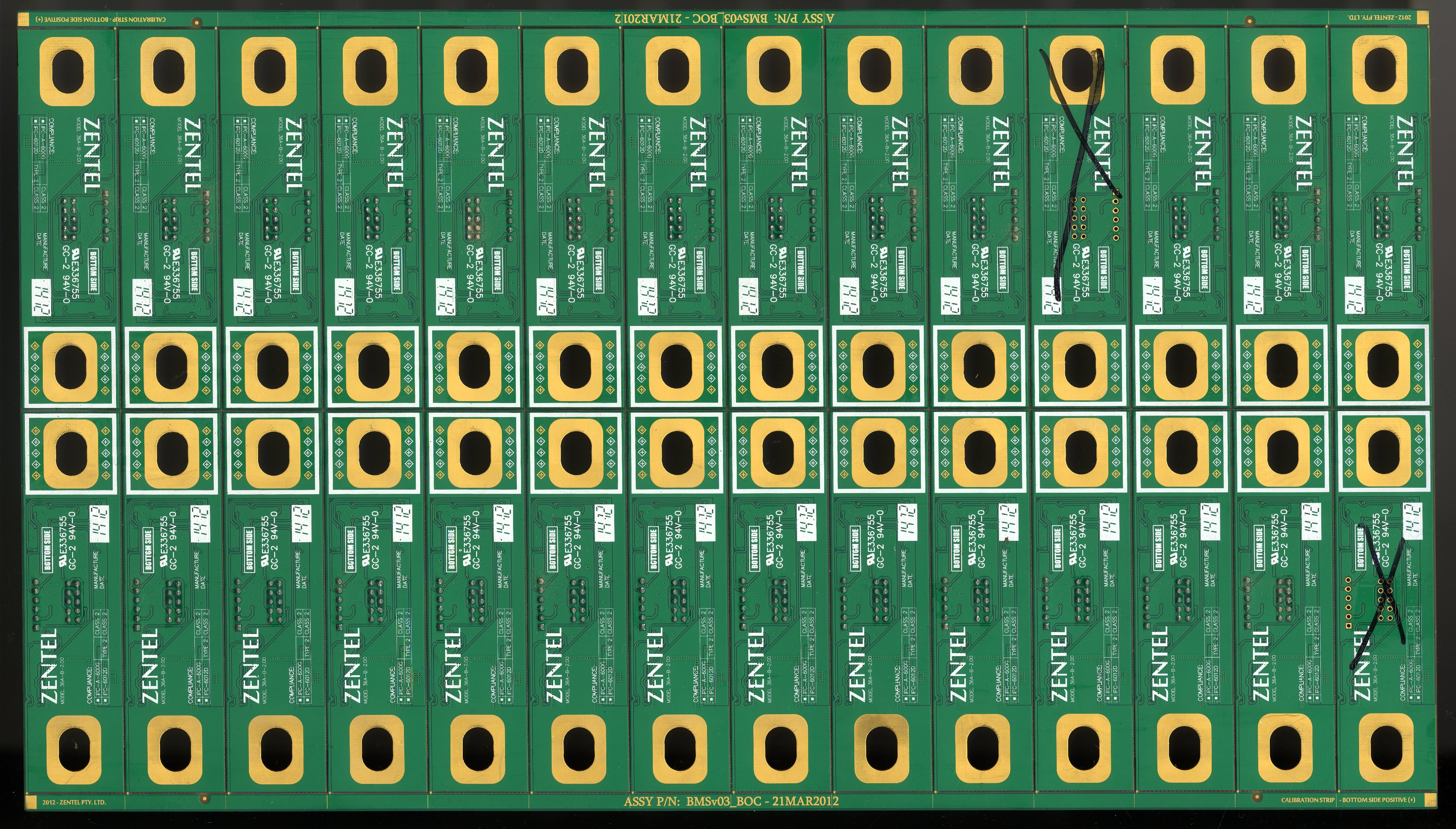

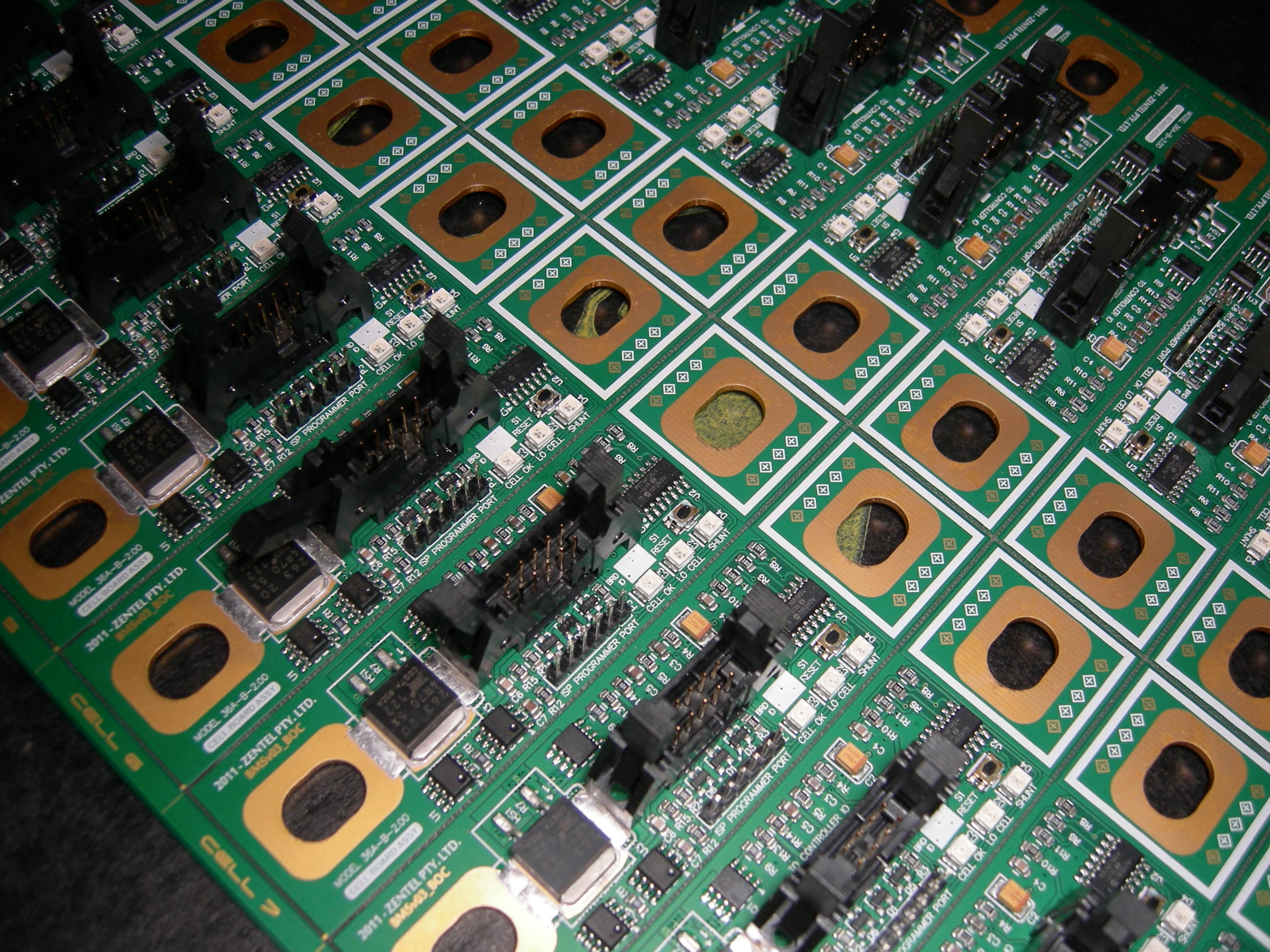

BMS ON CELL (BATTERY)

Assembly ID

BOCv03

Company

Zentel

Function

Battery System for Transport

Primary Device

PIC16F1825

Technology

12 track/10 space/30 via

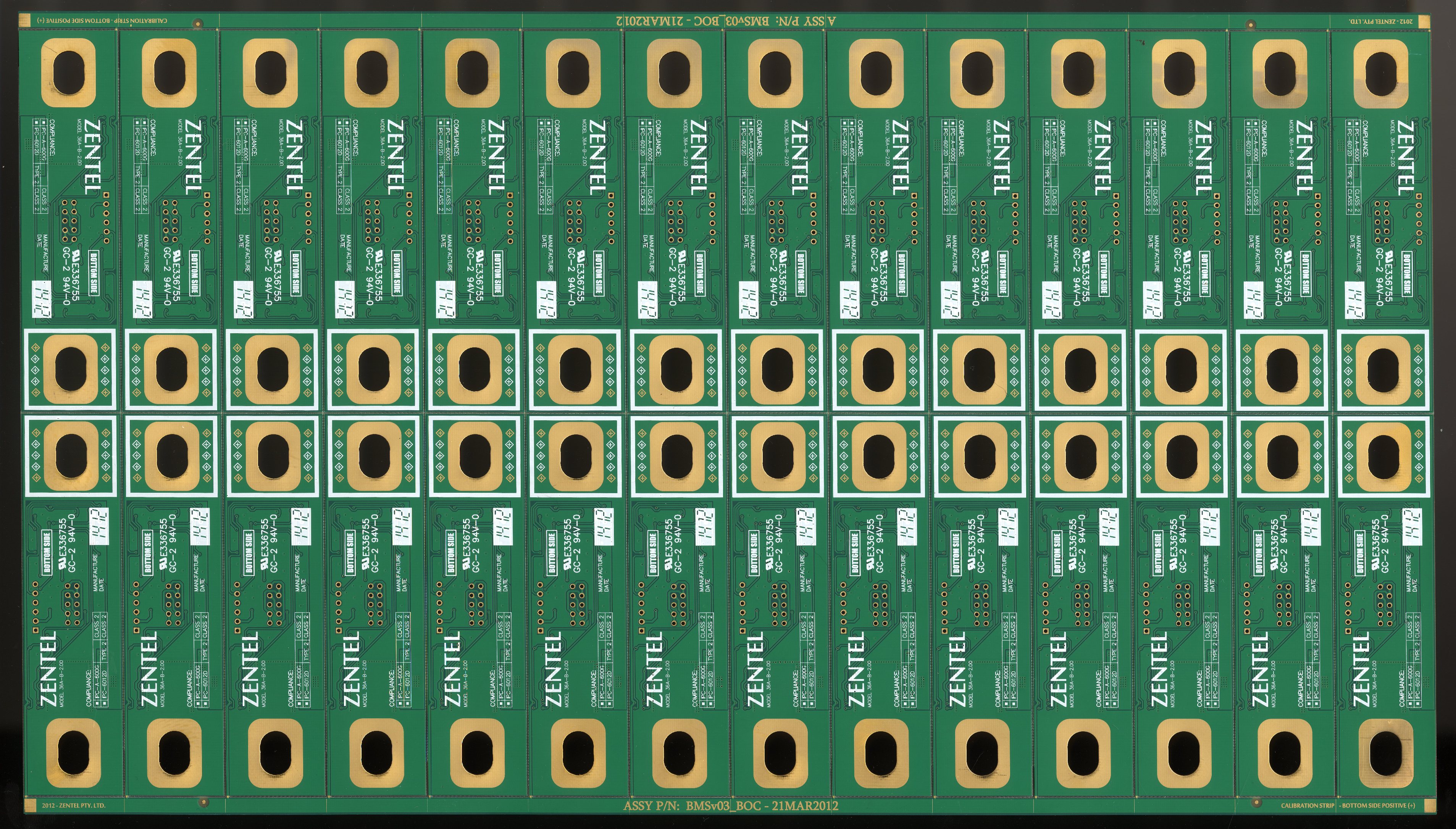

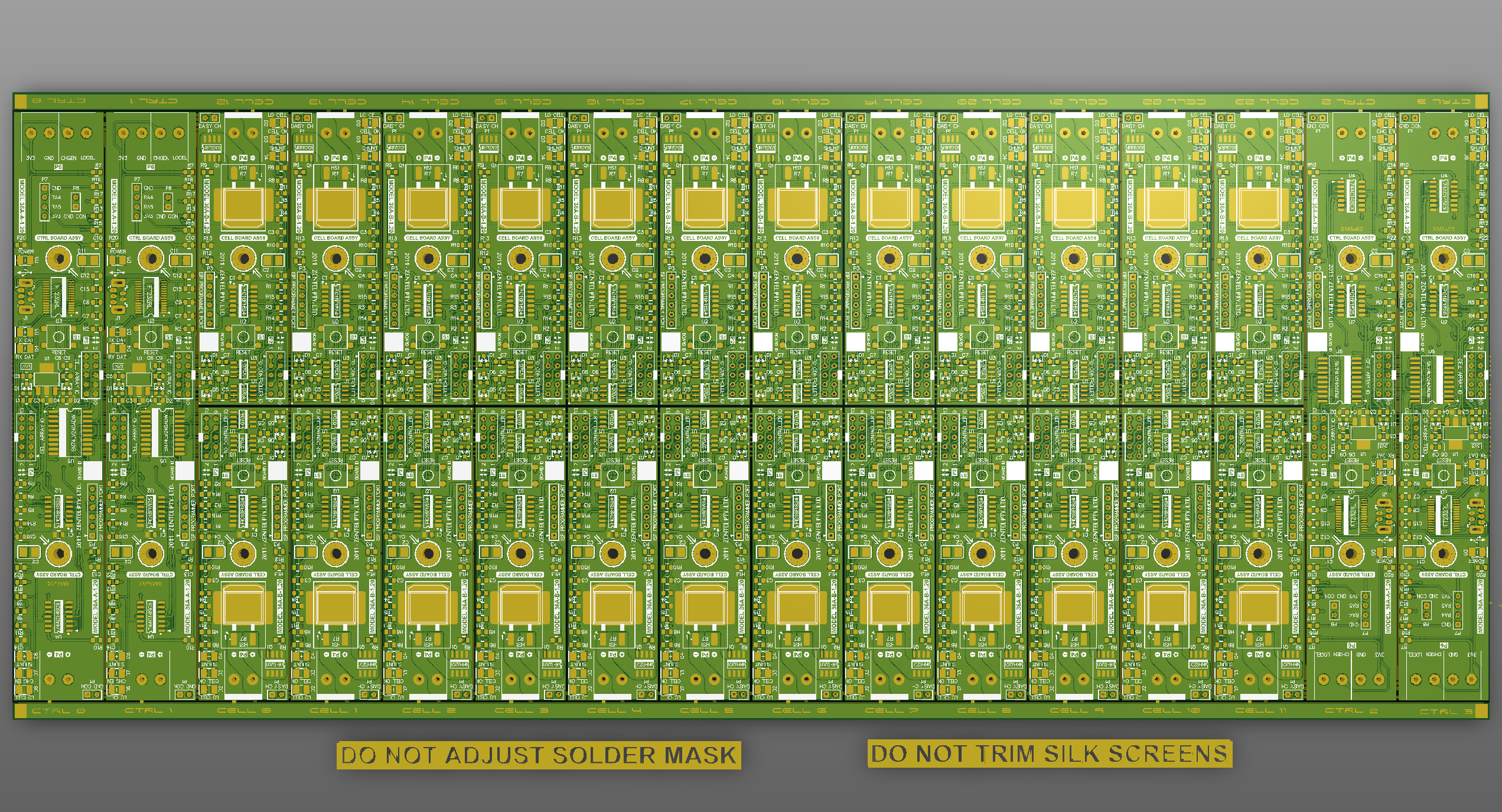

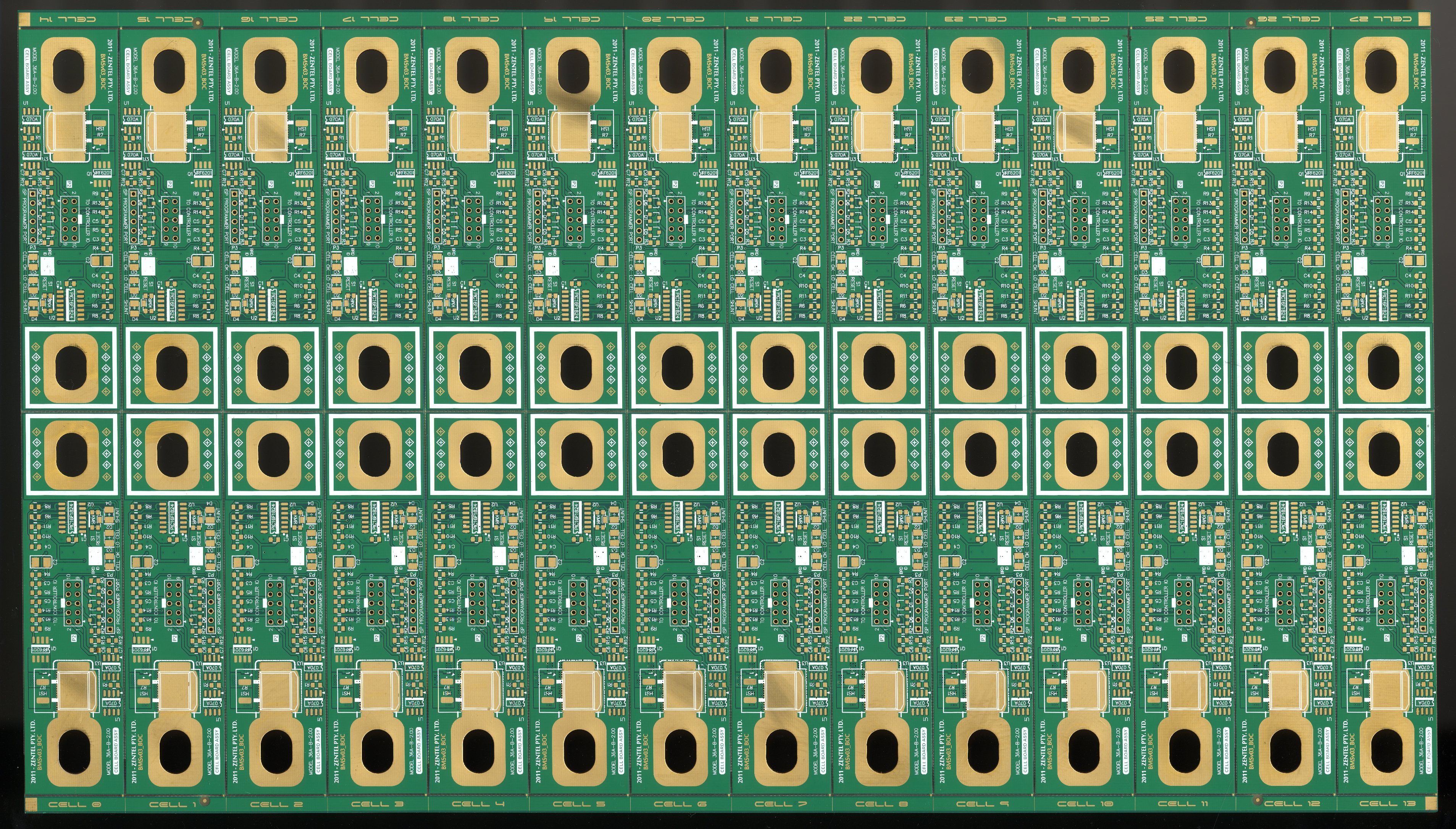

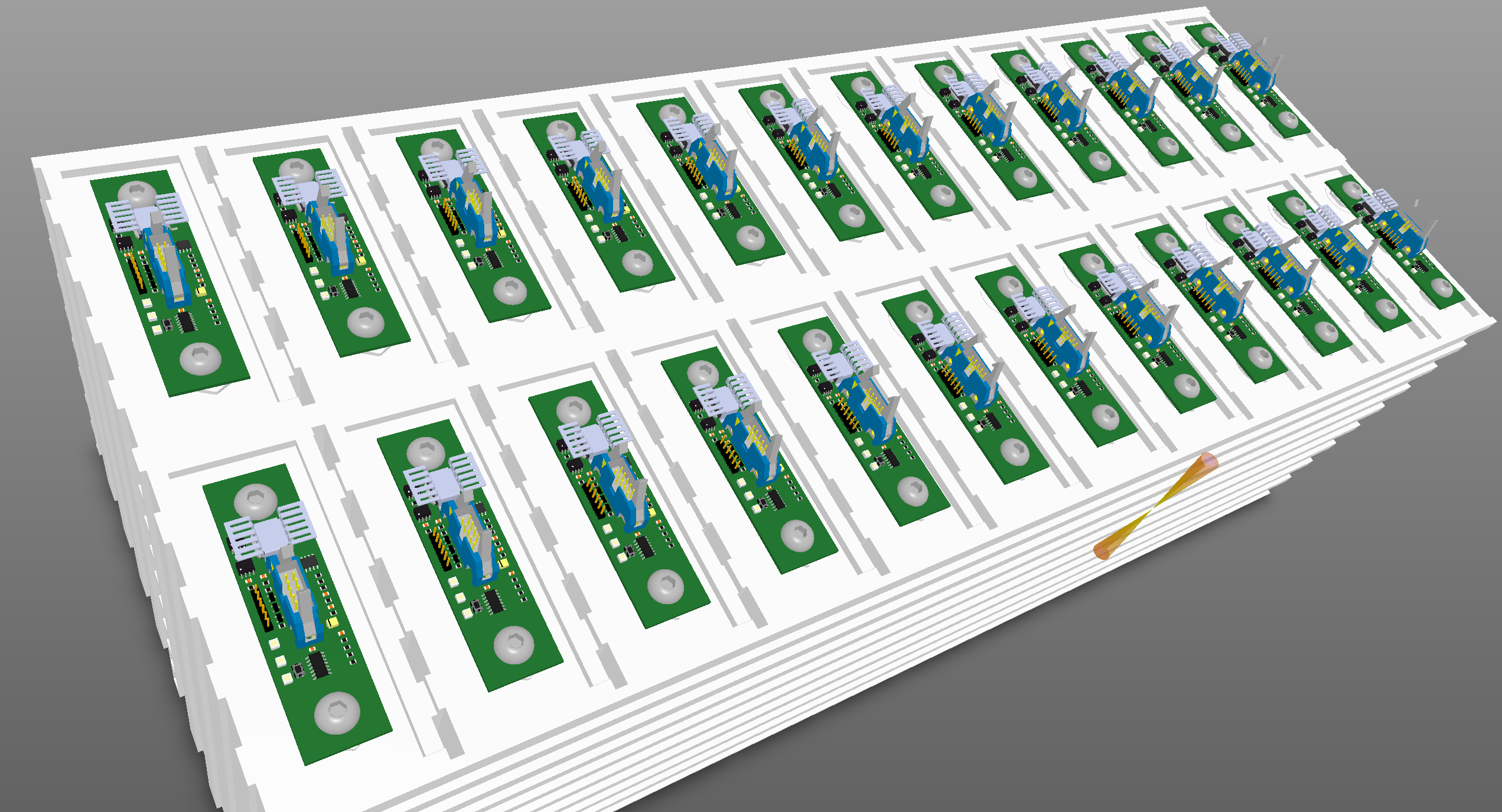

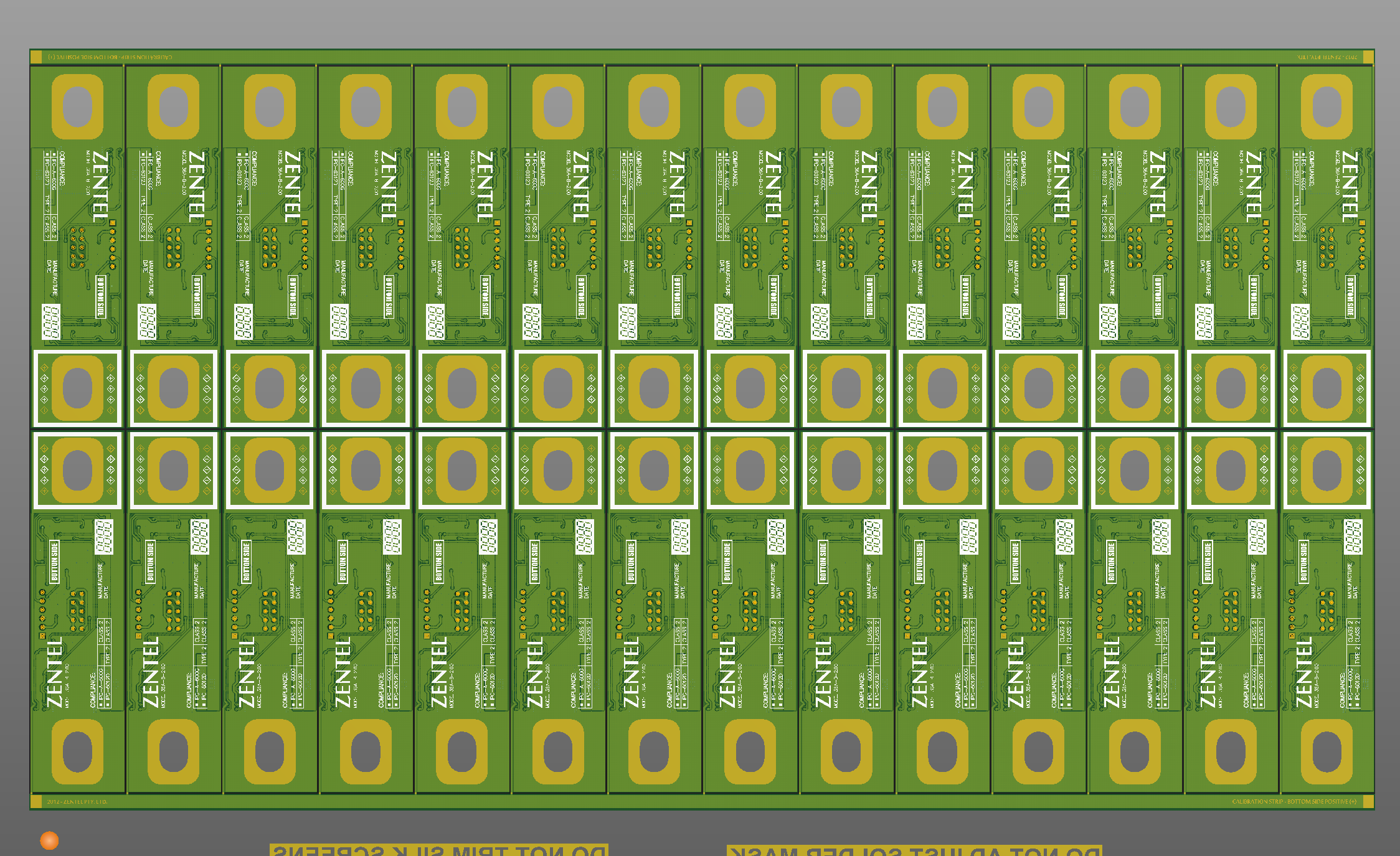

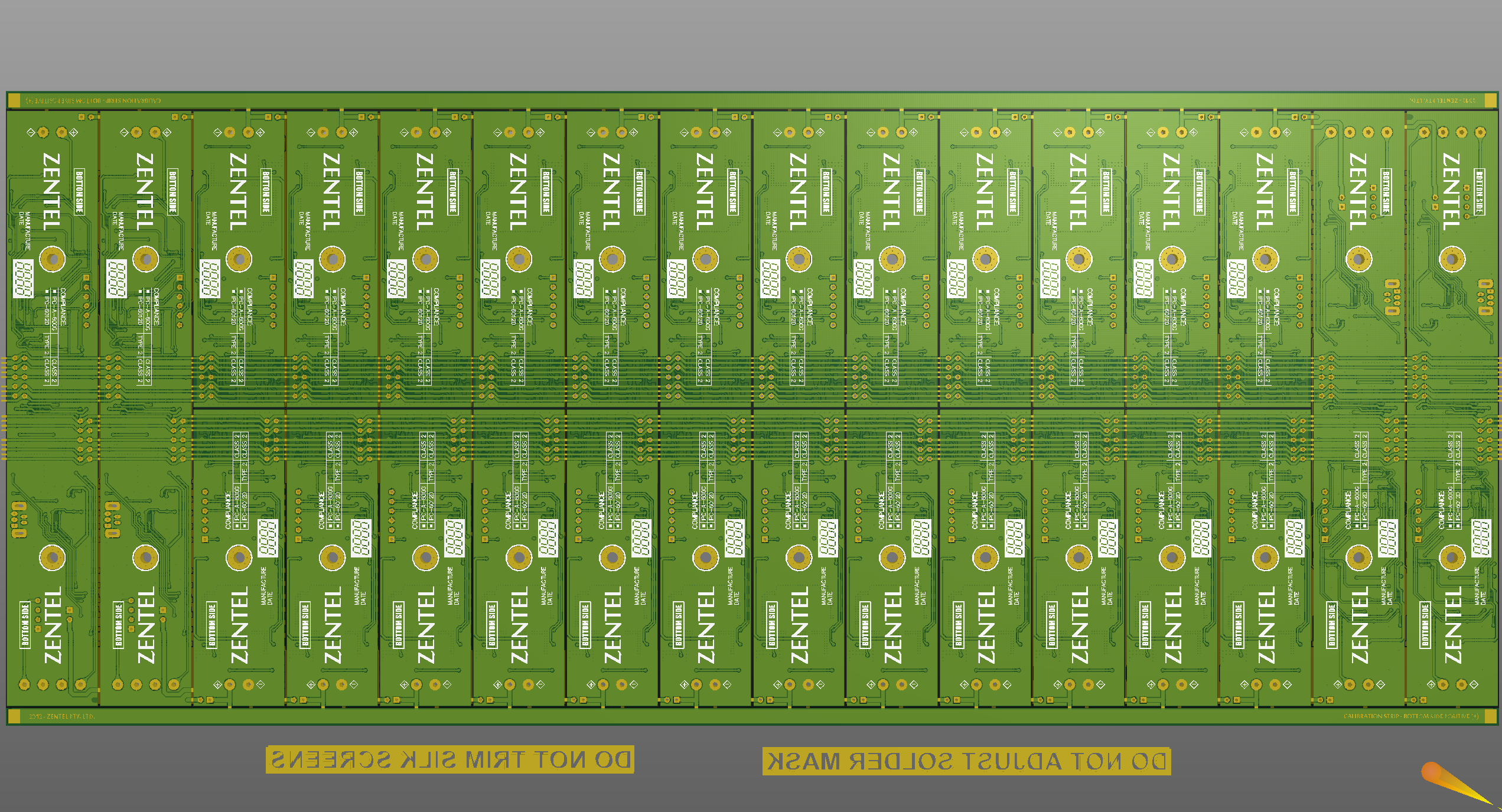

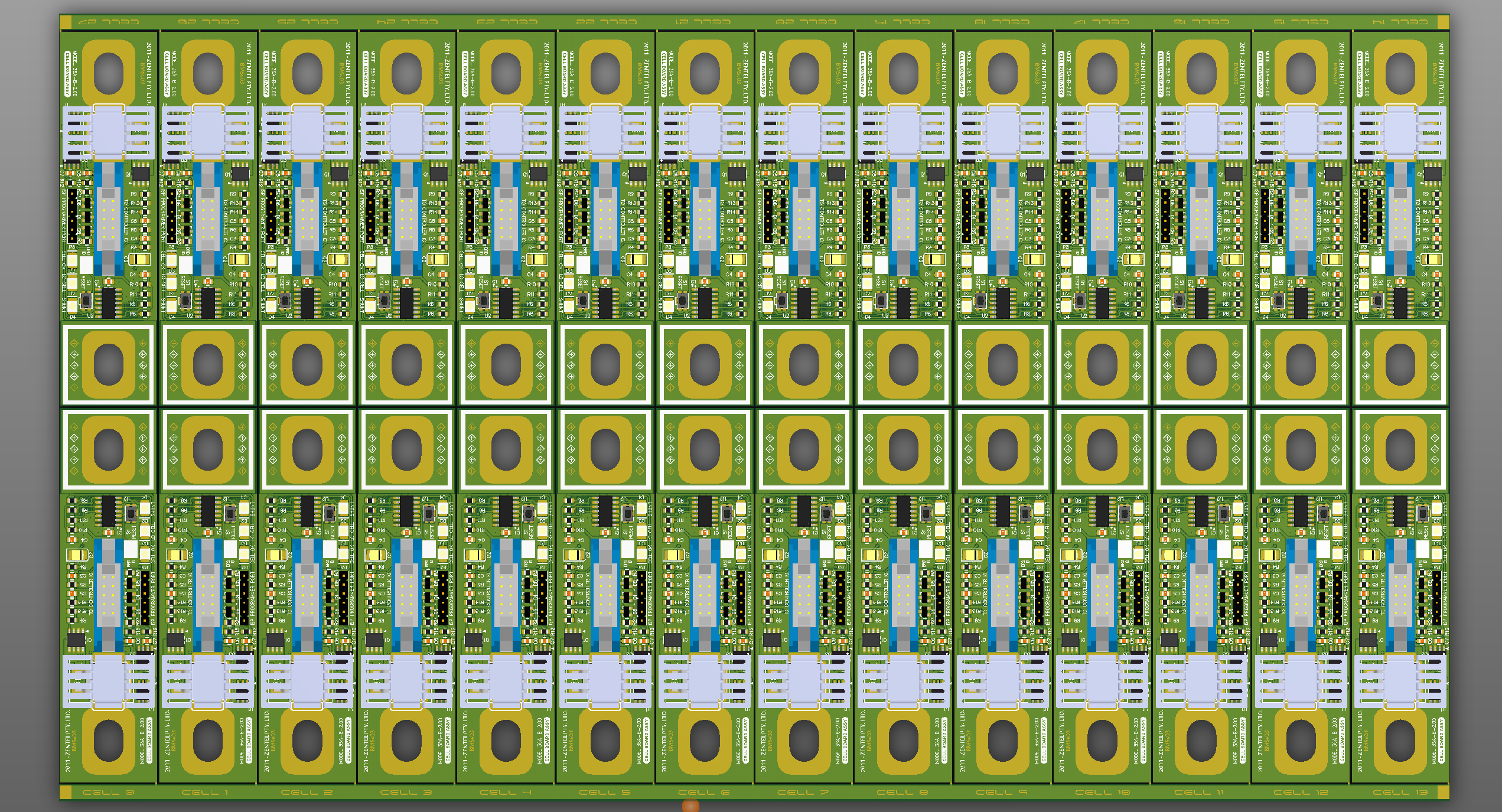

PCB Build Specification

2 Layer, 1/2oz,  MASK, ENIG, FR4

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

General Circuits (CHINA)

CAD Application

Altium Designer R12

Prototype Availability

Yes
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
