Date of Design

2012

Product

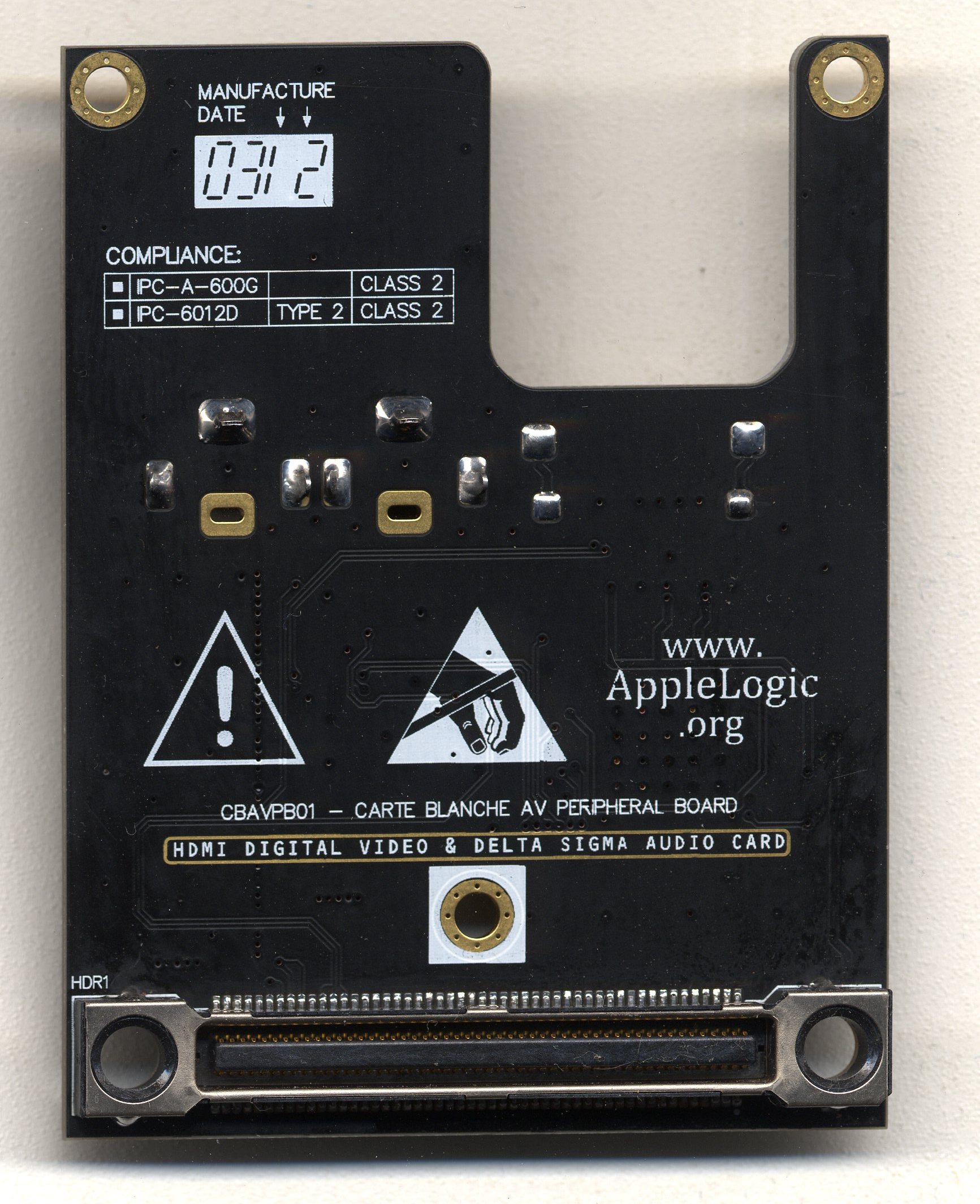

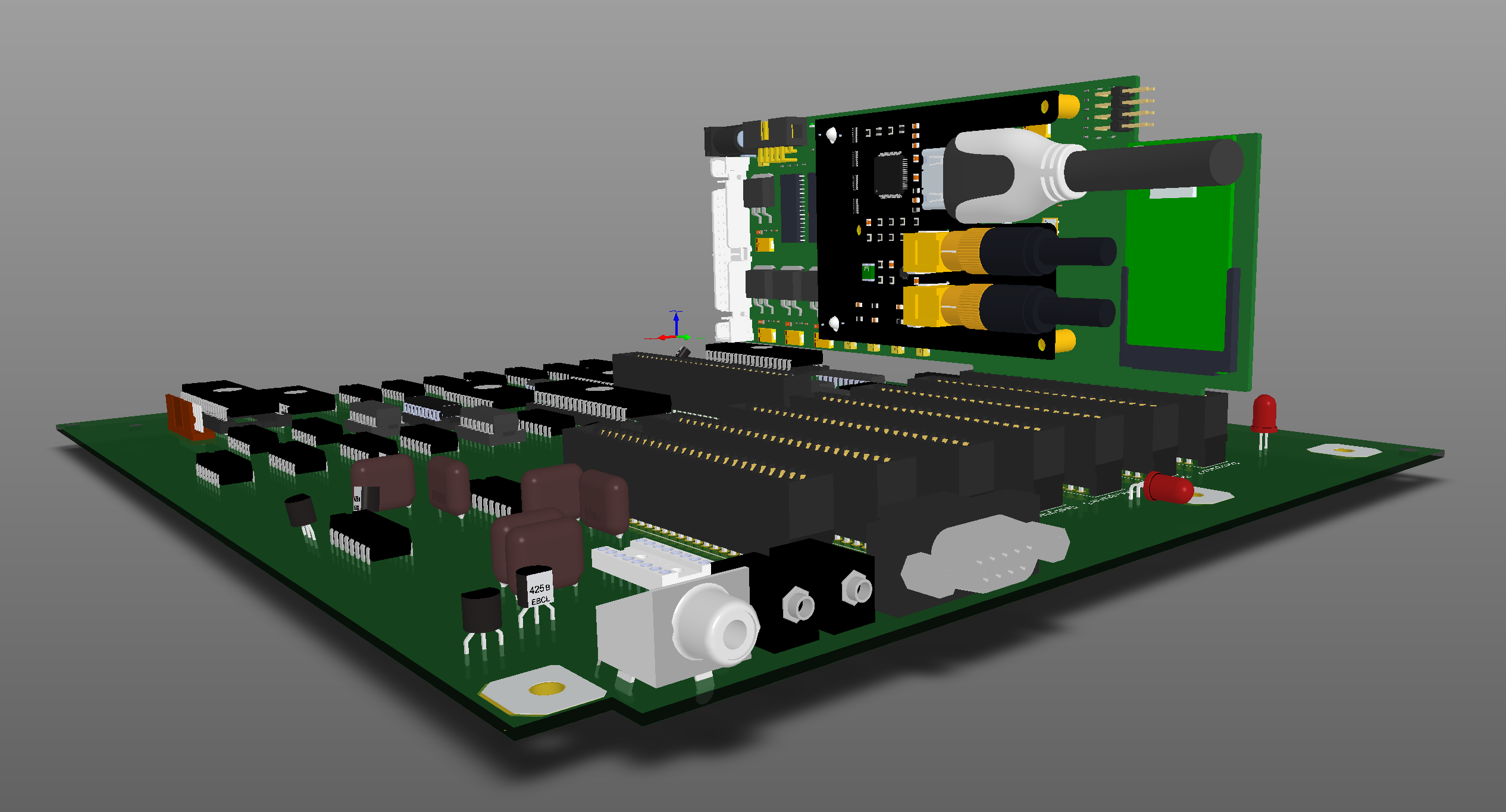

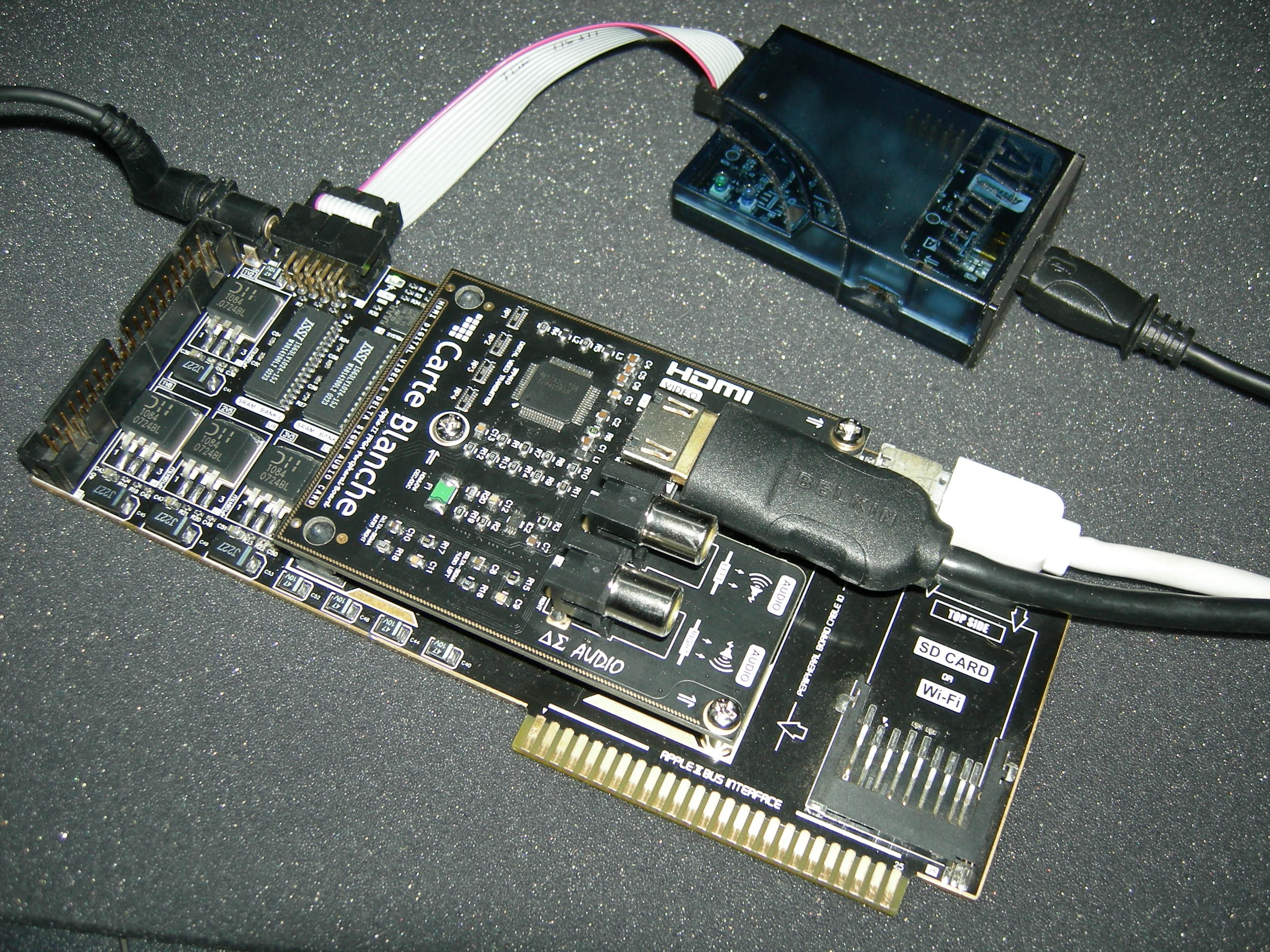

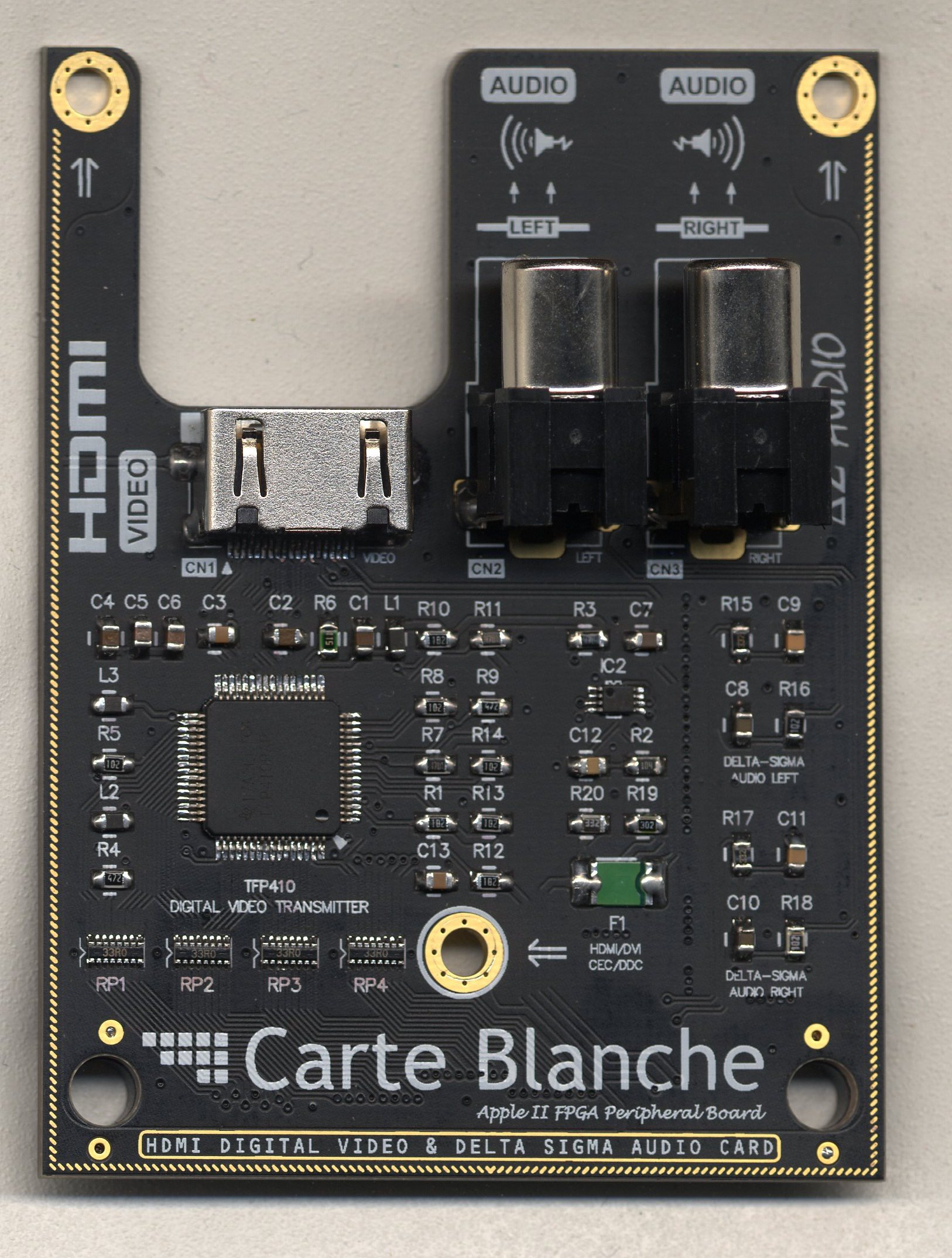

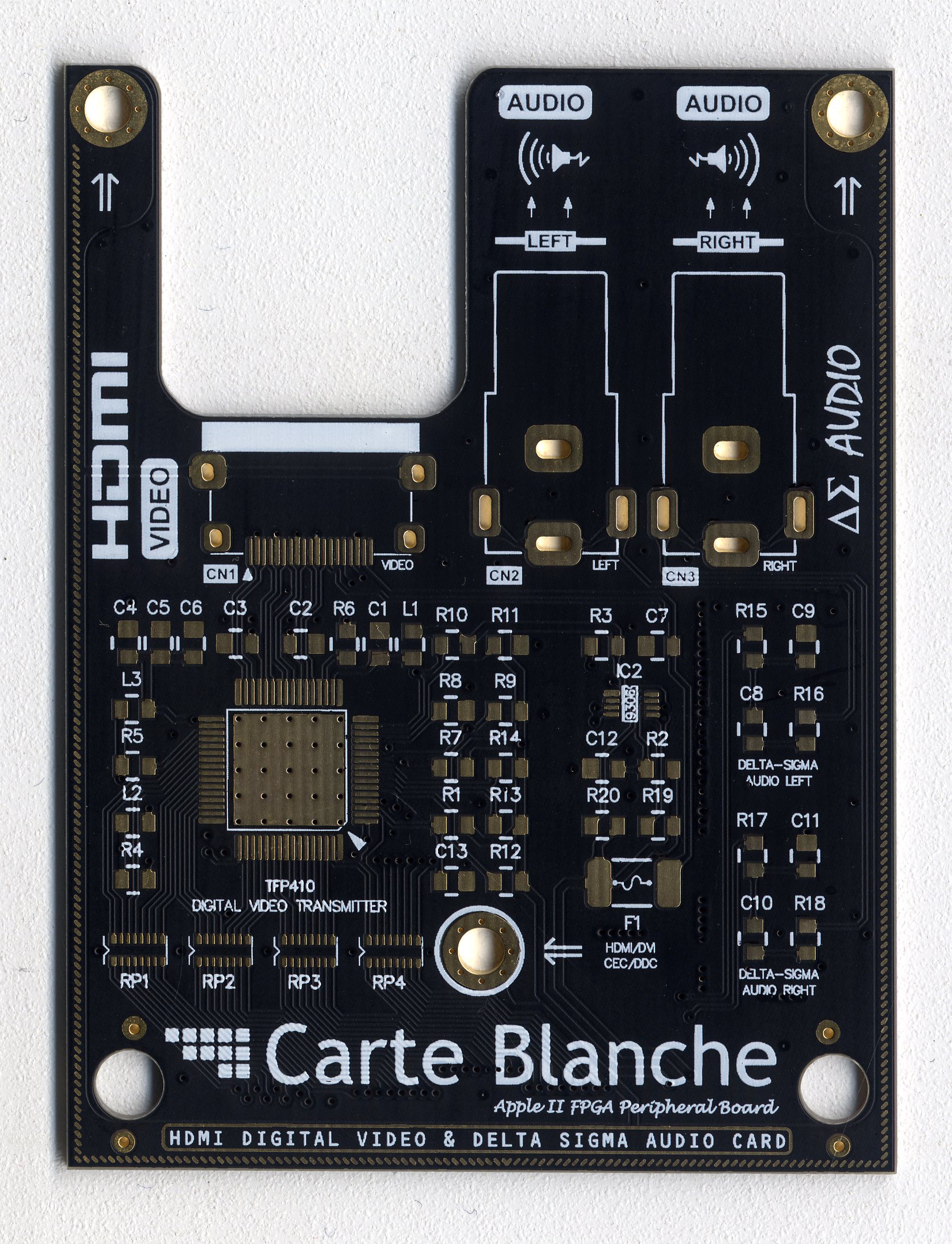

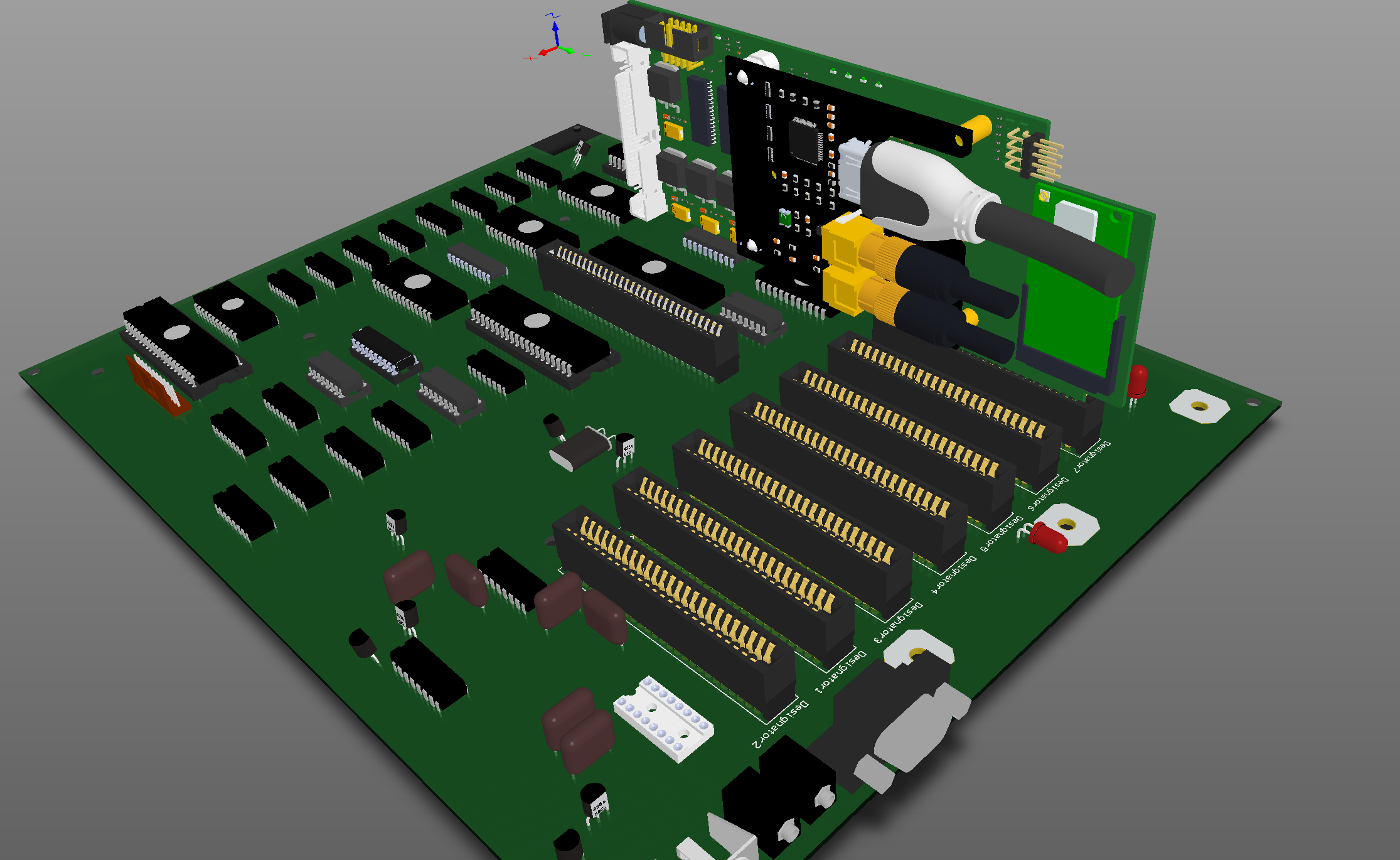

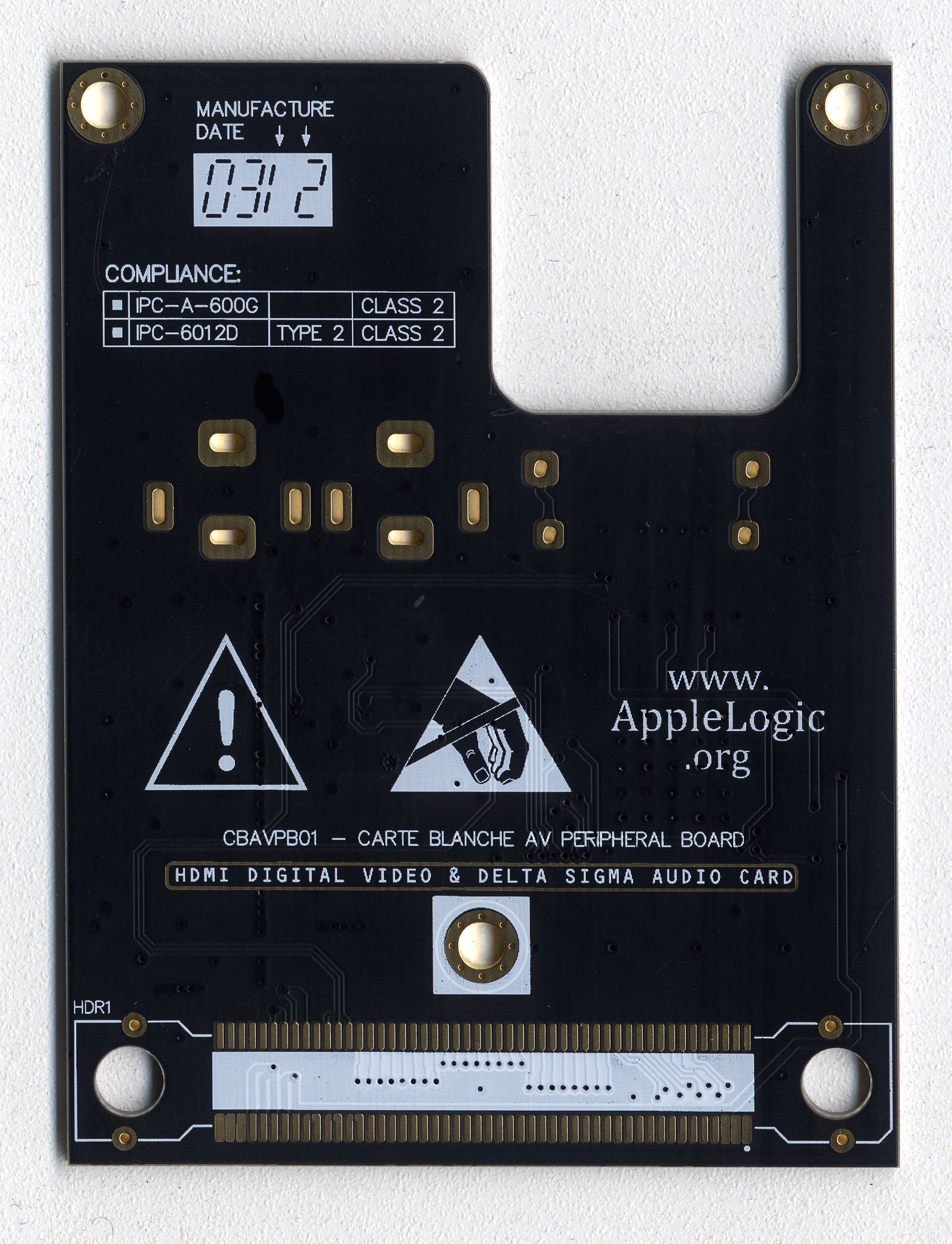

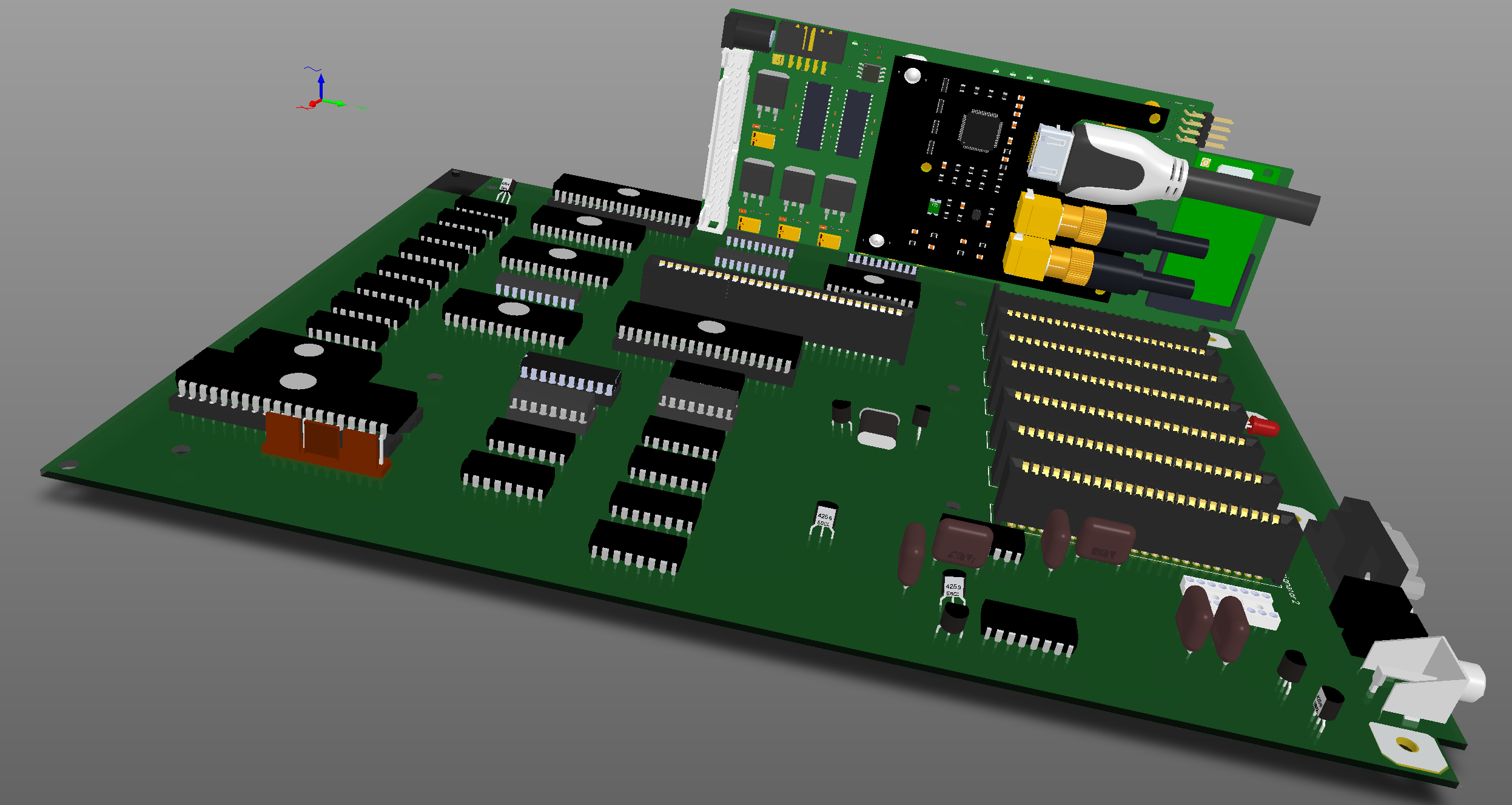

HDMI/DVI AV Peripheral Bd for Apple II

Assembly ID

CBAVPB01

Company

Novasar

Function

Digital AV card for Carte Blanche

Primary Device

TI TFP410A (QFP)

Technology

7 track/7 space/28 via

PCB Build Specification

2 Layer, 1/2oz, MASK, ENIG, FR4

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

PCB Cart (China)

CAD Application

Altium Designer R10

Prototype Availability

Yes

Downloads

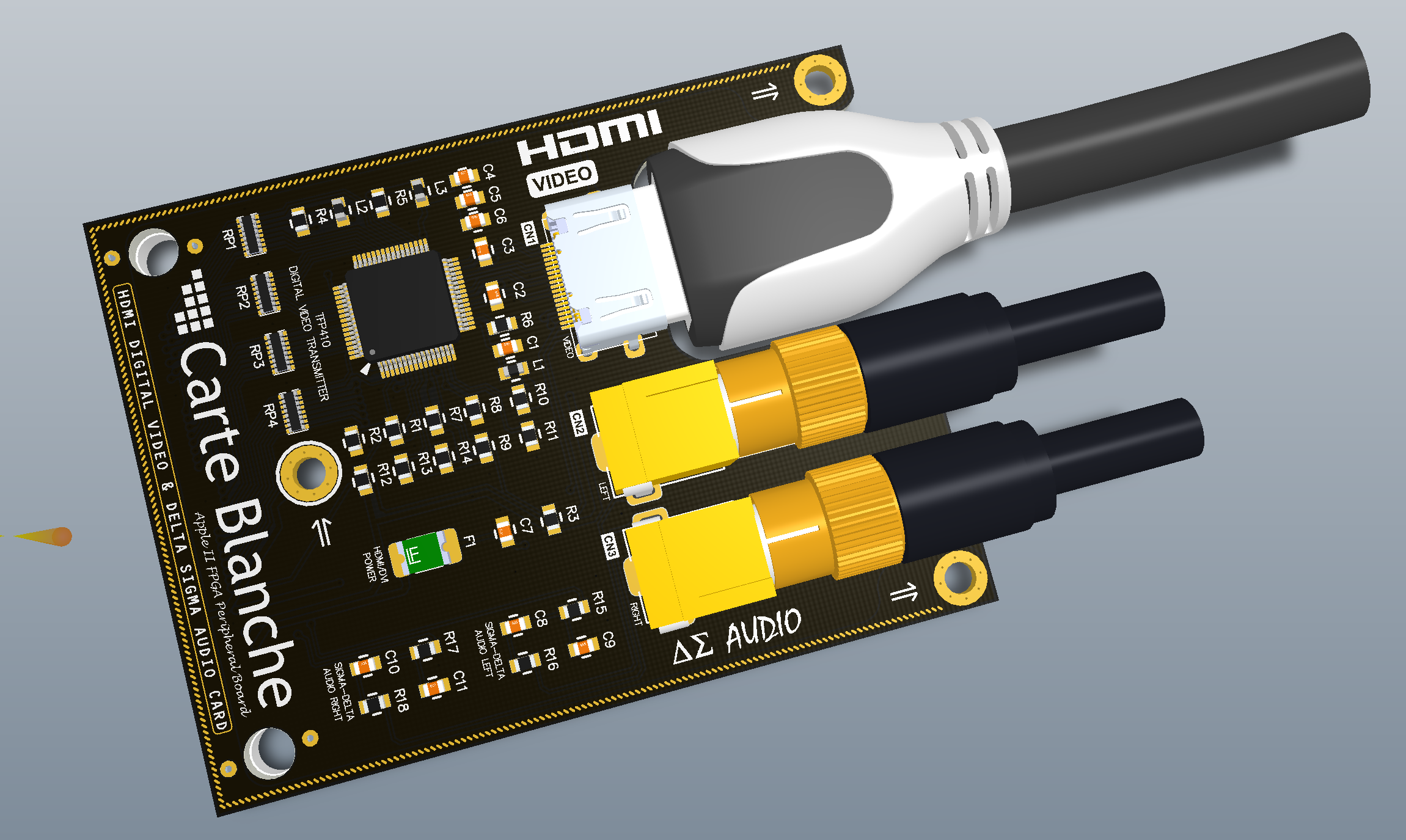

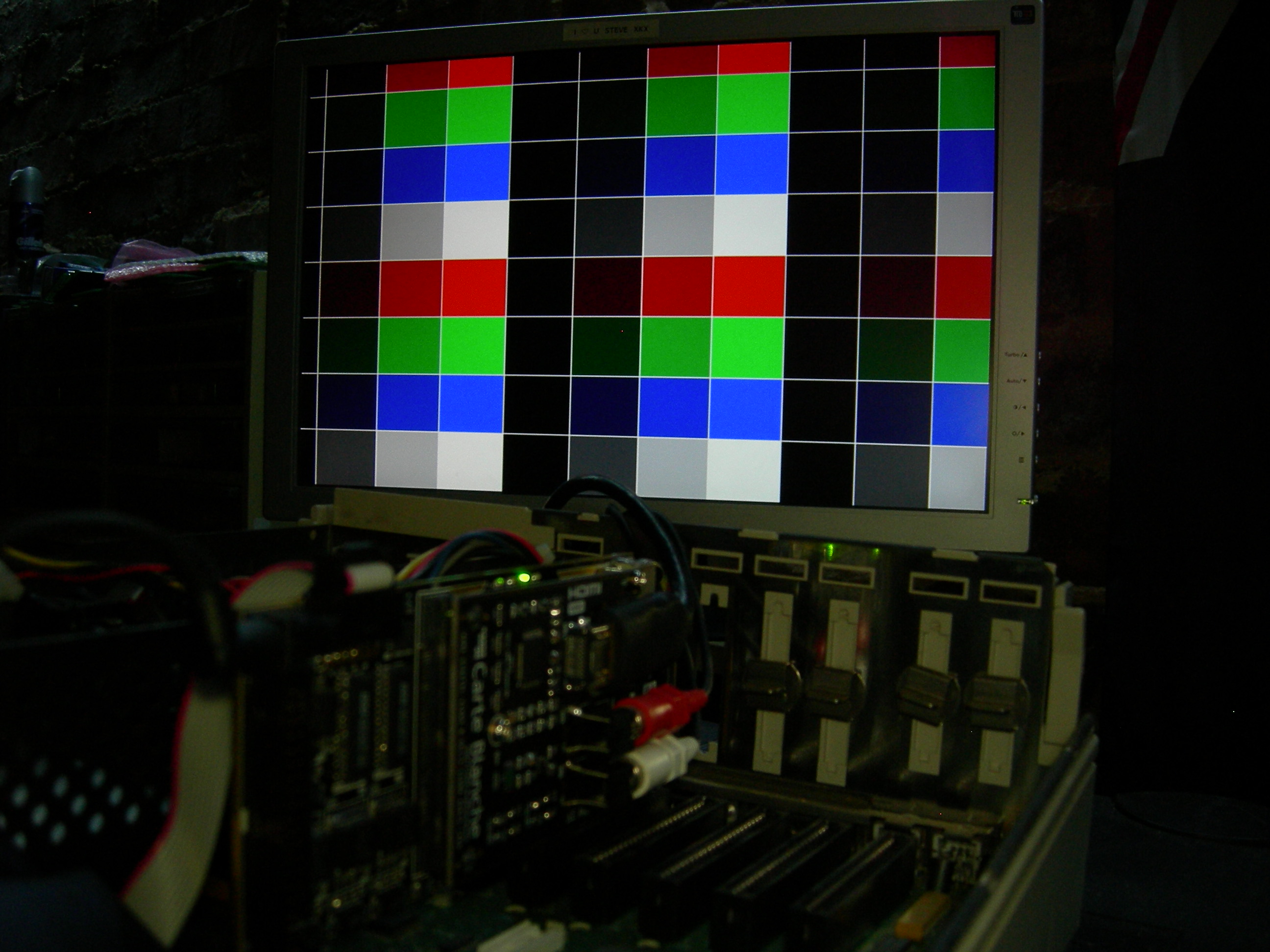

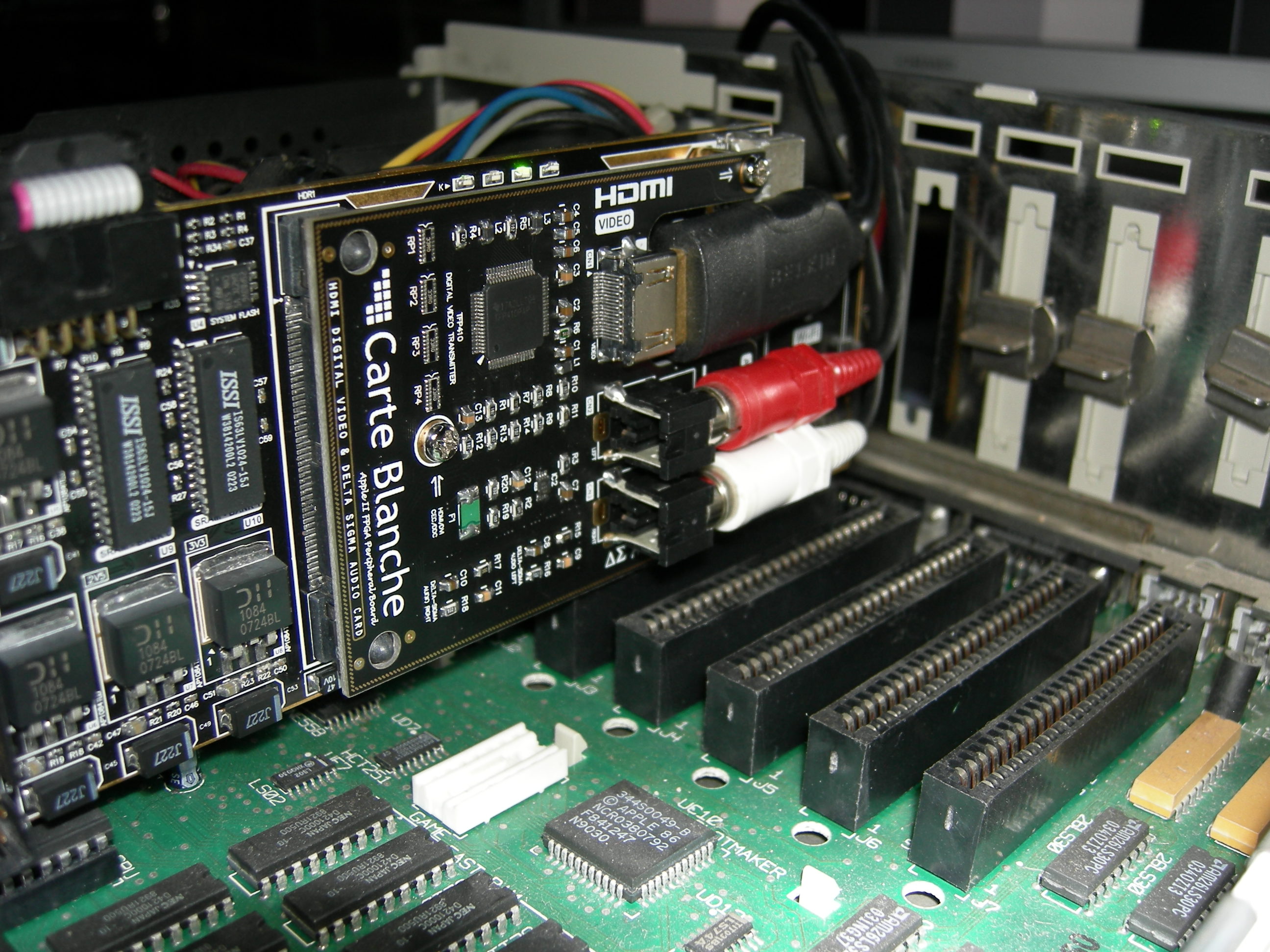

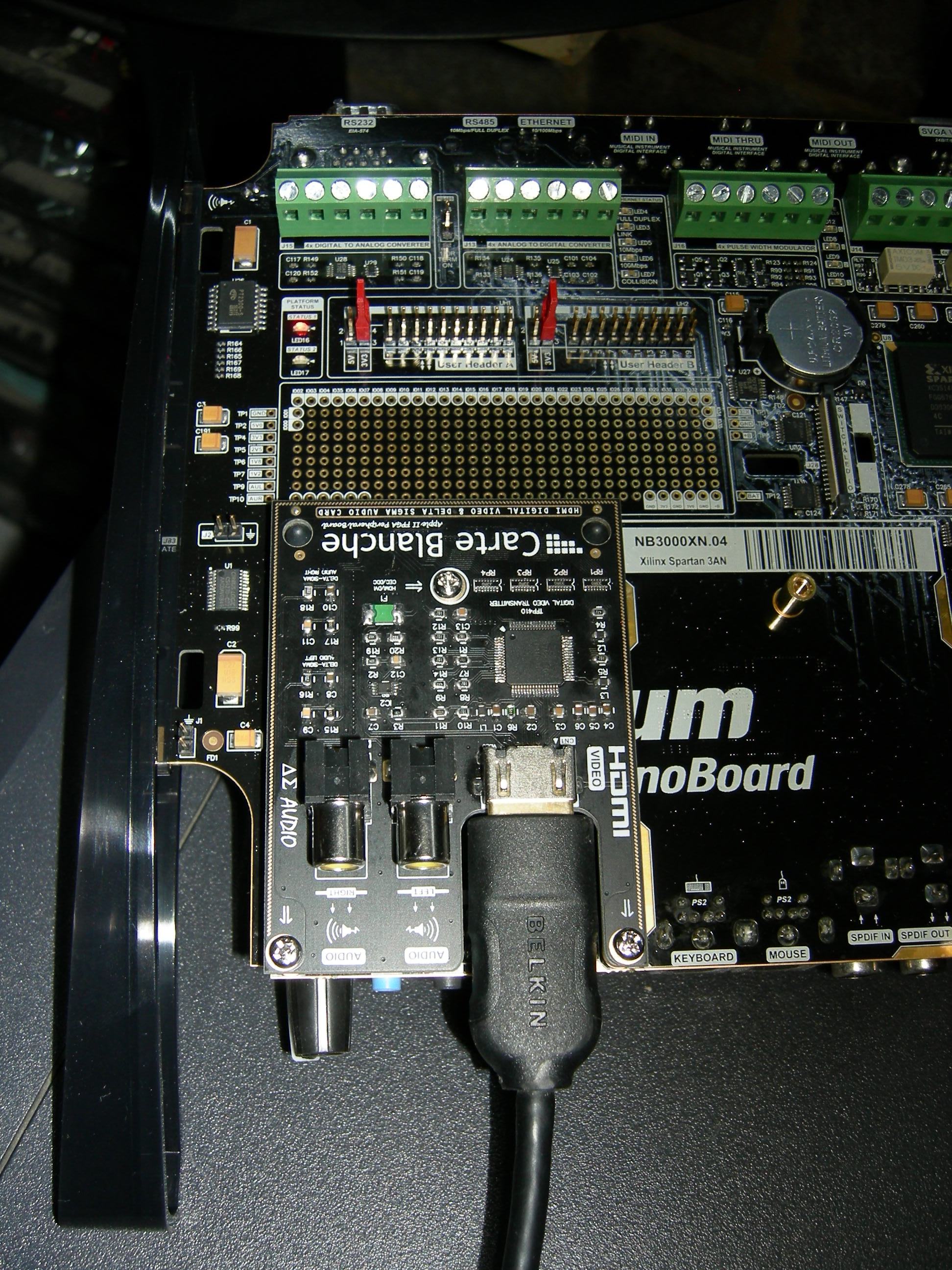

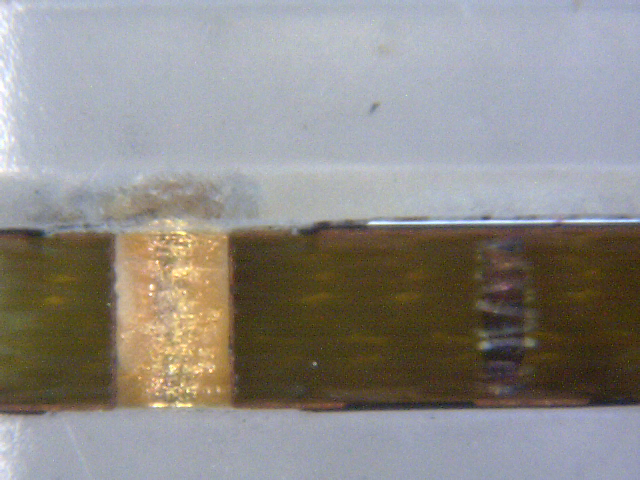

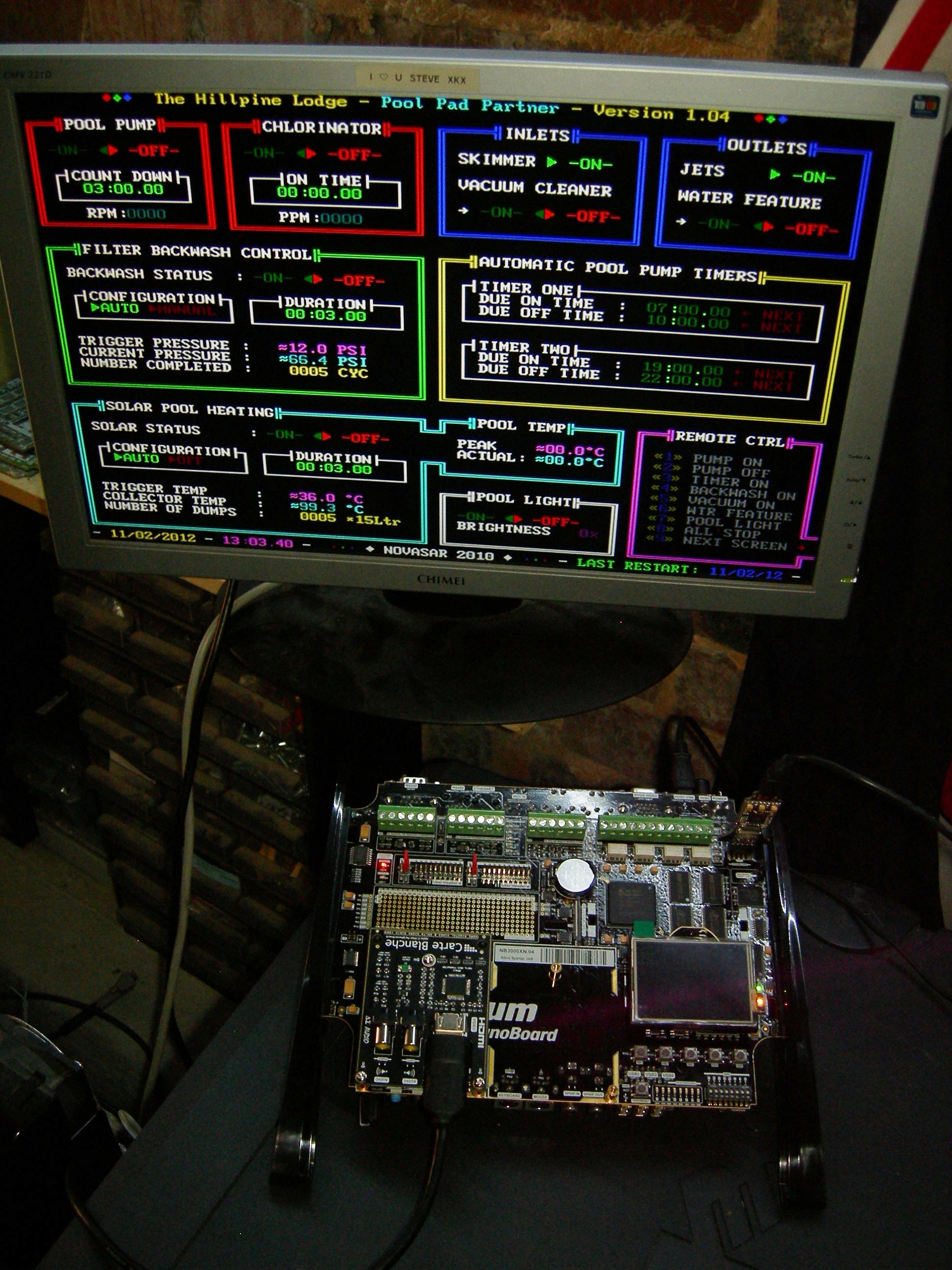

PICTURES OF DVI/HDMI OUTPUT
SCHEMATIC - CBAVPB01 (PDF)
BITSTREAM - CBAVPB01_TST (BIT)

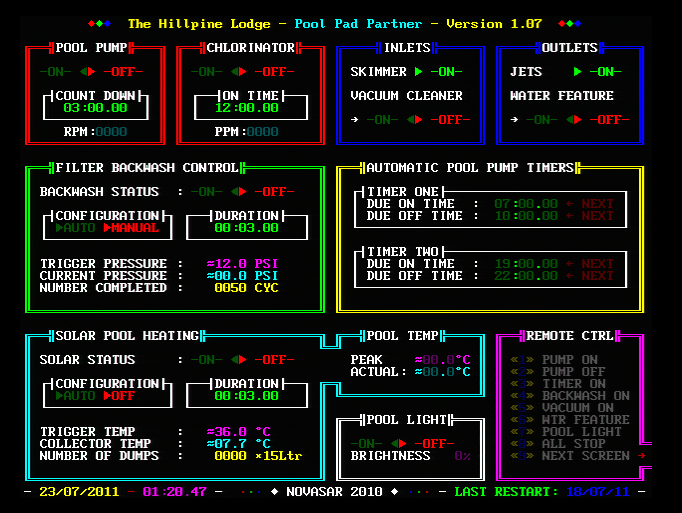

BITSTREAM - PPP_HDMI_TST (BIT)
BITSTREAM - CBAVPB01v01 (BIT)
GERBERS - CBAVPB01_GERBERS (ZIP)
