Date of Design
2004
Product

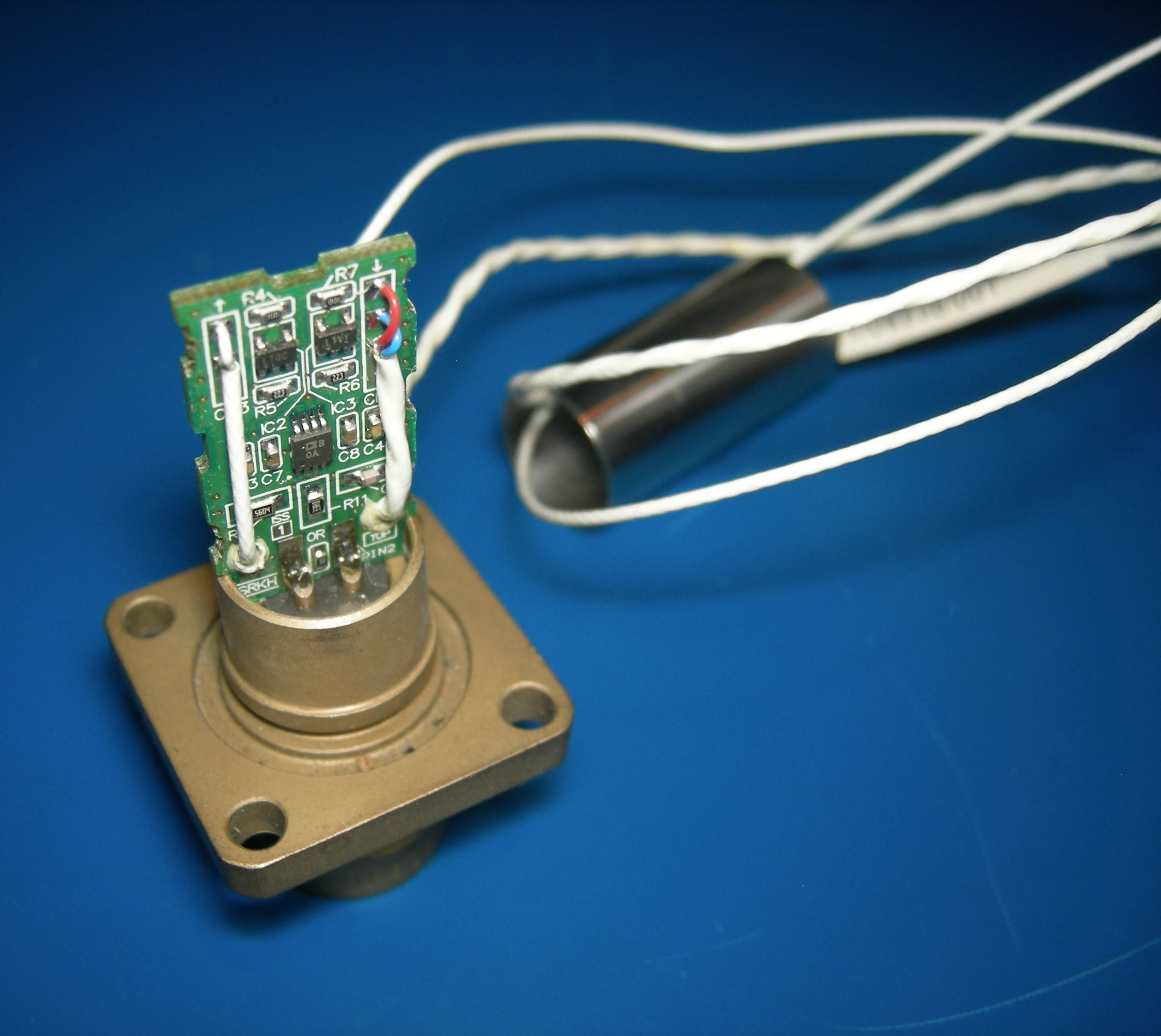

CA/DA/FA Intercept Sonar Amplifier
Assembly ID
56936359
Company
Function
Low Noise Differential Charge Amp
Primary Device
None (Discretes)
Technology
8 track/8 space/30 via

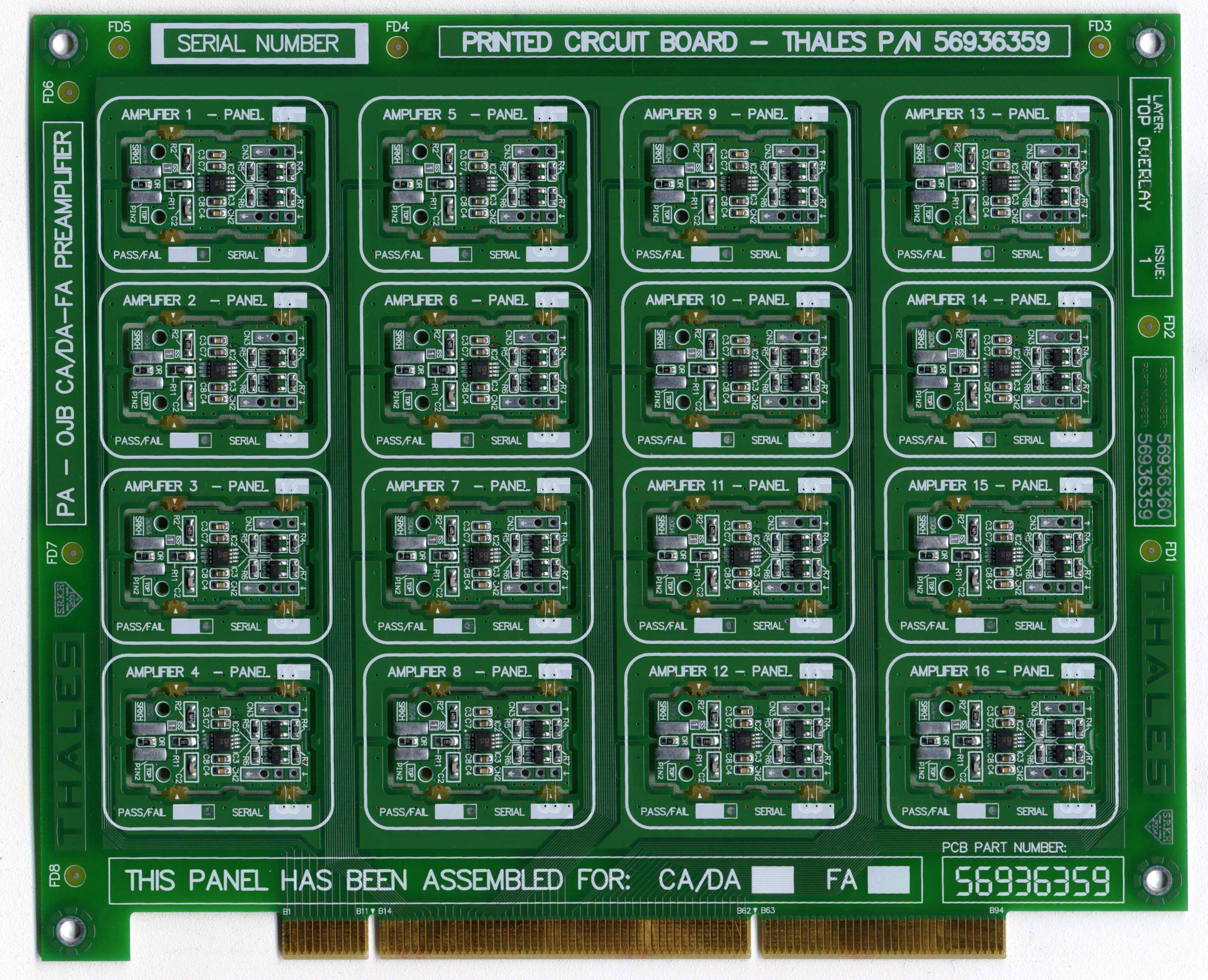

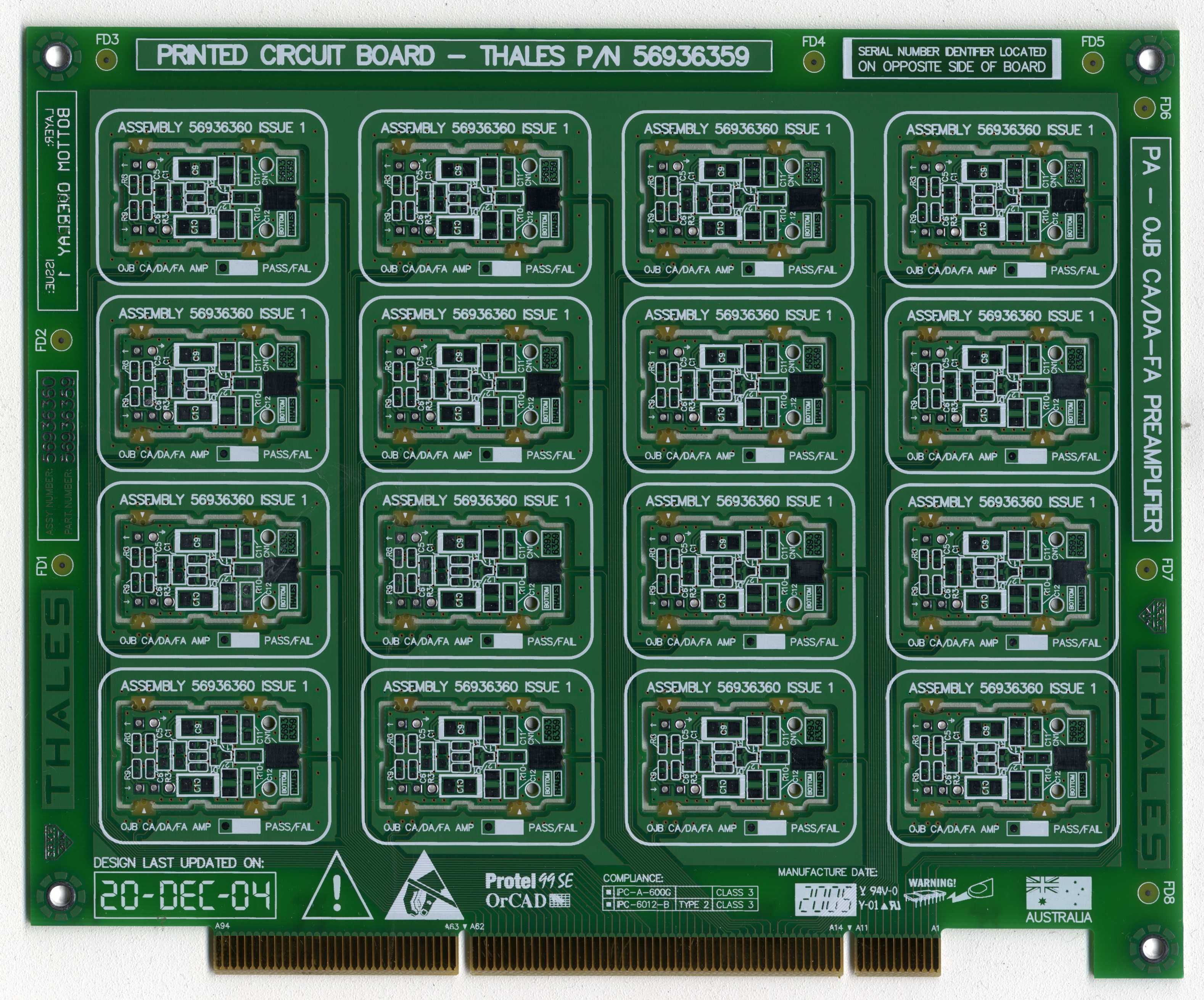

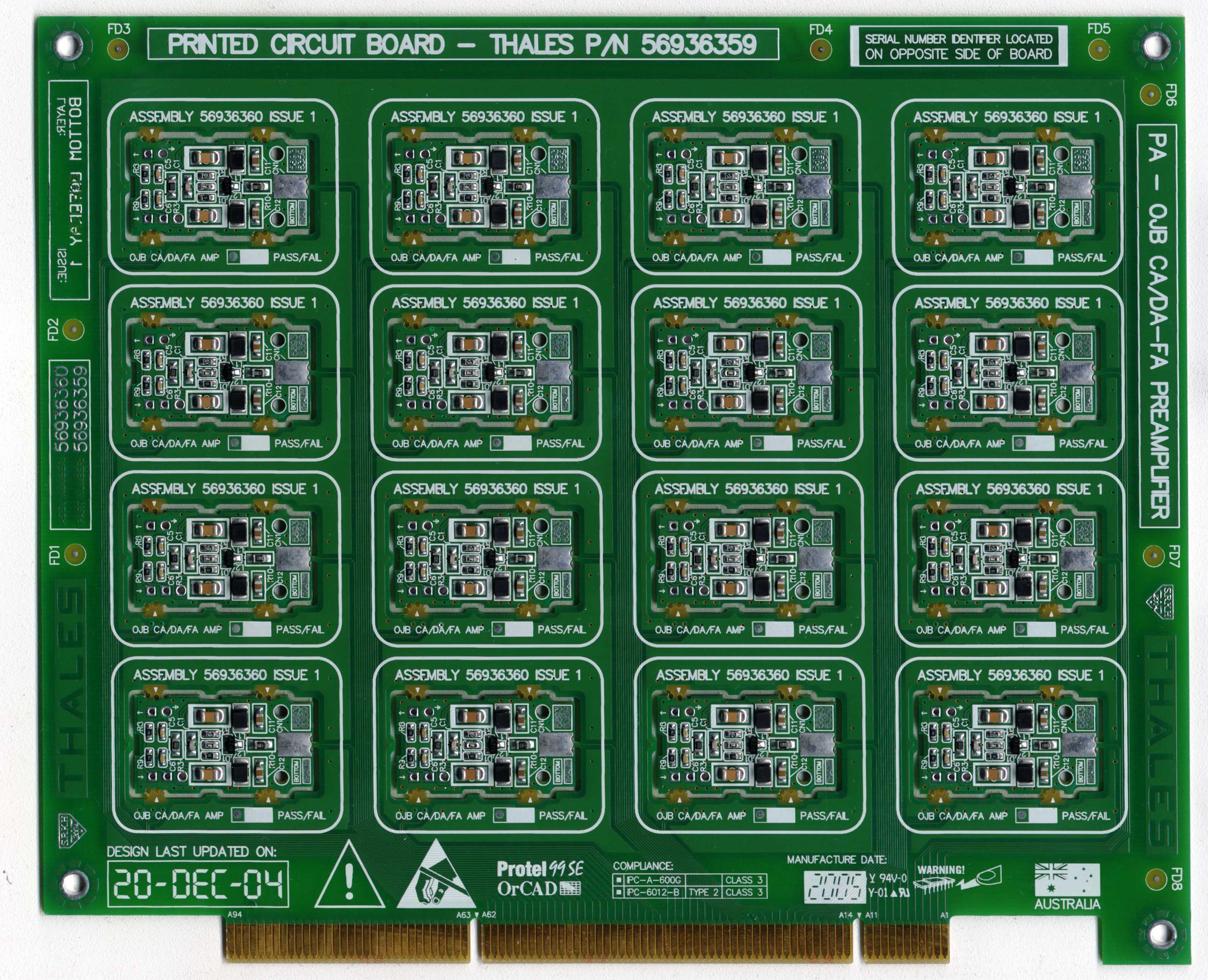

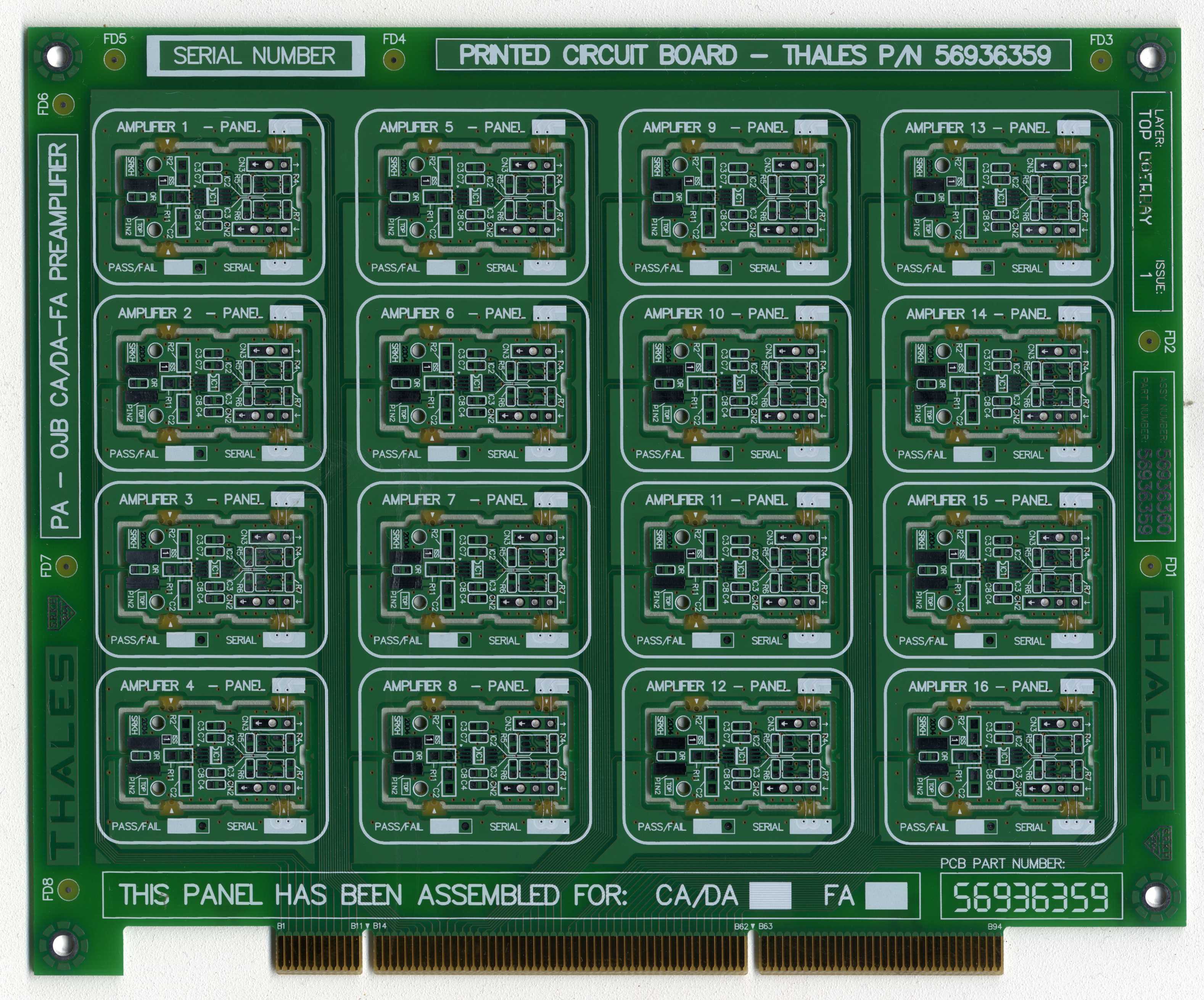

PCB Build Specification
2 Layer, 1oz, MASK, HASL, FR408
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
Precision Circuits (VIC)
CAD Application
Protel 99SE

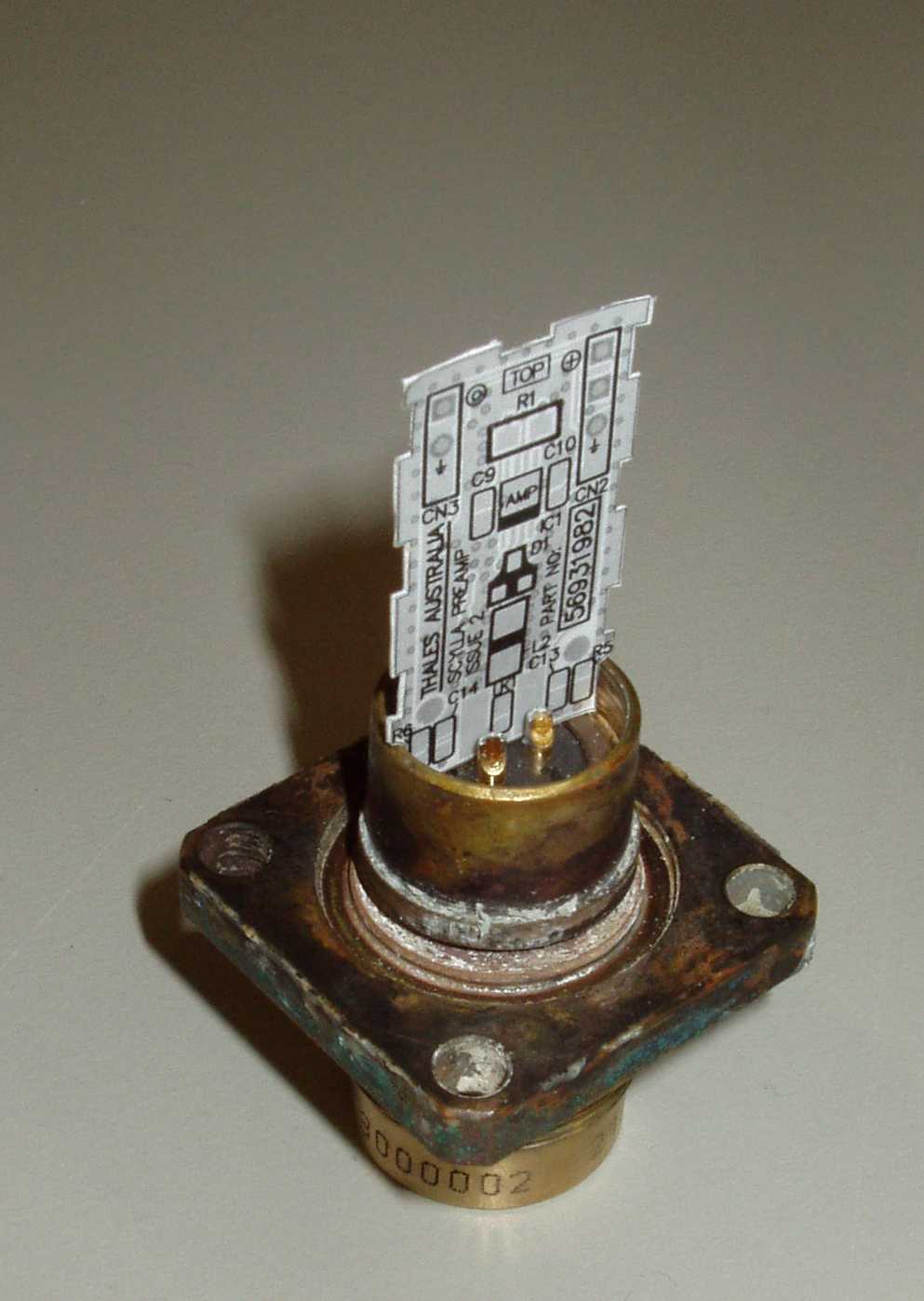

Prototype Availability
No
The following products and systems are examples of designs I have created, prototyped and manufactured.
Electronic designs by Steven Howell
The index includes lab prototypes, final production units, integrated systems and application examples.
There are no classified military designs in this list.
