Date of Design

2004

Product

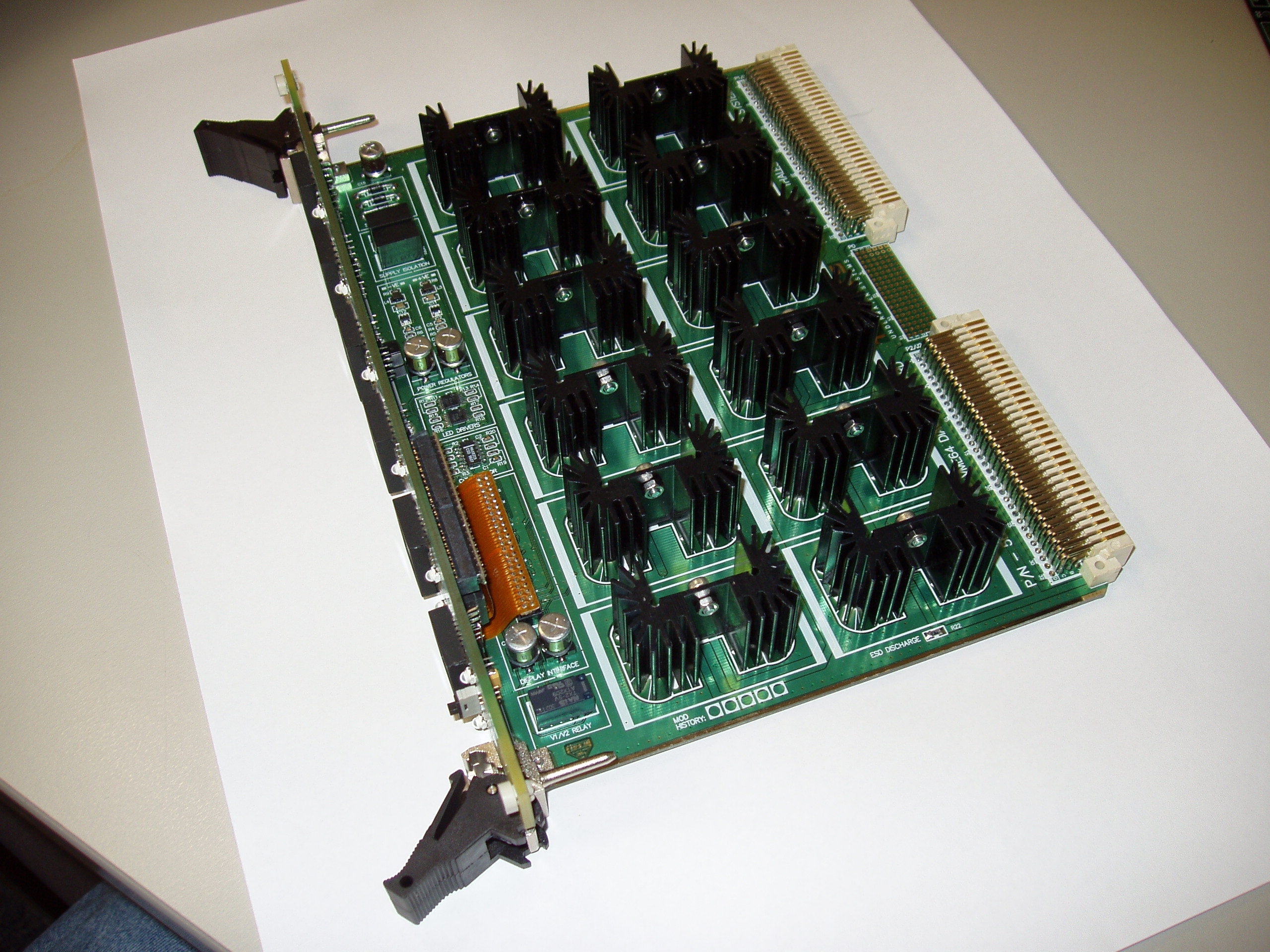

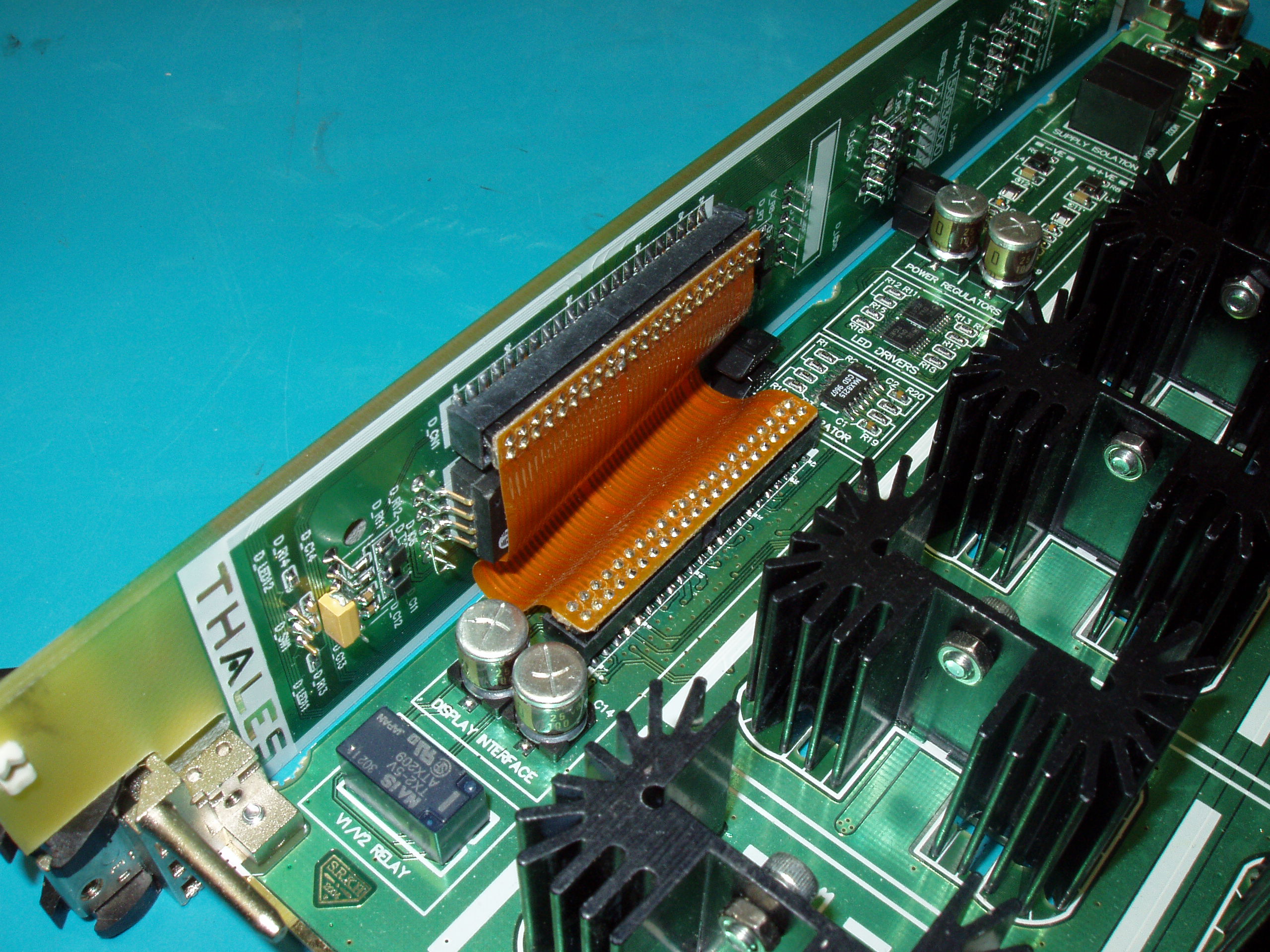

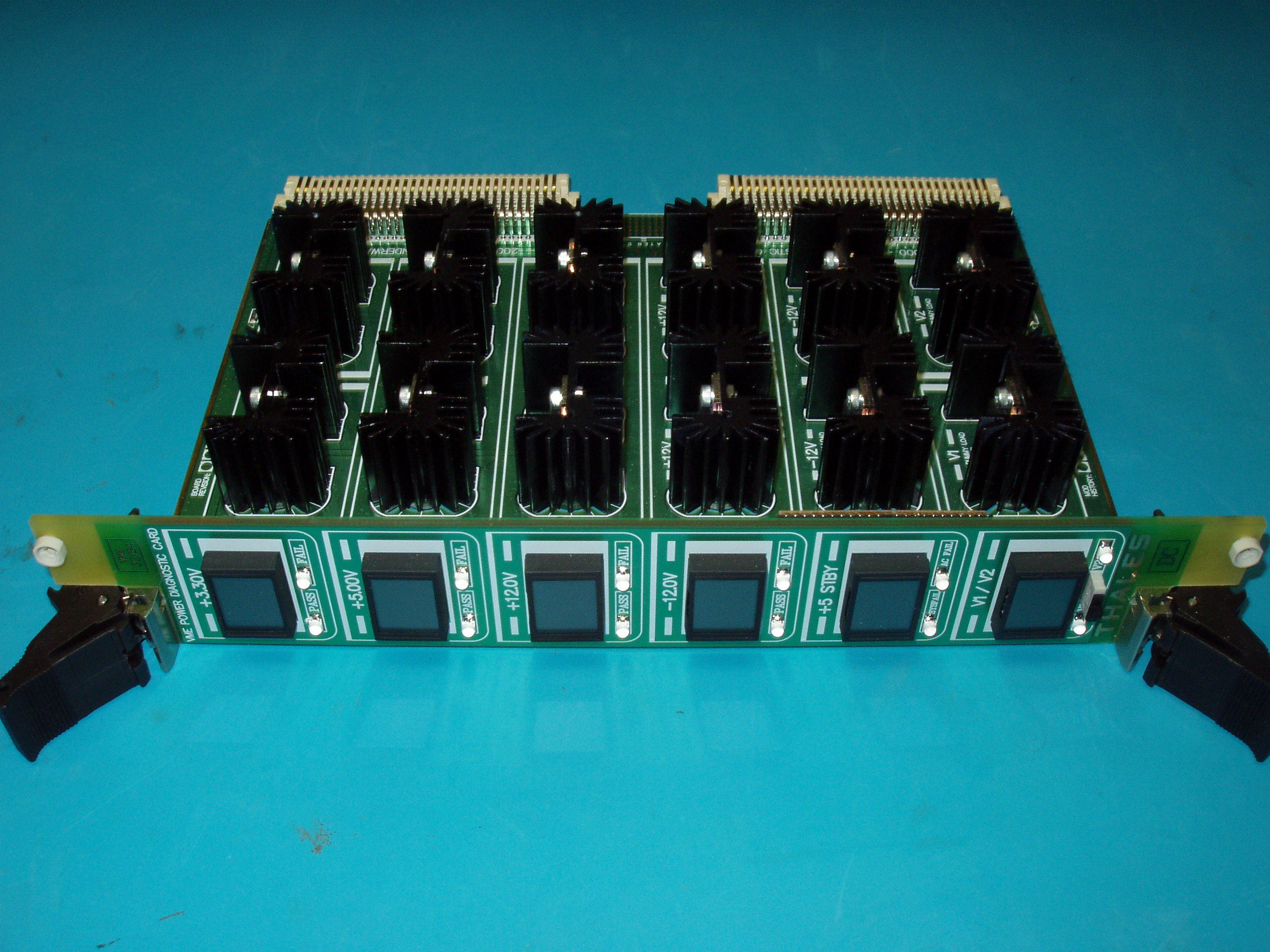

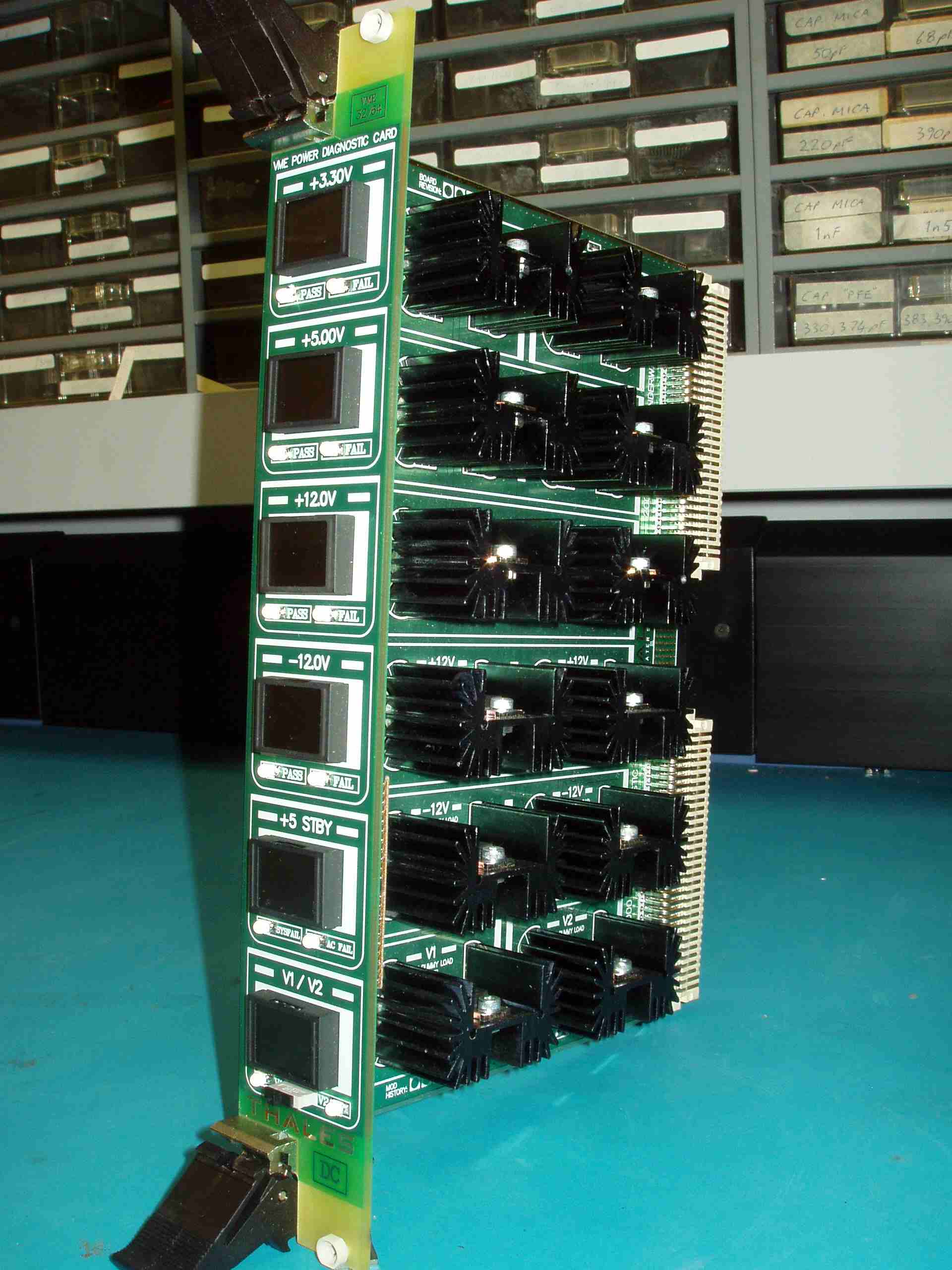

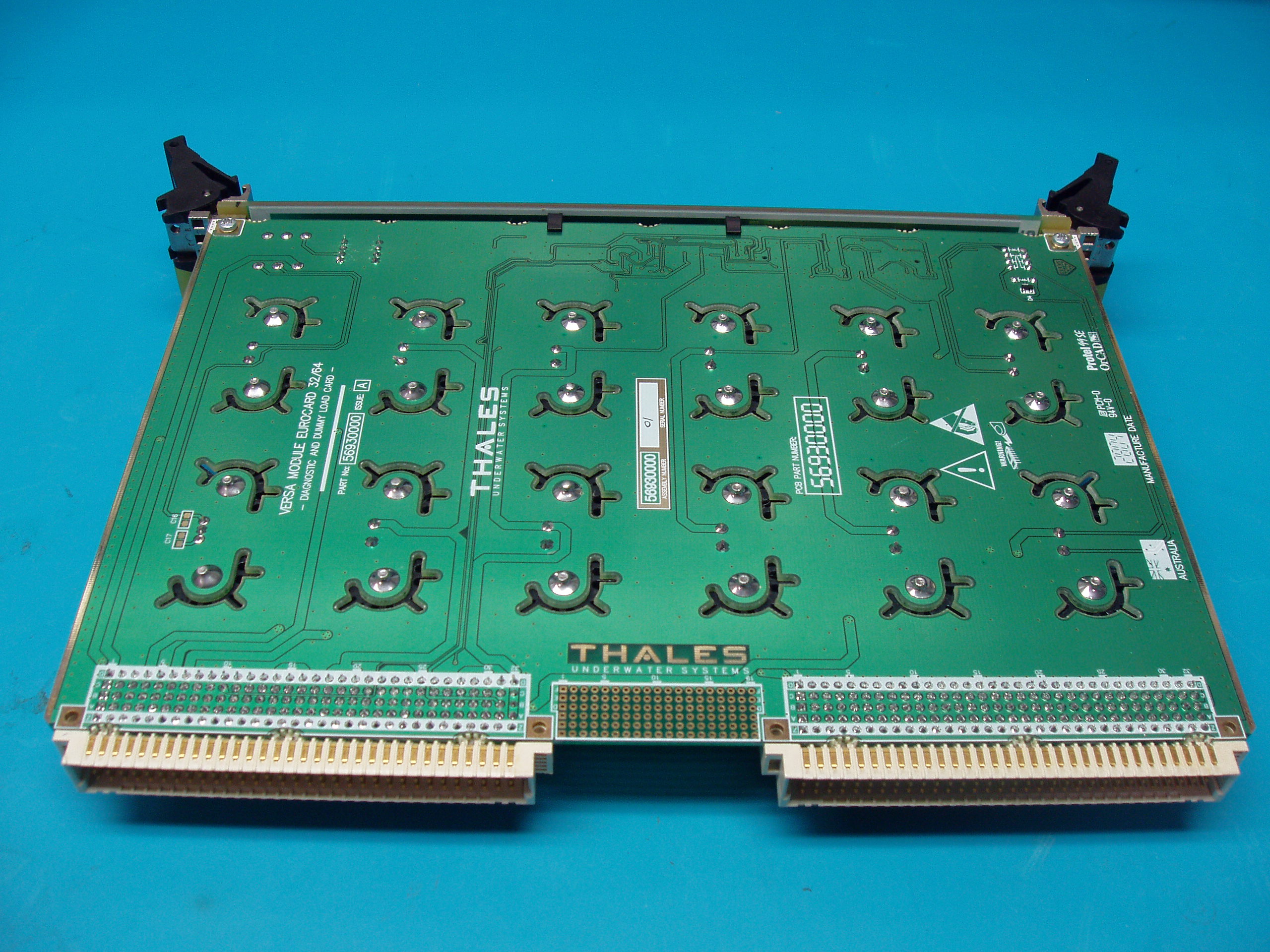

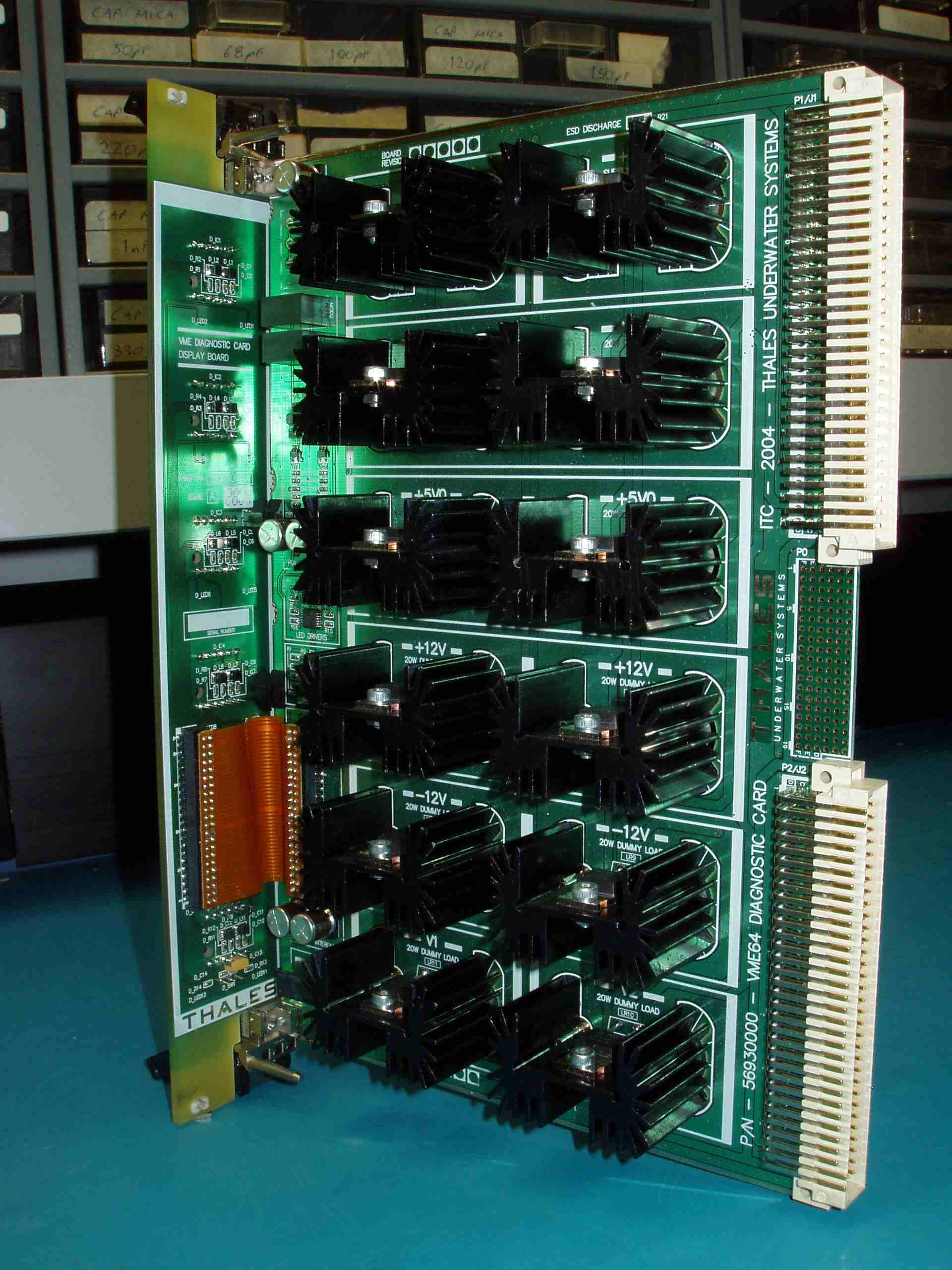

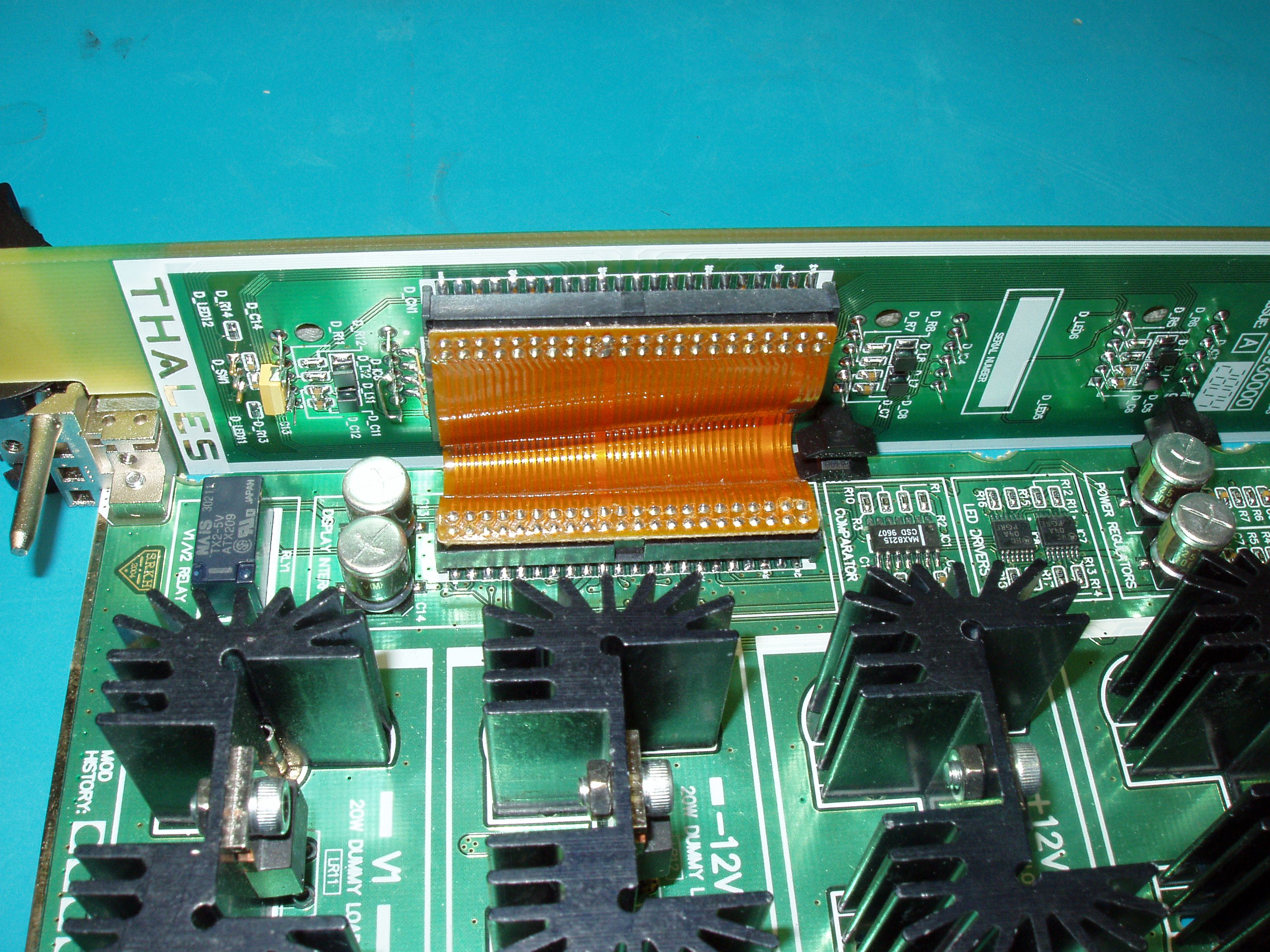

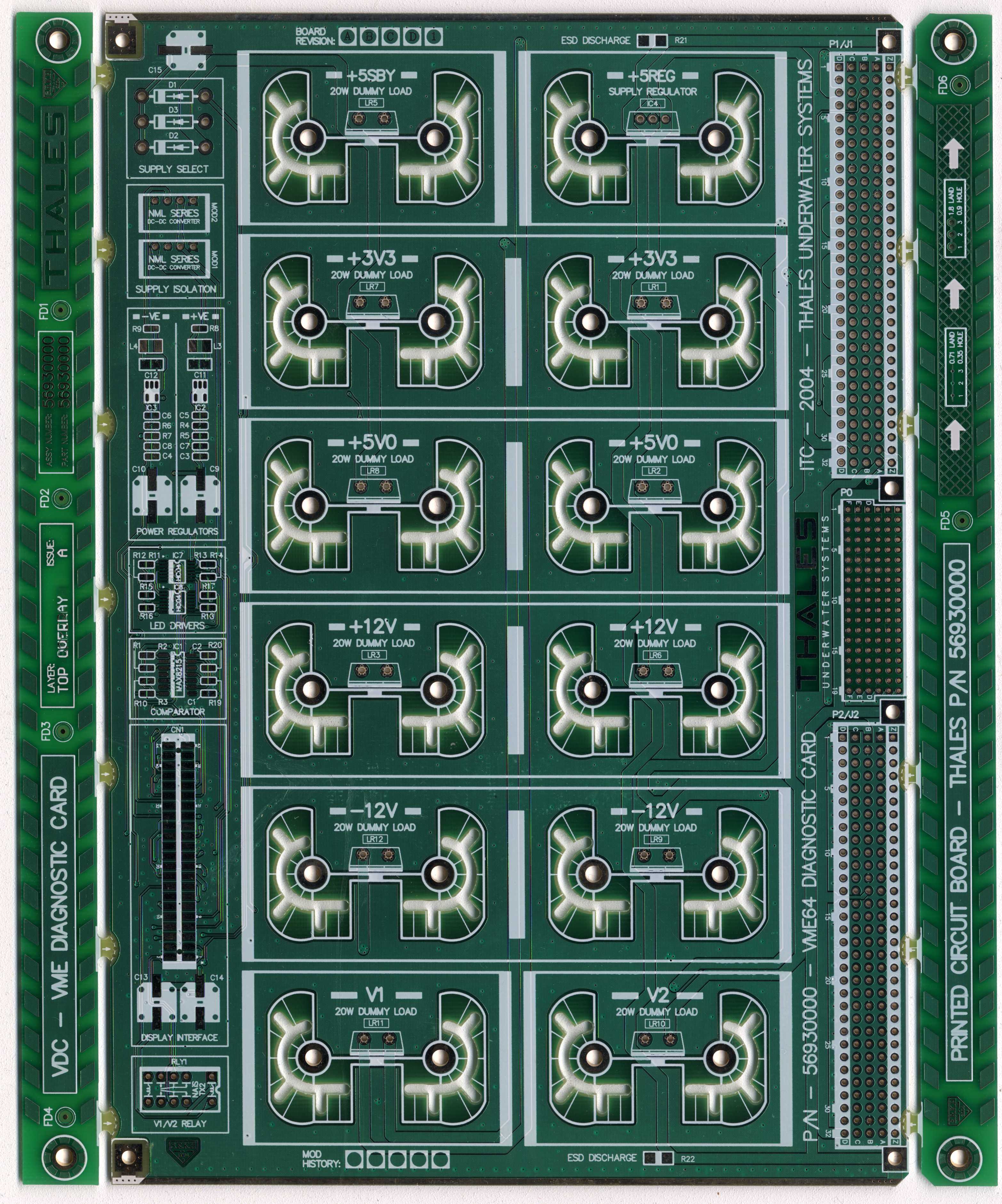

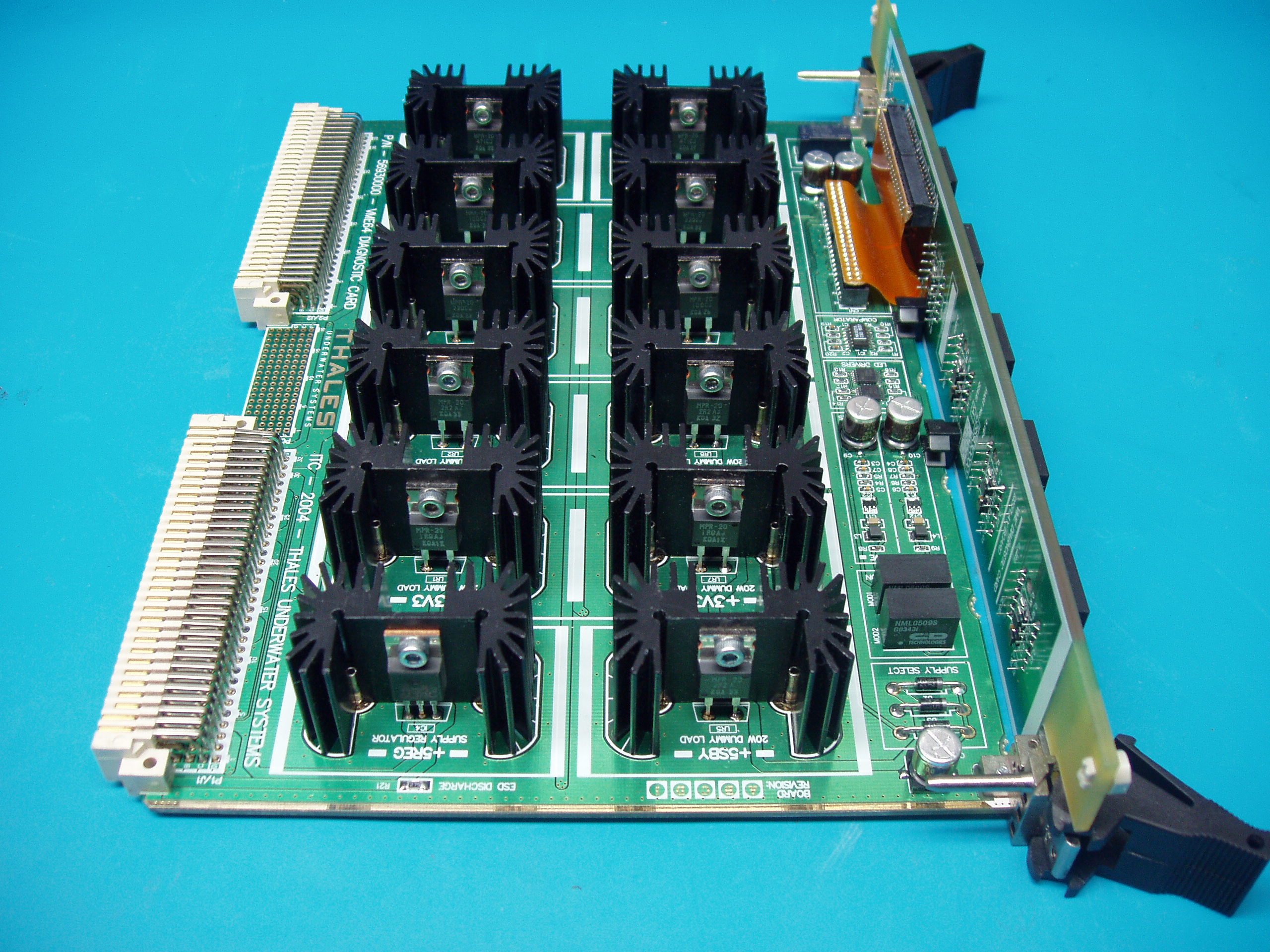

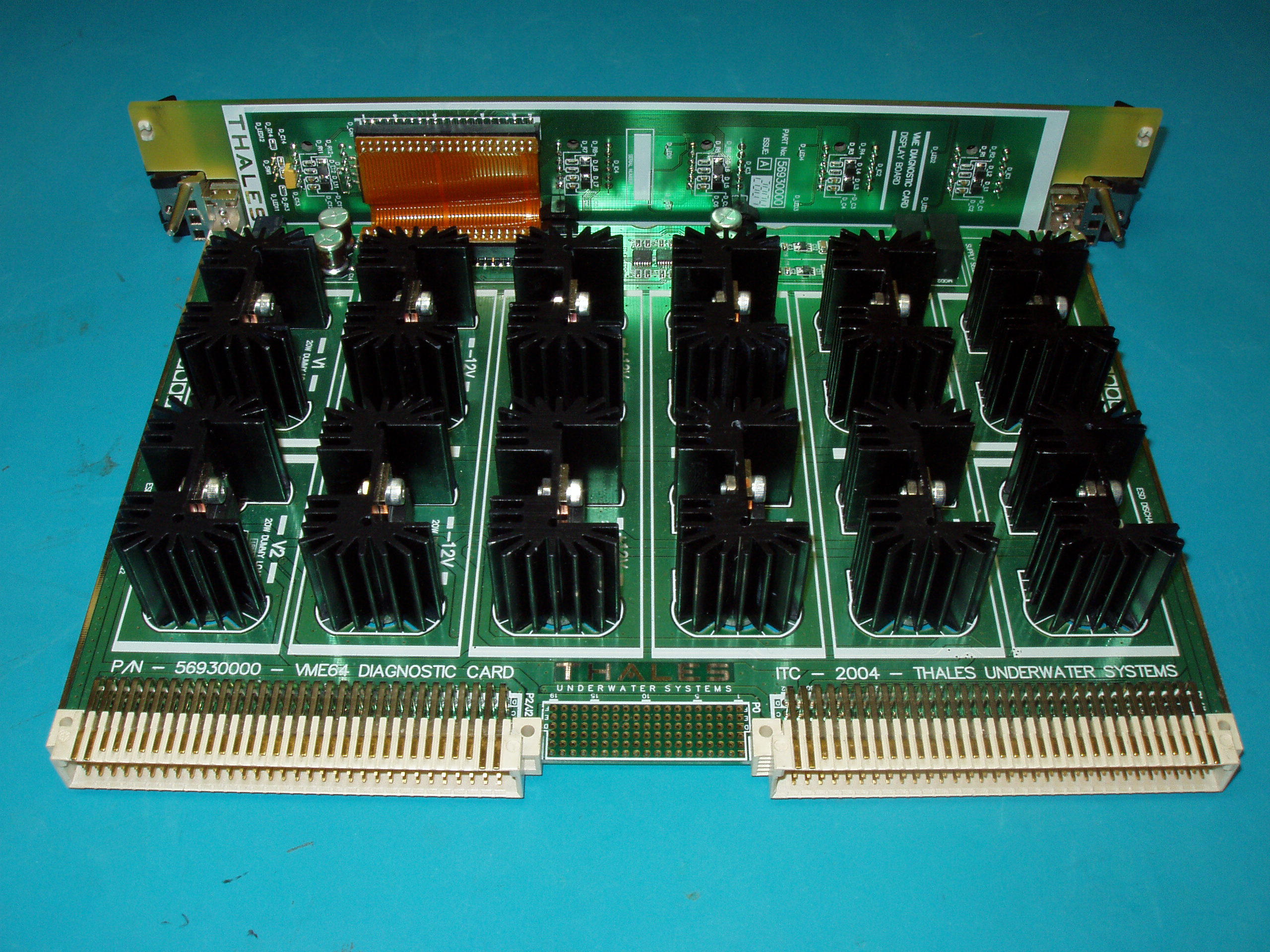

VME/VME64 Power Diag Board

Assembly ID

5693XXXX

Company

THALES

Function

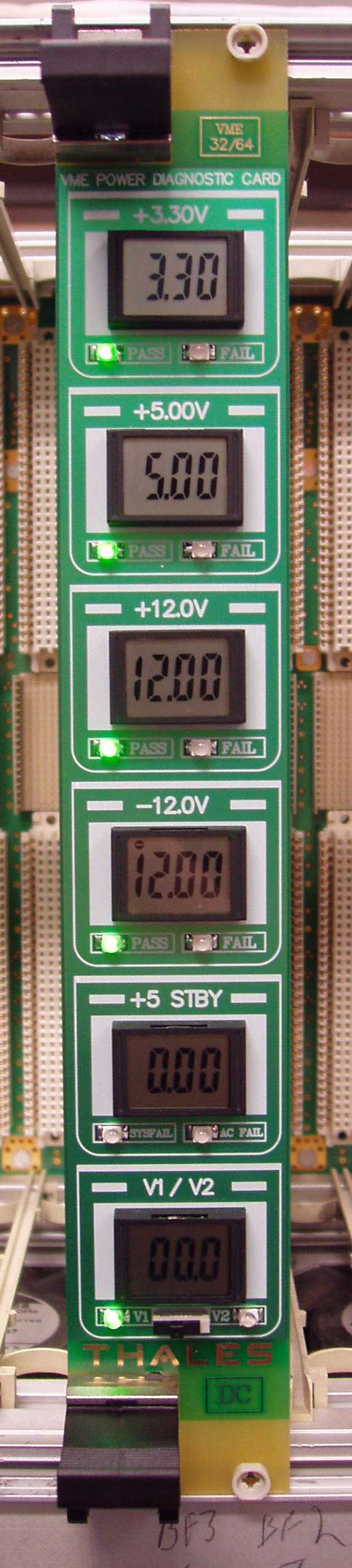

VME64 Power Bus Diagnostic Card

Primary Device

None (Discretes)

Technology

8/50 track/8 space/30 via

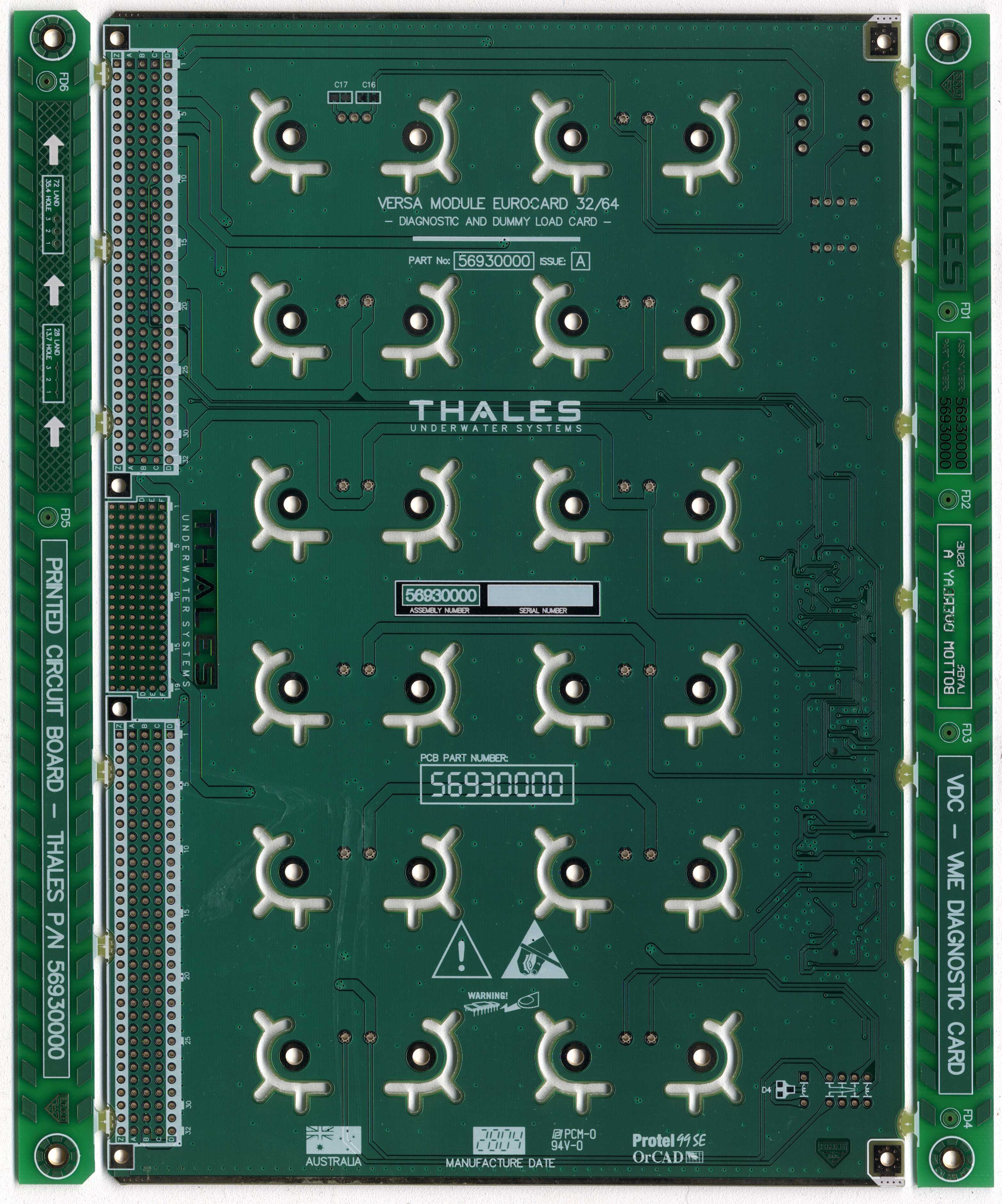

PCB Build Specification

2 Layer, 1oz, MASK, ENIG, FR408

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

PCBCo. (SINGAPORE)

CAD Application

Protel 99SE

Prototype Availability

No
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2004


manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
