Date of Design

2005

Product

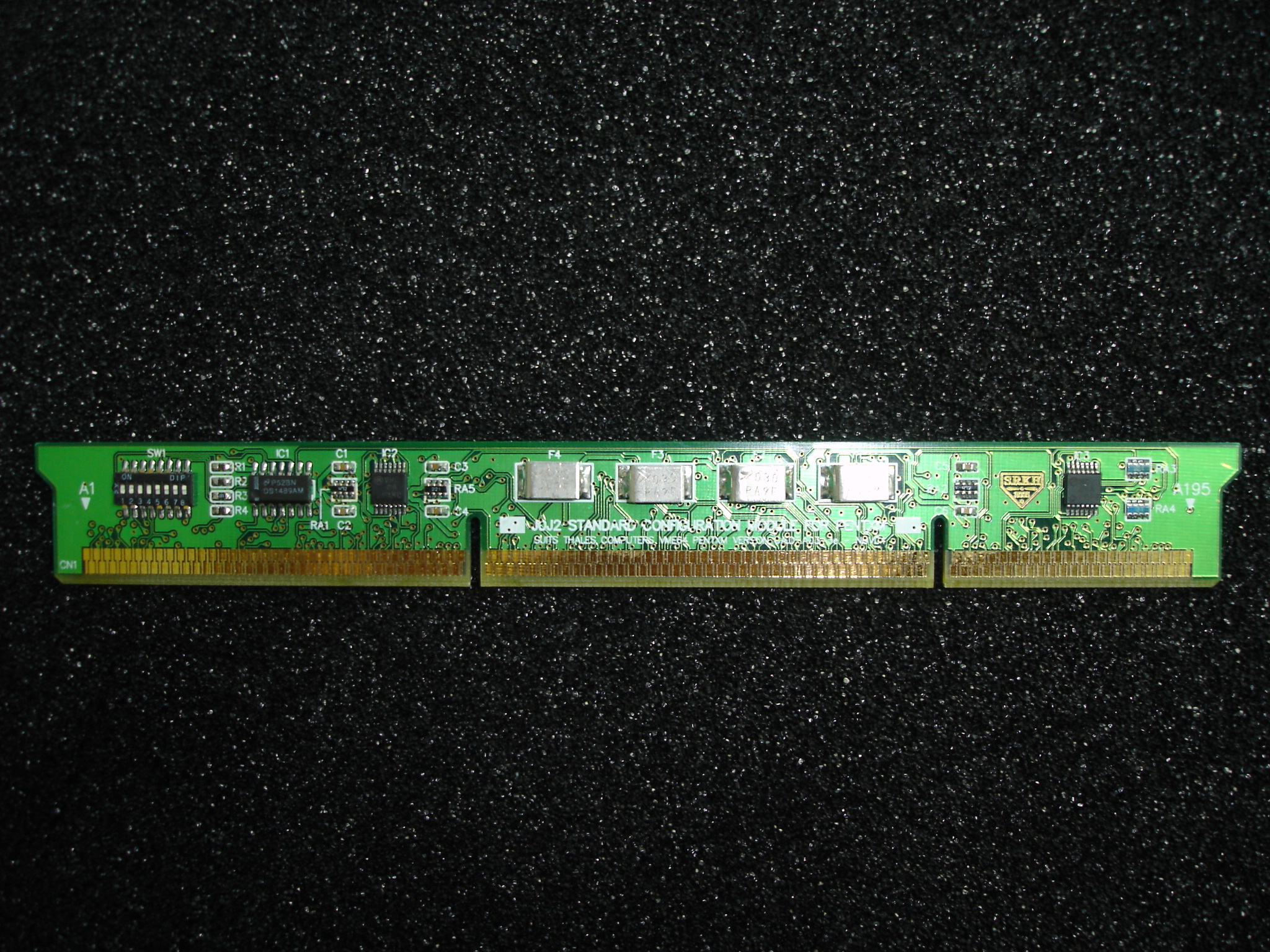

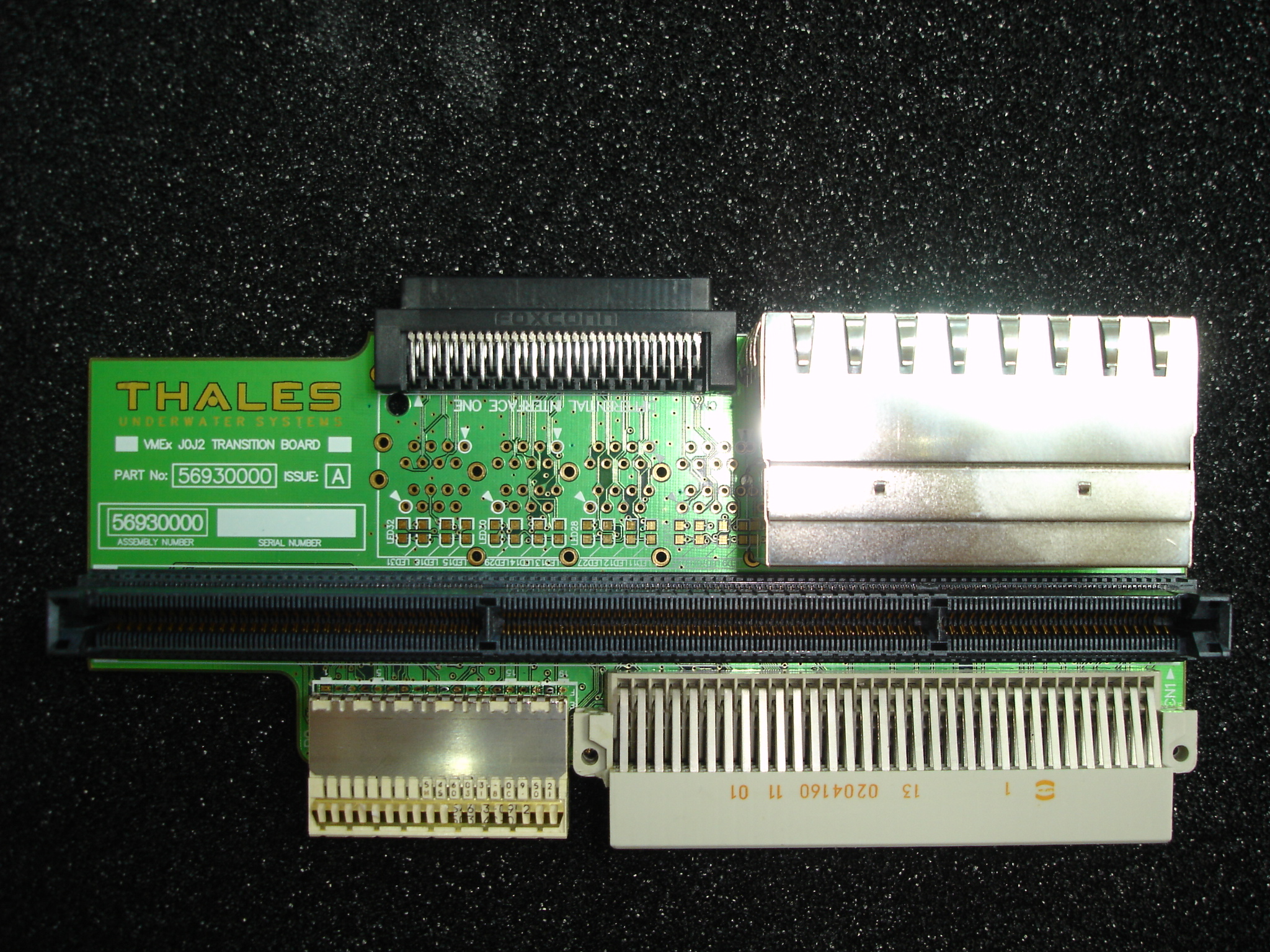

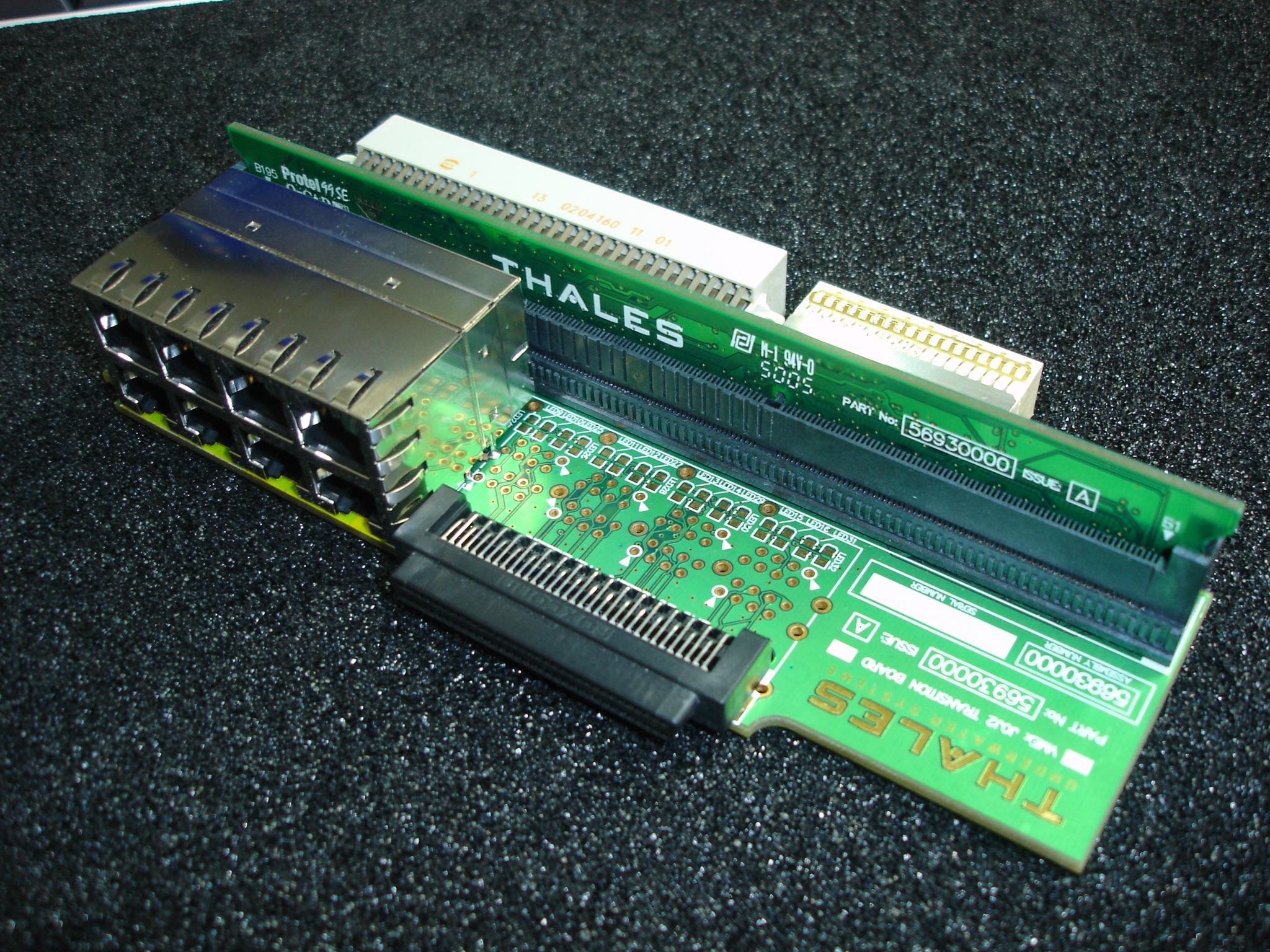

J0J2 Transition Board

Assembly ID

5693XXXX

Company

THALES

Function

VME64 Backplane Peripheral IO

Primary Device

None (Mechanical IO)

Technology

8 track/8 space/30 via

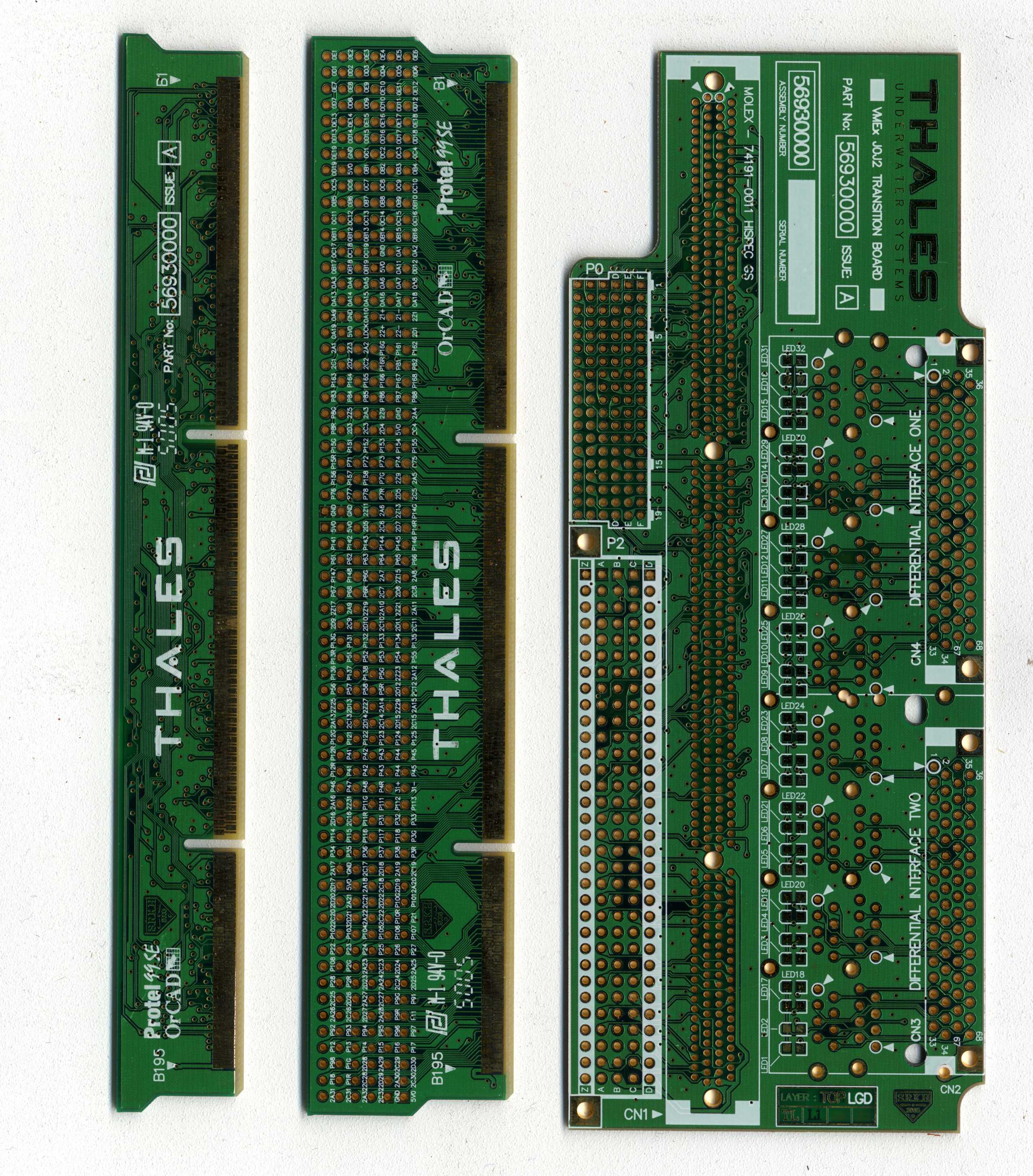

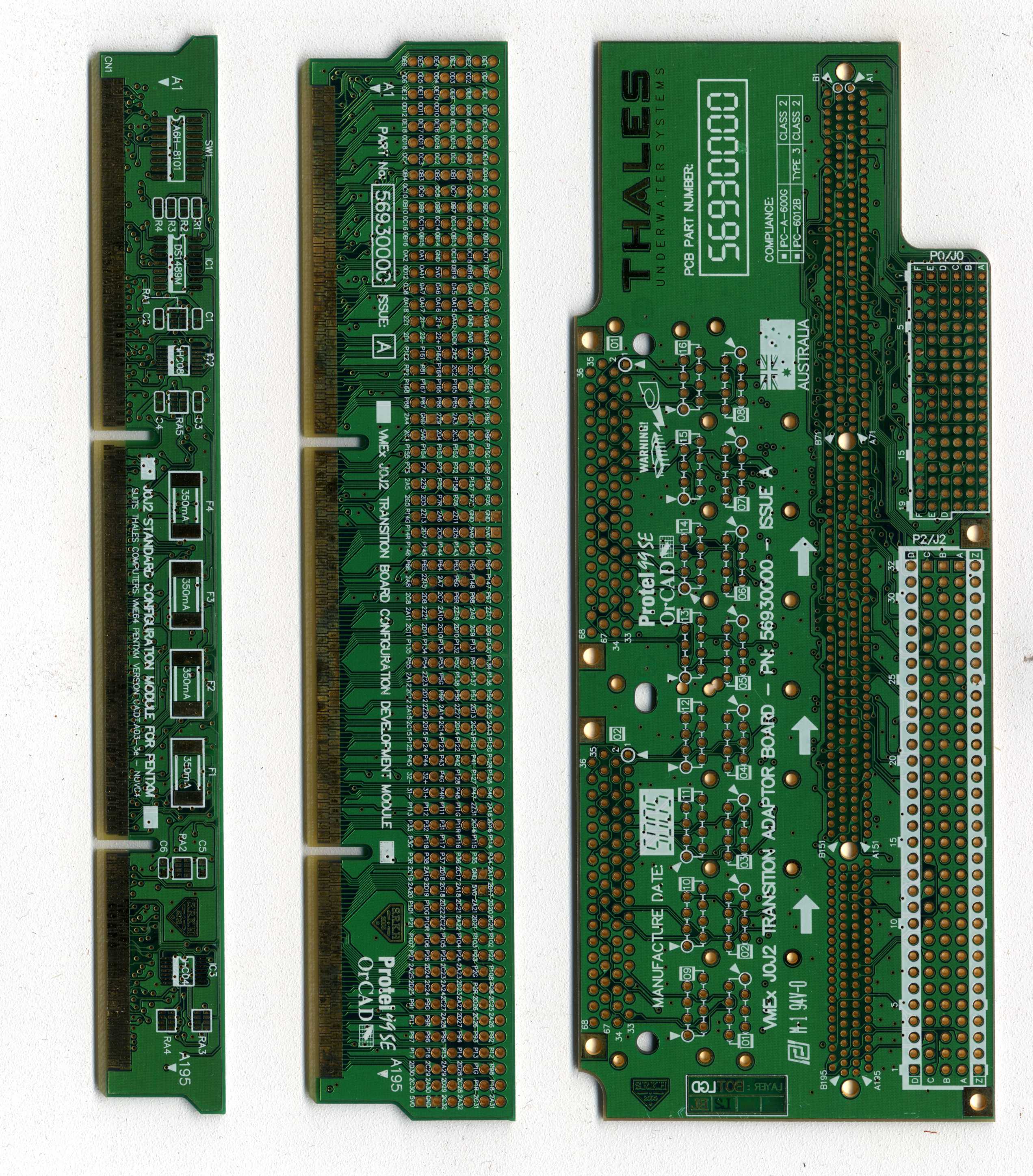

PCB Build Specification

4 Layer, 1oz, MASK, HG, FR408

Design Compliance

IPC-A-600/IPC-6012/IPC-610

Manufacturer

PCBCo. (SINGAPORE)

CAD Application

Protel 99SE

Prototype Availability

Yes
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2005

manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
