Date of Design

2005

Product

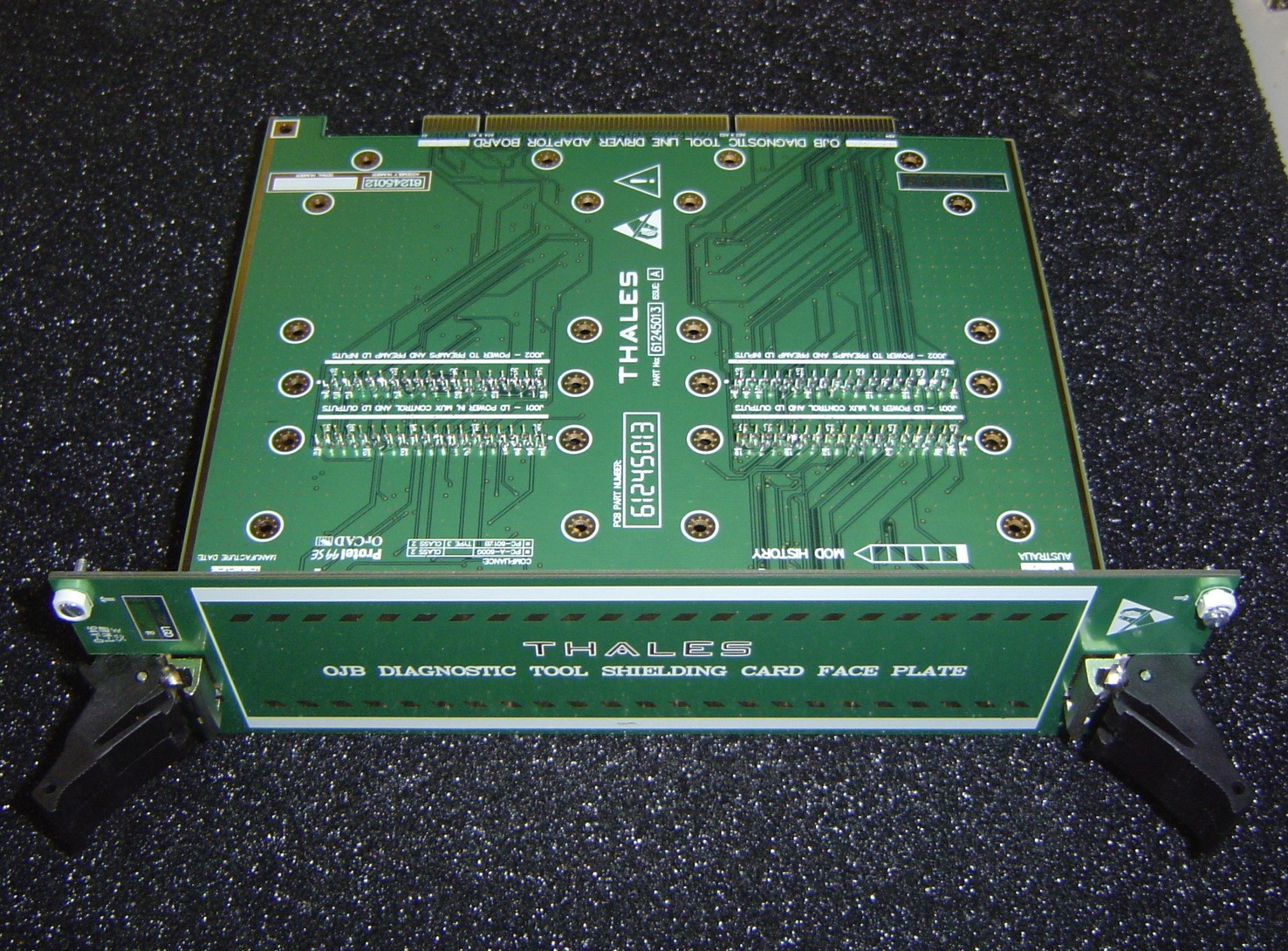

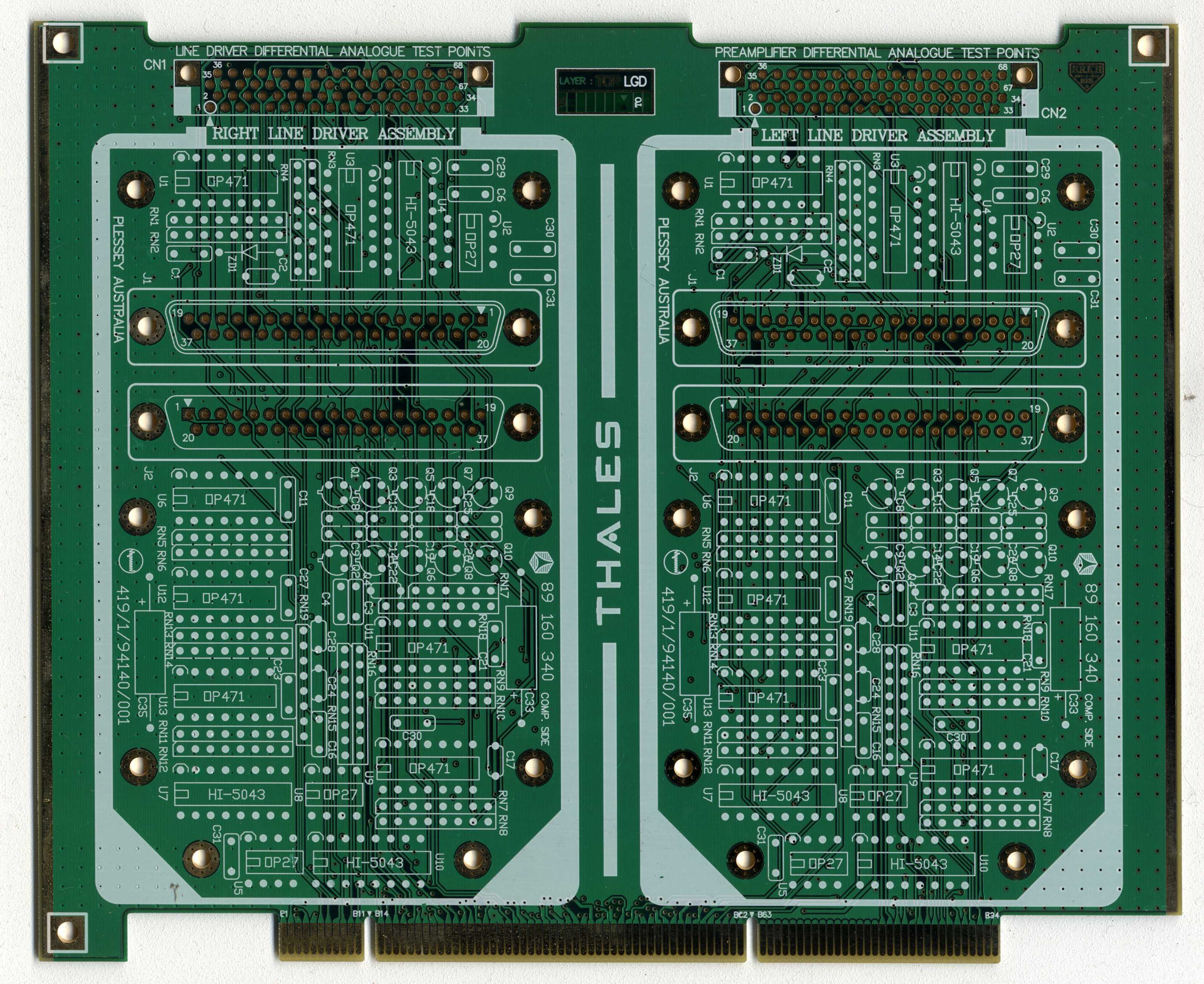

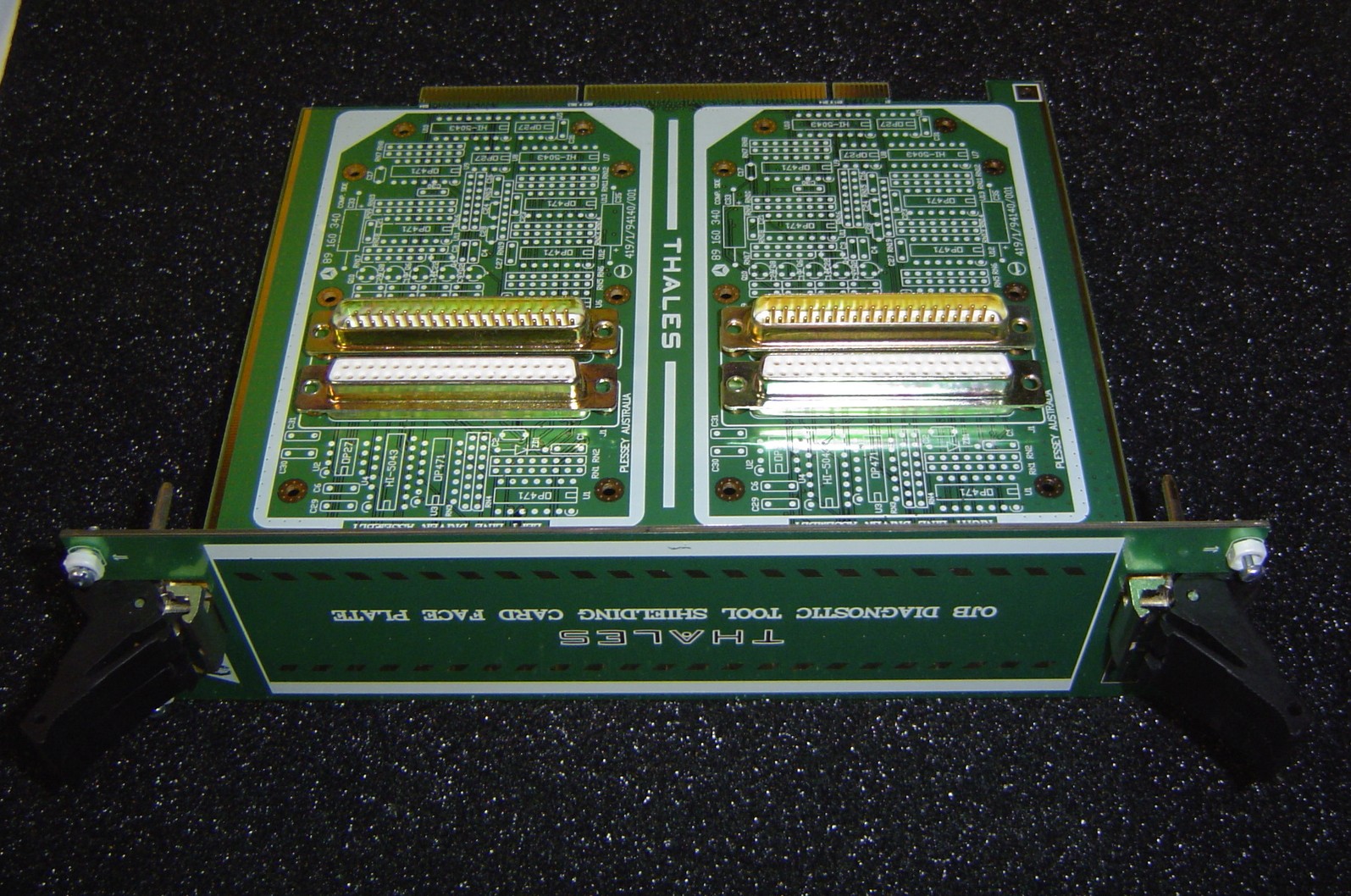

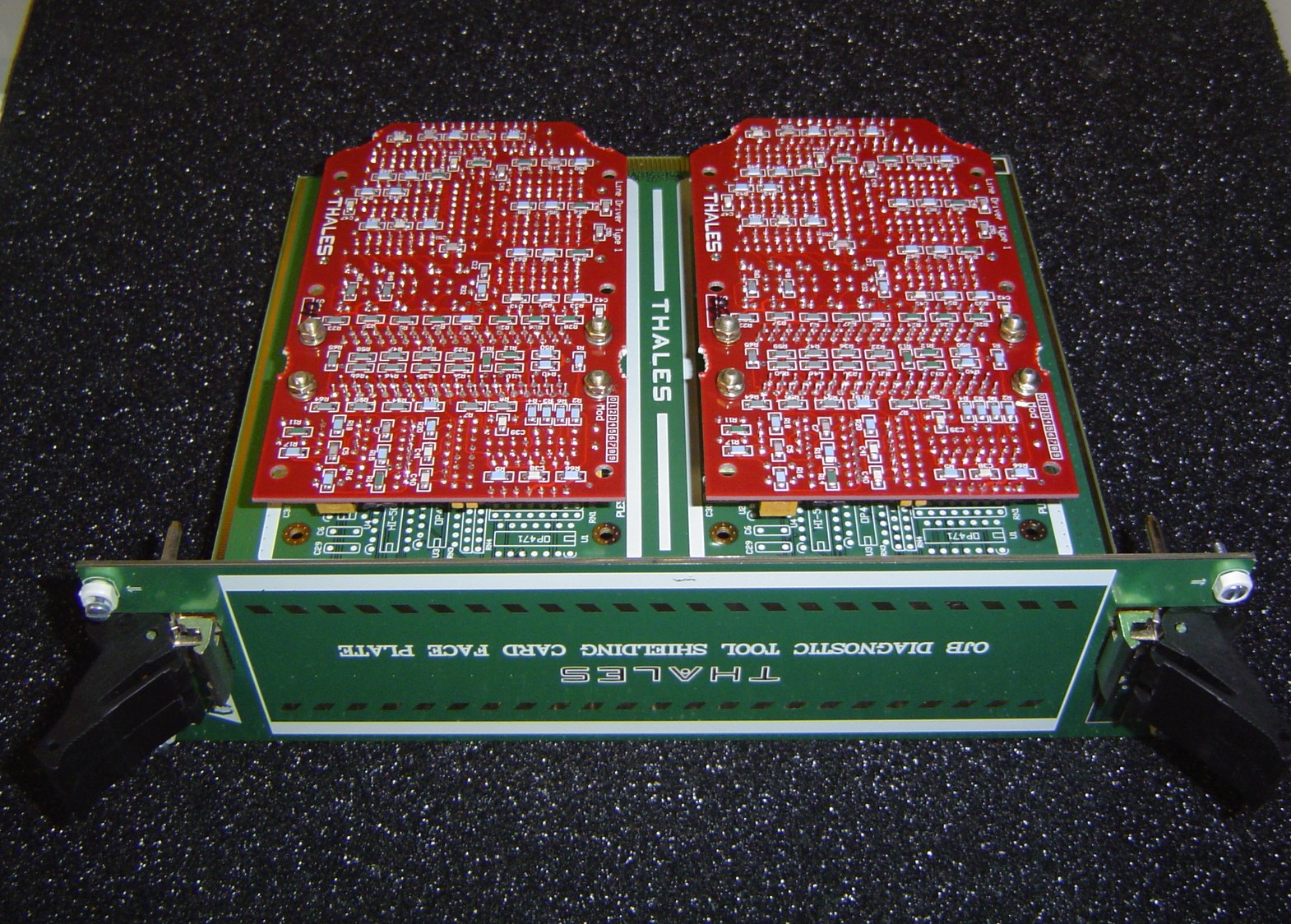

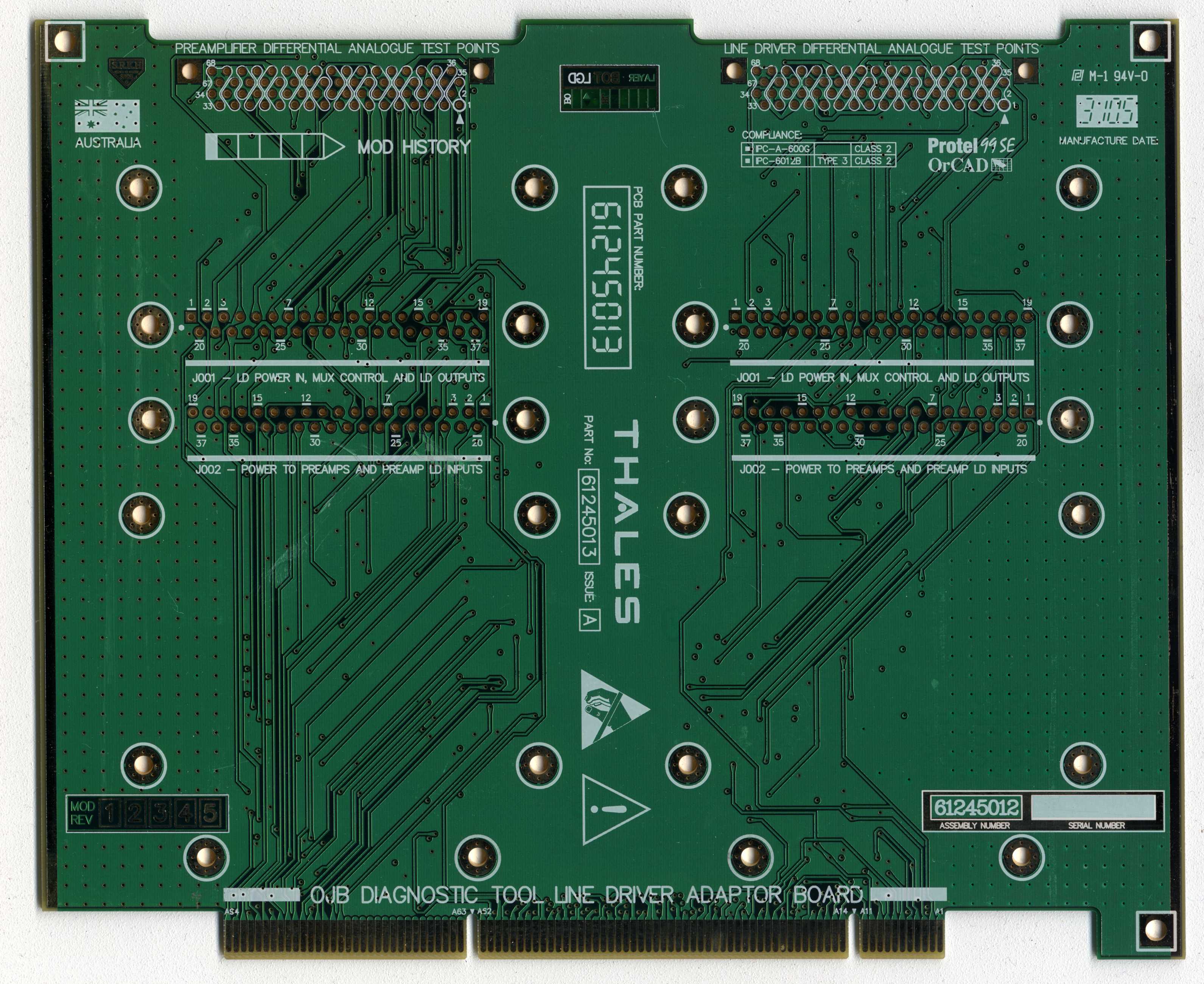

Line Driver Adaptor

Assembly ID

61245013

Company

THALES

Function

ATE Line Driver Interface

Primary Device

None (Not Stated)

Technology

5 track/5 space/26 via

PCB Build Specification

6 Layer, 1oz, MASK, HG, FR408

Design Compliance

IPC-A-600/IPC-6012

Manufacturer

PCBCo. (SINGAPORE)

CAD Application

Protel 99SE

Prototype Availability

No
The following designs comprise some of the electronic solutions I have created, implemented, prototyped and prepared for
Electronic designs by Steven Howell
         2005

manufacture. The index includes lab prototypes as well as final production units and examples of their application.


There are no classified military designs in this list.
