Date of Design
2015
Product

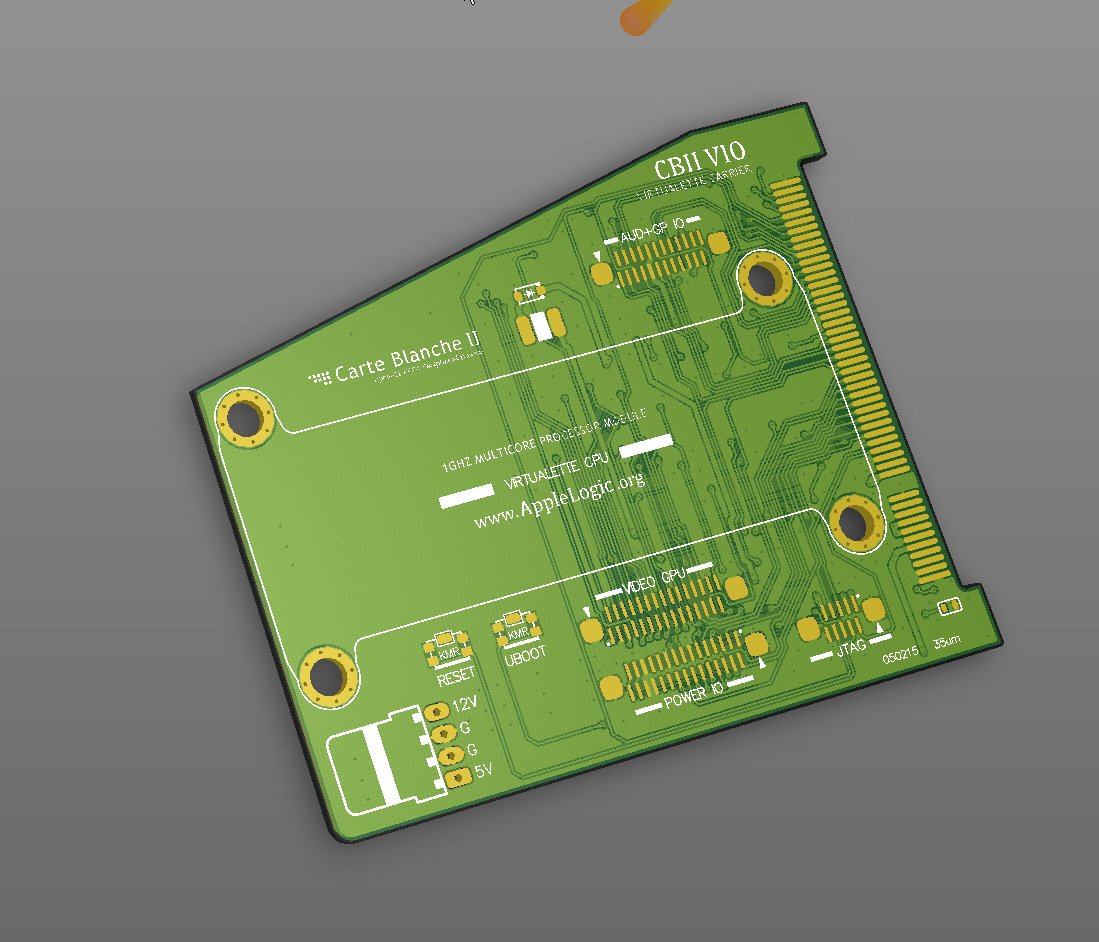

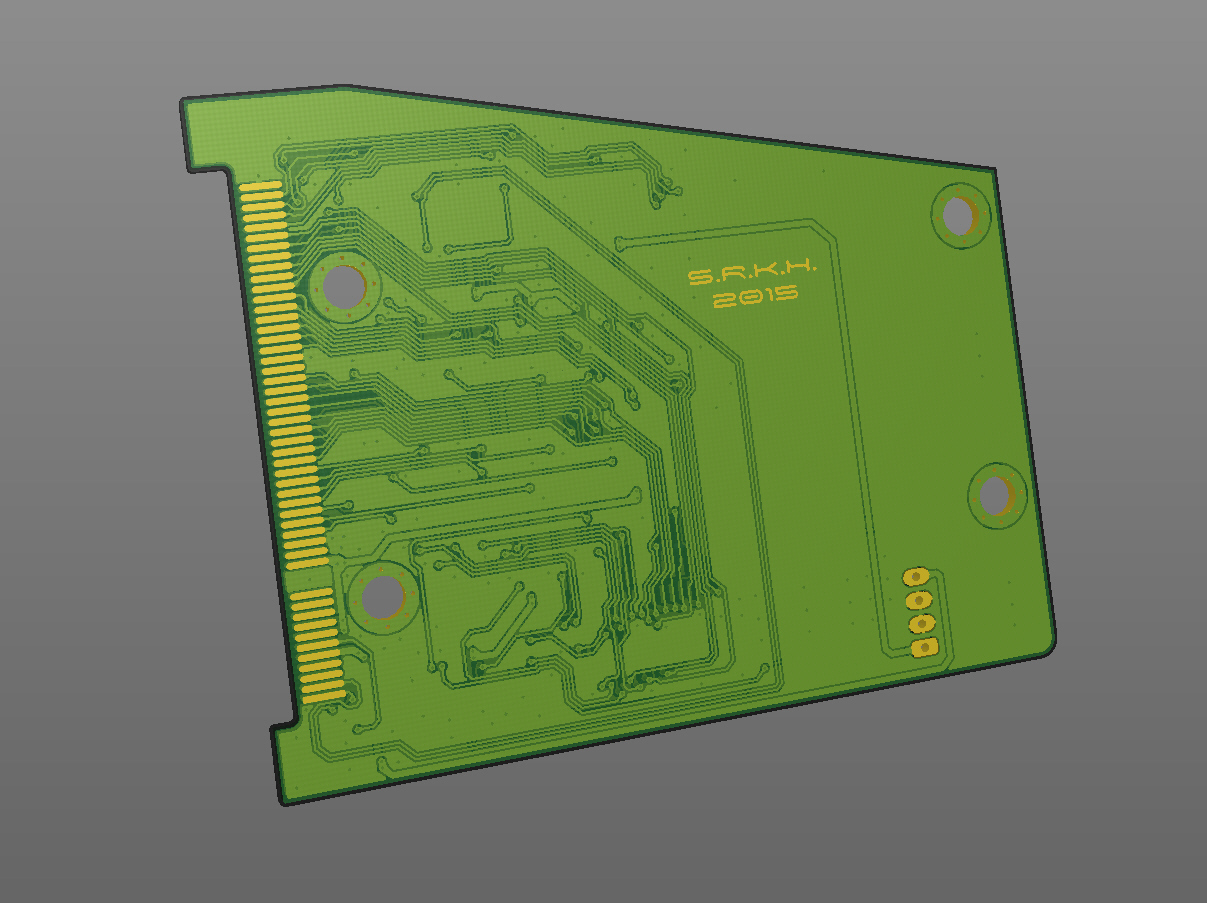

CBII Virtualette Carrier
Assembly ID
CBII VIO
Company
Applelogic
Function
CBII Carrier board for Virtualette
Primary Device
XC3S400AN
Technology
5 track/5 space/26 via
PCB Build Specification
4 Layer, 1oz, MASK, ENIG, FR4
Design Compliance
IPC-A-600/IPC-6012/IPC-610
Contract Manufacturer
General Circuits (CHINA)
CAD Application
Altium Designer R12
Prototype Availability
Yes
Downloads
None
